Multifunctional Paper Plastic Blister Packaging Machine for Cutlery Stationery and Tableware
- 30 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Super Glue Flat-plate Soft Plastic Blister Packing Machine (with CE certification)
- Flat Plate Daily Necessities PVC Paper Clamshell Blister Packing Machine Wholesale
- High Performance Automatic Blister Packaging Machine for Auto Parts and Hardware
- Hot Sale CE Approved China Manufactuere PVC and Paper Card Blister Packing Machine for Nipple
- High Frequency Clamshell Blister Pack Hardware Blister Automatic Packing Machine
- AUTO Toothbrush/Scissors/Battery/Solid Gum Paper-Plastic Blister Packing Machine Wholesale
Product Details
Condition: | New | Application: | Chemical, Commodity, Other, Medical, Chemical, Commodity, Machinery & Hardware, Medical | Automatic Grade: | Automatic |
Driven Type: | Pneumatic | Voltage: | 220v 380v | Power: | 1.5kw |
Place of Origin: | Shanghai, China | Brand Name: | SH (Paper Plastic Blister Packaging Machine) | Model Number: | SH-500D (Paper Plastic Blister Packaging Machine) |
Dimension(L*W*H): | 5800*1050*1850mm(L*W*H) | Weight: | 2100kg | Certification: | CE & SGS & ISO9001 |
Warranty: | 1 year( lifelong service) | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard export wooden case package
(Paper Plastic Blister Packaging Machine)
Product Description

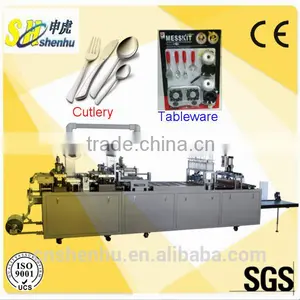

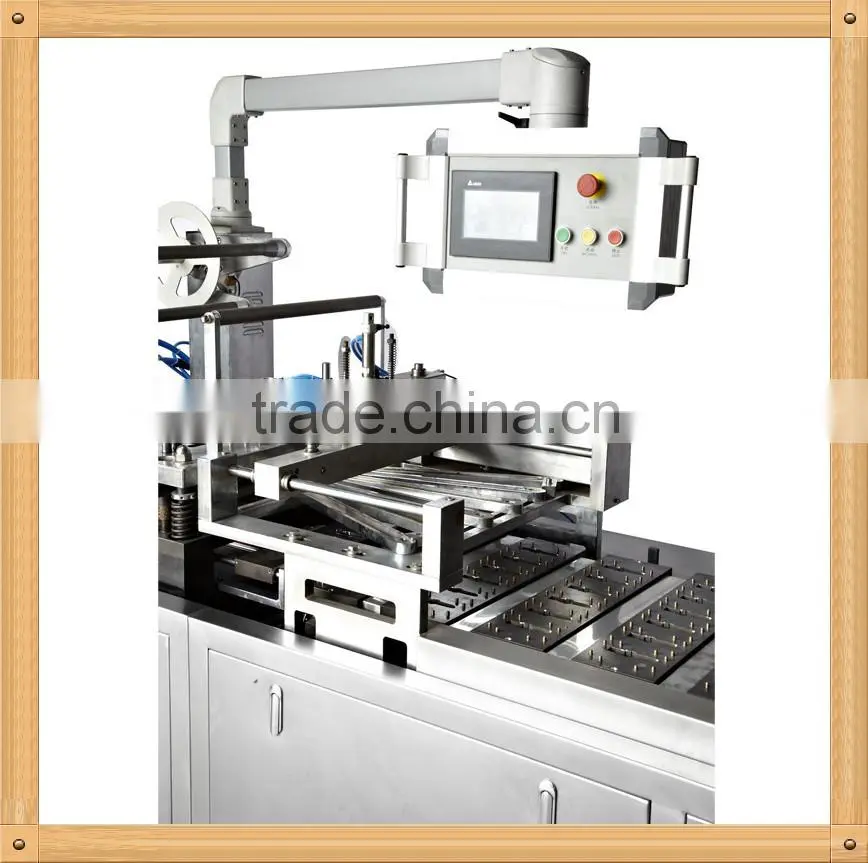

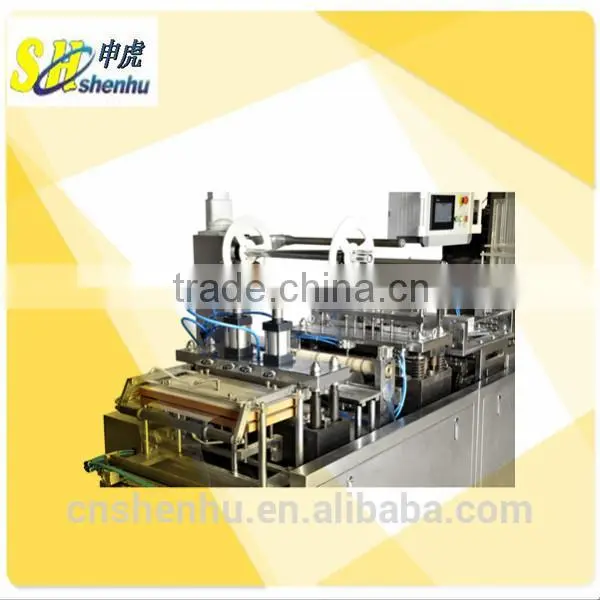

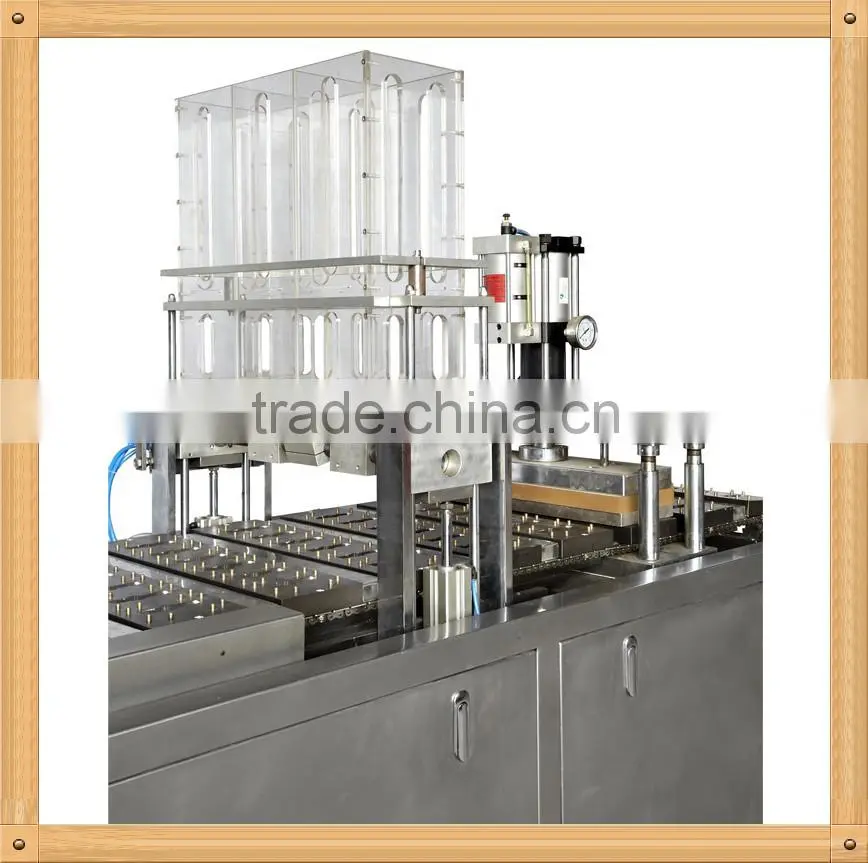

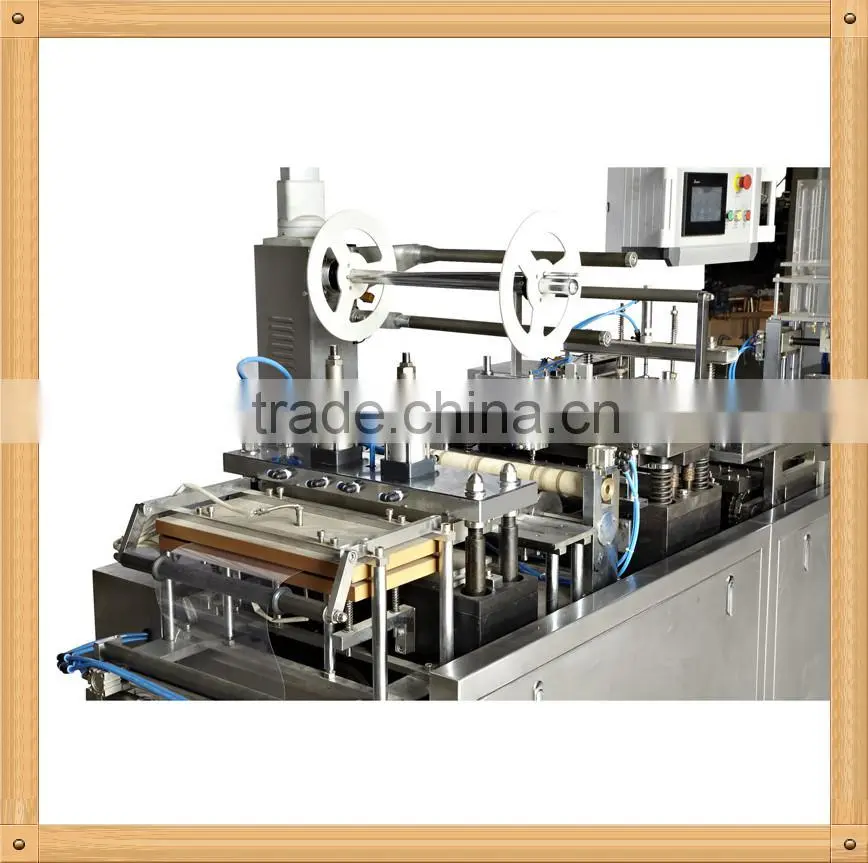

Multifunctional Paper Plastic Blister Packaging Machine for Cutlery Stationery and Tableware
1. Brief Introduction
SH-500D Multifunctional Paper Plastic Blister Packaging Machine for Cutlery Stationery and Tableware has the feature of advanced technology, complete function, reasonable working process, easy operation, and convenient maintenance. The whole working process is full automatic, which can really save you a lot of labor cost. Moreover, the operation is very easy, you only need one staff to operate the PLC.
This machine is suitable for the blister card packing of battery, stationery, food, medical equipment, toys,hardware, electronics, auto parts, daily use product, cosmetic etc, such as the injector, solid gum, toy car,scissor, flashlight, battery, spark plug,lip stick, hook, shaver, pencil etc.
2. Parameters of the Machine
Blister Packing Machine | Paper Plastic Blister Packaging Machine |
Model | SH-500D Paper Plastic Blister Packaging Machine |
Maximum travel range | 40-200mm |
Maximum forming area | 480×200mm |
Standard forming depth | 40mm( can be customized) |
Cutting frequency(times/min) | 12-25 times/ minute |
Air pressure | 0.5-0.8Mpa |
Air flow | ≥0.5m3/min |
Total power | 380V 50Hz 10.5kW |
Main motor power | 1.5kW |
Overall dimension | 5800*1050*1850mm(L*W*H) |
Machine weight | 2100kg |
3. Machine Working Procedure

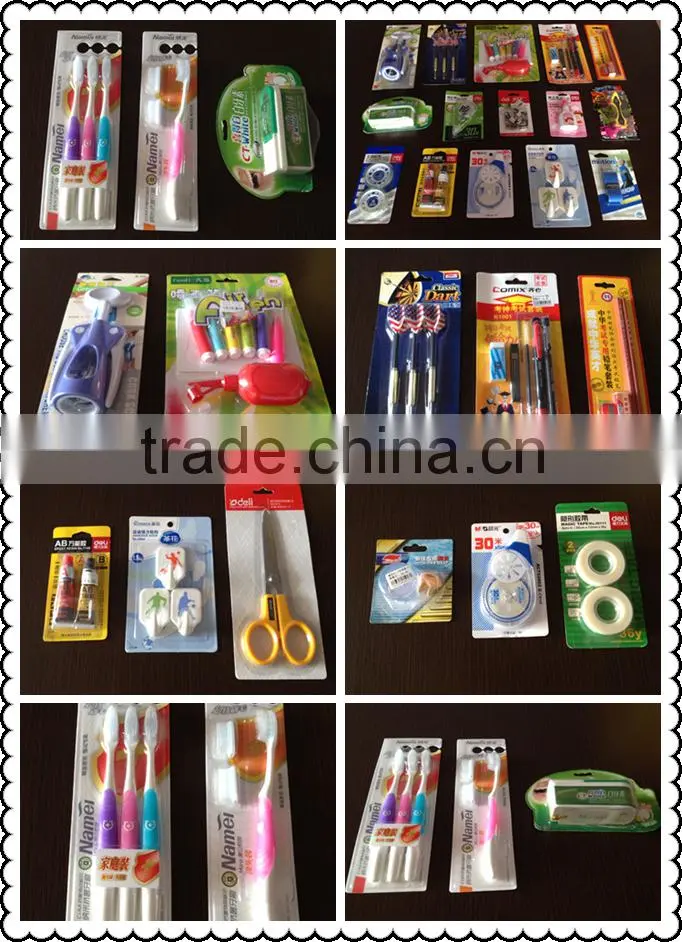

4. Samples

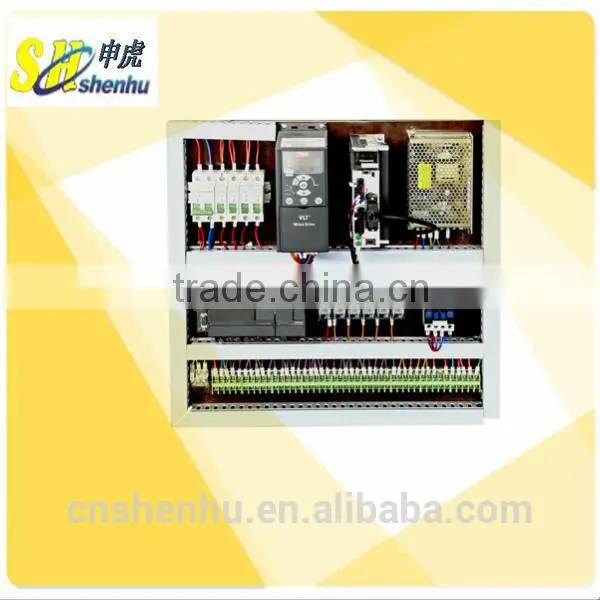

5. Electrical configuration list for SH-500D Automatic Blister Card Packing Machine
No | Name | Model | Unit | Qty | Origin |
1 |
Servo motor | MHMD082P1U | set |
3 |
Panasonic |
MCDDT3520 | |||||
2 |
Reducer | 90-WPE-010 | PCS | 1 |
Panasonic |
90-PLE-010 | PCS | 1 | |||
3 | Touch screen | NP5-SQ000B | PCS | 1 | OMRON |
4 | Encoder | E6B2-CWZ6C 1000 wire | PCS | 1 | OMRON |
5 | Inverter | 3G3JZ-A4015 | PCS | 1 | OMRON |
6 | PLC | CP1H-X40DT-D | PCS | 1 | OMRON |
7 | PLC extension | CP1W-CIF11 | PCS | 1 | OMRON |
8 | PLC extension | CP1W-16ET | PCS | 1 | OMRON |
9 | Temperature module | CP1W-TS002 | PCS | 1 | OMRON |
10 | Switch power | S8JC-Z10024C | PCS | 1 | OMRON |
11 | Photoelectrical switch | E3Z-T61A 2M | PCS | 6 | OMRON |
12 | Intermediate relay | LY2NJ DC24V | PCS | 3 | OMRON |
13 | Intermediate relay | G6B-4BND DC24V | PCS | 4 | OMRON |
14 | Approximate switch | TL-Q5MC1-2 | PCS | 5 | OMRON |
15 | Solid state relay | G3NB-240B DC5-24V | PCS | 3 | OMRON |
16 | AC contactor | 3TS3411 220V | PCS | 1 | Siemens |
17 | Air switch | 5SJ6225-7CC | PCS | 1 | Siemens |
18 | Air switch | 5SJ6125-7CC | PCS | 1 | Siemens |
19 | Air switch | 5SJ6332 | PCS | 8 | Siemens |
20 | Button | PB1M-10 green | PCS | 3 | Siemens |
21 | Button | PB1M-01ZR red | PCS | 1 | Siemens |

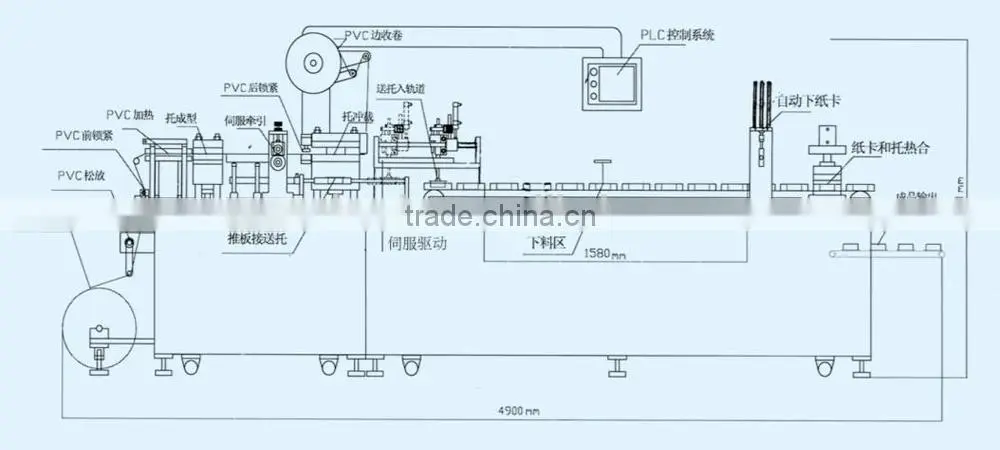

6. Draft of Machine
6. Hot Sale Products
1.Packing Material: Wooden Cases
2.Shipping Time: Within 30 days after deposit was paid
1. Our Customers
2. Our Partners
1. How About the Installation & Adjustment?
After the equipment arrived at the customer’s site, customers are responsible for unpacking and arranging the equipment in reference to the placement drawing or under our install-adjust technicians’ guidance. Costs of our staffs are decided at last.
2. Are There Training for Customers?
We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.
3. How about the "Quality Assurance"
We are responsible for the faults and damages of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc.The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
4.How about the Warranty?
We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.
5. How to Contact Us?

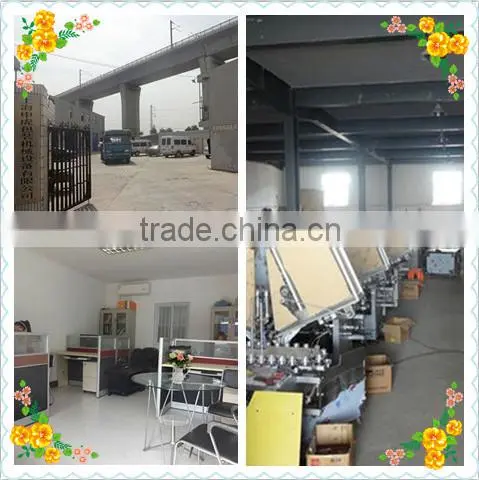

Company Profile
Profile
Incorporated in the year 2008, Shanghai Shenhu Packaging Machinery Equipment Co.,Ldt is a small and medium size manufacturer and exporter with a wide range of precision machineries. Our range of products includes tube(cream) filling machines, bottle(liquid) filling machines, cup filling machines,food packing machines, carton machine, vacuum packing machine, sealers and cappers etc.
Our company has achieved notable growth and has become a progressive supplier of new generation packaging machines in China. Steered by a futuristic vision, we invest judiciously in building resources and execute day to day business operations with higher level of professionalism and efficiency.
We are a market savvy company, with a customeroriented quality deliverance approach that guides us to provide customized packaging machinery for specific packaging processes. Our prime focus is to create maximum utility and offer value for money to our customers. Hence, we make every effort to understand client's business and accordingly procure machines that meet their specific requirement to the fullest. Our prime motive is to play a crucial role in assisting clients to expand their business profits.
Combining years of experience, we have made a strong presence in domestic market. In our endeavor to achieve complete customer satisfaction, we offer our clients products and services of quality that is second to none in the industry.
Industries We Serve
Our machines meet with the packaging requirement of industries such as Pharmaceutical,Cosmetics,Chemicals,Food and so on,
Quality
We are a quality concerned company with a sole objective to deliver best packaging machinery.These are quality certified manufacturing units, which follow industry defined standards in product engineering. Thus, the different types of packaging machines offered by us are in accordance with international standards of functionality and reliability. The machines are supplied to clients along with the warranty papers and operational and maintenance manuals. We ensure to deliver machines in absolute factory condition.
After Sale Service
In order to keep our machines working smoothly, we offer timely after sales services. For our after sales services, we have a team of servicing engineers and experts. Our effective and prompt after sales service keeps our machines working effectively for longer duration.
Why Us
Some of the prime advantages that we have in the industry are Wide range of product catering to various industries Modernized infrastructure equipped with state of the art machinery Regular improvement in our product range High end client satisfaction Qualified and well trained team of workforce Widespread client are all over the world.
We are not the best,but we want to be better!
