6KV 1000KW MV VFD

Shanghai Renle Science & Technology Co., Ltd.
6KV 1000KW MV VFD thumbnail-1
6KV 1000KW MV VFD thumbnail-2
6KV 1000KW MV VFD thumbnail-3
6KV 1000KW MV VFD thumbnail-4
6KV 1000KW MV VFD thumbnail-5
6KV 1000KW MV VFD thumbnail-6
6KV 1000KW MV VFD photo-1

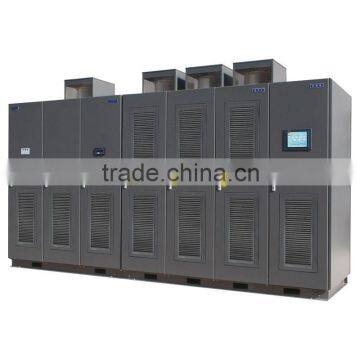

6KV 1000KW MV VFD photo-2
6KV 1000KW MV VFD photo-3
6KV 1000KW MV VFD photo-4
6KV 1000KW MV VFD photo-5
6KV 1000KW MV VFD photo-6
US$ 70,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
RENLE
Model Number:
RNHV-A6/1000
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name RENLE
Model Number RNHV-A6/1000
Output Power 801 - 1000KW
Output Type Triple
Size 4395*1244*2670
Weight 6000KG
Input Voltage 6KV
Output Voltage 6KV
Type Other, 3phase AC
Output Frequency 50Hz/60Hz
Output Current 120A
Product Details

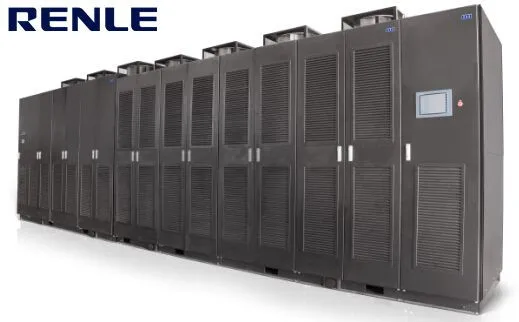

RNHV series Medium Voltage Voltage Variable Frequency Inverter

RNHV Series high voltage frequency inverter system is designed and manufactured by Shanghai RENLE Science & Technology Co., Ltd., which is of voltage type and the latest generation for direct high voltage output. It realizes perfect waveform output without raising voltage or any wave filter through way of multiply cell cascade connection to serve high-voltage asynchronous motor. RNHV-A series high voltage frequency inverter system is available to all kinds of industrial fields on the base of module design, multi-choice user port, friendly HMI and so on.
Product Introduction

Product Features

RNHV series high voltage frequency inverter system is one high voltage frequency-adjusting equipment with high reliability, high efficiency, high energy saving, high power with no pollution and so on. Power factor on the side of equipment is over 0.95 without power reactive compensation and the system efficiency is over 96%. There is no harmonic pollution. Its excellent waveform output could mitigate motor heating and additional stress to prolong the service life of motor.

Product Parameters
Name
Voltage
6KV/6.6KV/10KV/11KV±10%
Input
Frequency
50/60 Hz±5%
Power factor
> 0.95
Efficiency
> 96%
Output
Voltage
6 kV/6.6 kV/10 kV/11 kV
Frequency
0~60 Hz
Overload capacity
120% for 1 minute. Immediate protection starts after 150%
Control
Control mode
V/F, open-loop vector control, closed-loop vector control
Structure
Cabinet
IP31
Cooling method
Air cooling
Environment
Ambient temperature
Altitude
Max. 1000 m. The product must be derated at altitude higher than 1000 m.
Applicable standards
IEC61800-5-1:2007, 61800-4:2002, 61800-3:2004 etc

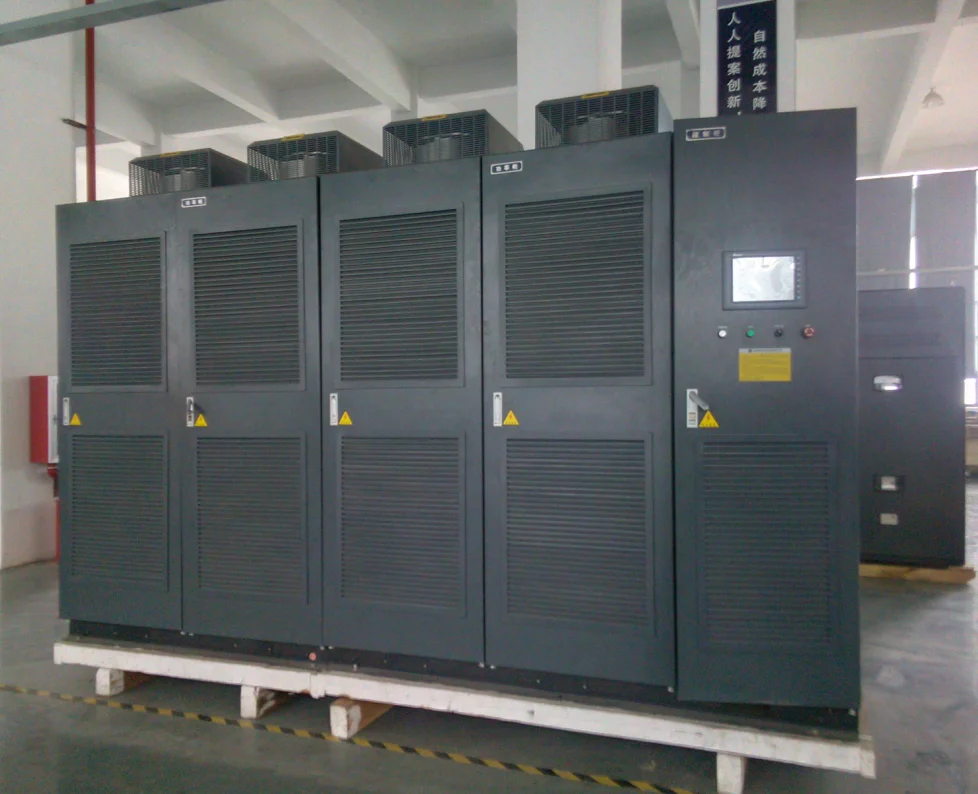

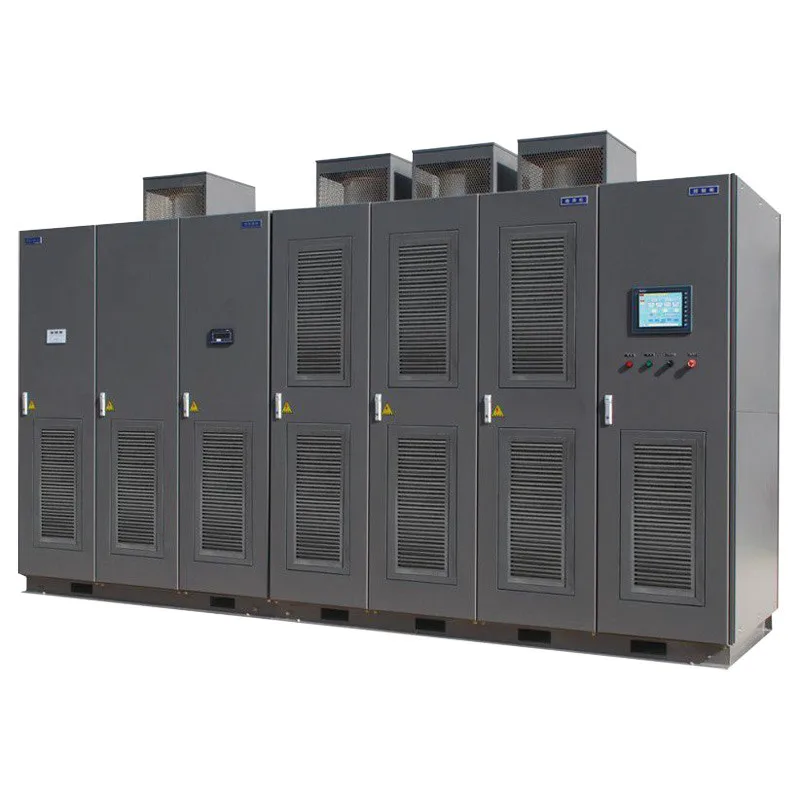

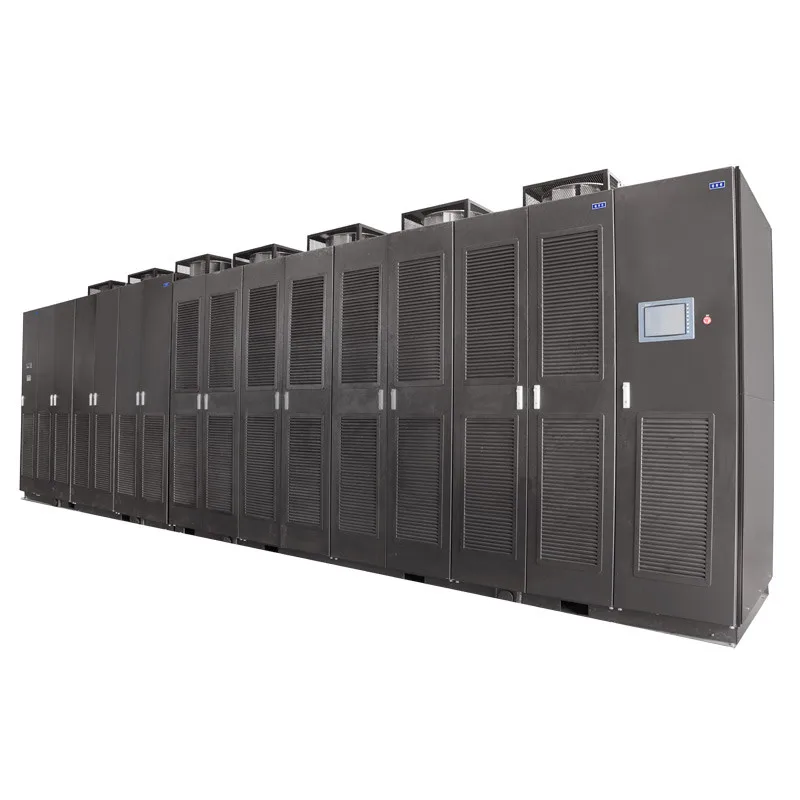

Product Details Show
Why Choose Us

Certificates

1, we've  received CE, TUV, GOST certificates and so on to convenience and easy business with our customers.

Equipment & technology

2, We use our independent researched & developed technology to produce PCB board, and the software from our own knowledge, for the components we'd like to use infenion IGBT, German Fan, Lead-harvest transforme etc the big brand, if you have specific technical requirement, please let us know, and we will send you our catalog asap.

Service

3,  All our people warmly welcome you to  visit our company for talks and to know more about our products, R&D and production strength of RENLE in the near future.

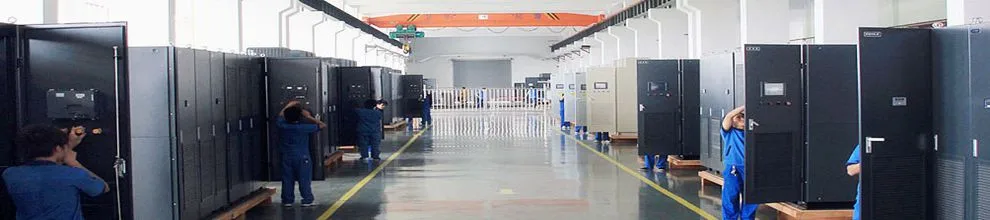

Product Processing
Product Packing

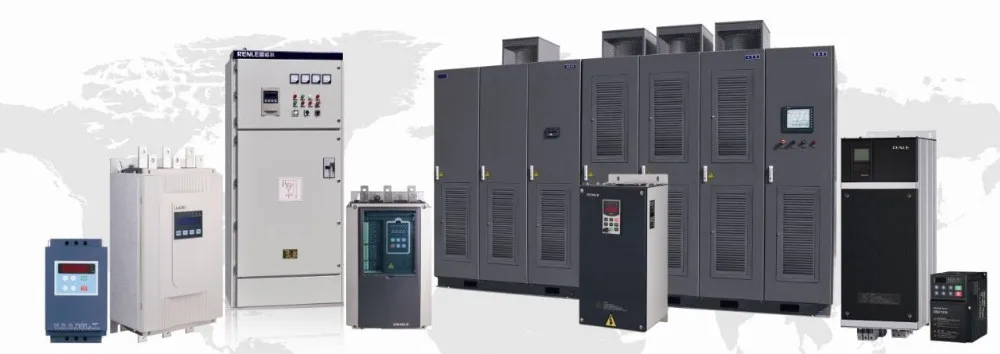

Main Products

Product Configuration

Main configuration for RNHV-A series high voltage frequency inverter (take 6kV for example) comprises of transformer cabinet, power cell cabinet, control cabinet

Application fields

Power generation: fan, compressor, draw water & energy storage pump, induced draft fan, condensate water pump, circulating pump, boiler feed water pump

Application fields

Oil, Oil chemical & Gas: pipe transportation pump, injection pump, feed pump, oil diving pump, circulating water pump,Brine pump, compressor with enforced fan, oil transportation pump, electrical diving pump,

Application fields

Metals & Metallurgy: Furnace induced draft fan, Furnace end fan, Furnace head fan, high-temperature fan, pulverizer, clean fan, circulating fan, raw material collect fan, cement collect fan, classification fan, pressure feed fan

Application fields

Municipal works ( e.g. Heat supply, water supply, polluted water treatment): Induced draft fan, pressure pump, hot water circulating pump, polluted water pump, purified water pump,

Application fields

Light industry & Chemical: coal and gas fan, pressure pump, compressor, axial flow pump, soft water pump, feed water pump
