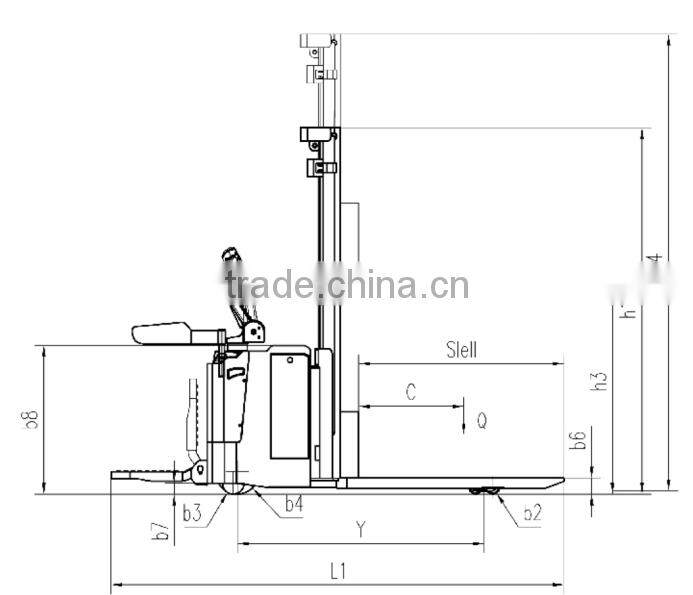

| model | ESC1M16 | ESC1M25 | ESC15M40 | |
| Load Capacity | Q(Kg) | 1000 | 1000 | 1500 |
| Load Center Distance | c(mm) | 600 | 600 | 600 |
| Lowered fork height | h5(mm) | 40 | 40 | 40 |
| Lifting Height | h3(mm) | 90~1600 | 90~2500 | 90-4500 |
| Overall Length | l1(mm) | 2050 | 3040 | 4596 |
| Pallet Length | Slell(mm) | 1150 | 1150 | 1150 |
| Fork Outer Width | b5(mm) | 560 | 580 | 580 |
| Aisle Width for Pallet 800×1200 | mm | 2515 | 2530 | 2575 |
| Aisle Width for Pallet 1100×1200 | mm | 2625 | 2640 | 2675 |
| Turn Radius | Wa(mm) | 1637 | 1637 | 1650 |
| Travel Speed(load/unload) | Km/h | 5/5.3 | 5/5.3 | 5/5.3 |
| Lifting Speed(load/unload) | mm/s | 58/148 | 58/148 | 58/148 |
| Lowing Speed(load/unload) | Km/h | 145/80 | 145/80 | 145/80 |
| Battery | V/Ah | 24/280 | 24/280 | 24/280 |
| Battery Dimension | mm | 790×210×576 | 790*210*576 | 790*210*576 |
Main Character

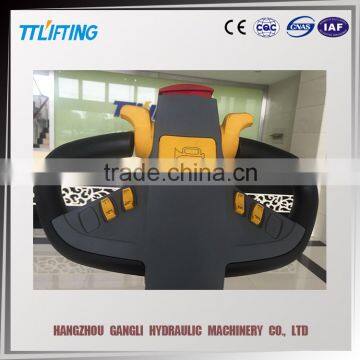

♦ Emergency reverse switch operating handles
♦ Double mast adopts double H type mast, strong and security.
♦ Safe explosion-proof valve ensure operator safety
♦ The large volume battery vertical driving wheel (or electronic steering drive wheels) drive system
♦ Imported electronic control system, easy operation
♦ Regenerative braking, counter braking and stepless speed regulation
♦ Broad protection arm and stand type non-slip pedal, provide more humanized
♦ Security protection and comfortable operation for operators

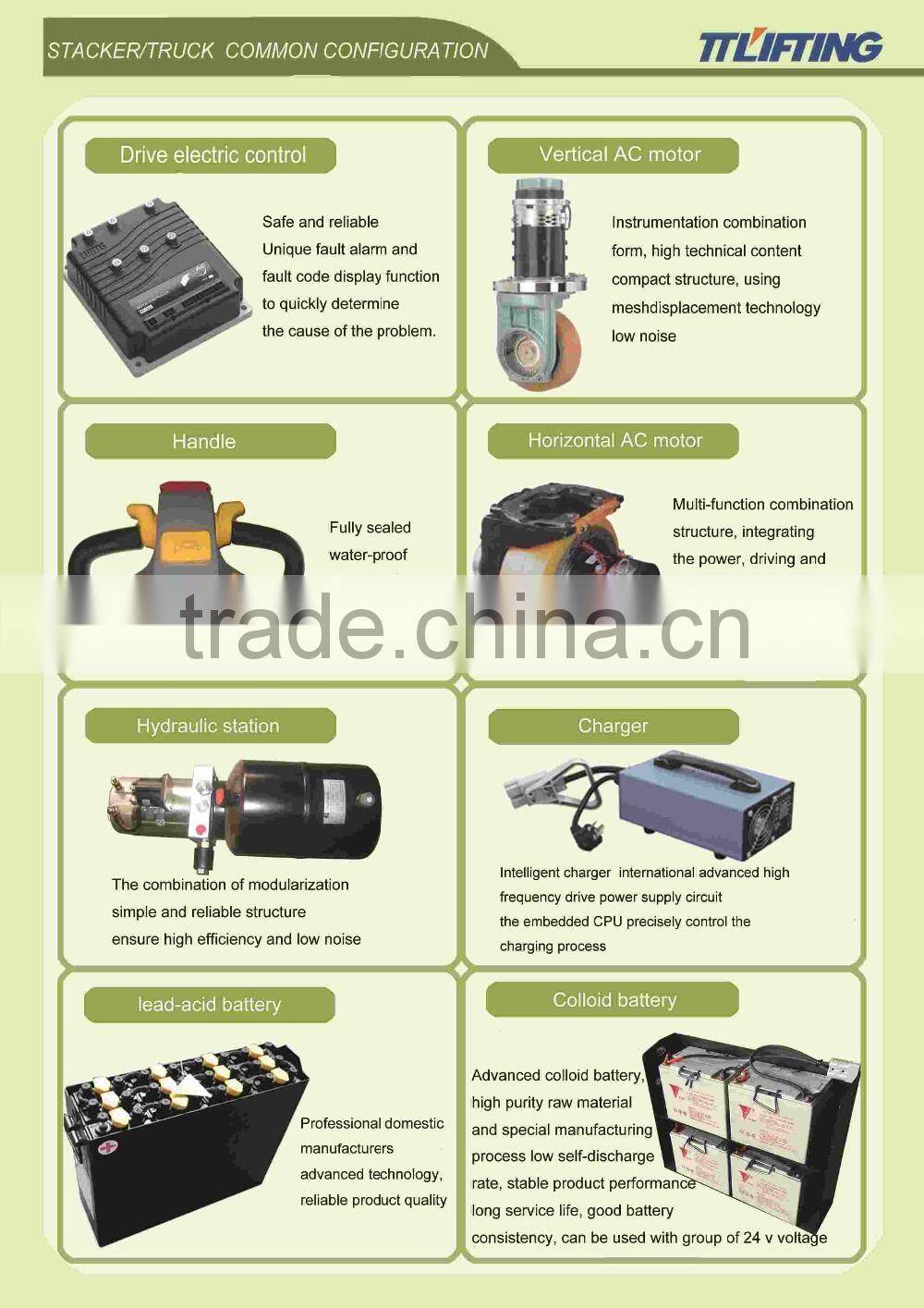

Configuration
♦ Curtis electric control
♦ Vertical driving wheel (1.5 KW ac motor)
♦ With the pedal arm guard
♦ Mechanical steering (optional electronic steering)
♦ 24 v / 210 ah battery (optional 280 ah)
♦ 2.2 KW hydraulic pump
♦ Double oil cylinders mast system (three oil cylinders tripe mast system)
Q1: Warranty for the product?
A1: 12 months from the delivery date
Q2: How long could the battery continuous work?
A2: 5-6 hours.
Q3 The design can be modified?
A3: Some customers need non-standard model, we can customize.
Q4 Know more about our production
A4:Choose one or some models, or tell us the operational environment , we will give you some advise.
