15KW Frequency Converter/15KW Frequency Inverter 3 Phase For Motor Variable Speed Inverter

Shanghai Renle Science & Technology Co., Ltd.
15KW Frequency Converter/15KW Frequency Inverter 3 Phase For Motor Variable Speed Inverter thumbnail-1
15KW Frequency Converter/15KW Frequency Inverter 3 Phase For Motor Variable Speed Inverter photo-1
US$ 150 - 25,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
RENLE
Model Number:
RNB1000
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name RENLE
Model Number RNB1000
Output Power 201 - 400KW
Output Type Triple
Input Voltage 380V
Output Voltage 0-380V
Type Other, AC 3phase
Output Frequency 0Hz ~600Hz
Output Current 2.5A `650A
Product Details

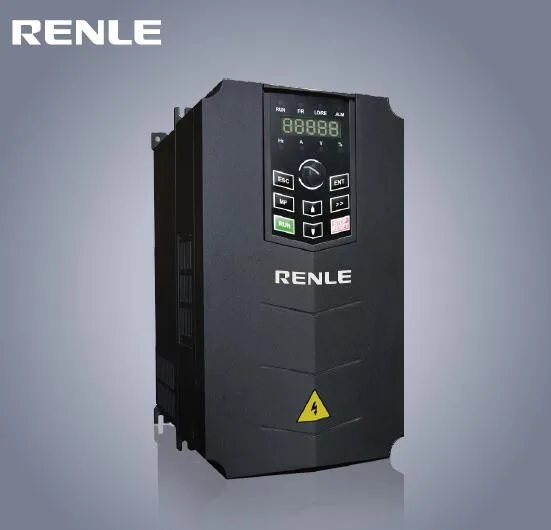

RNB1000 series frequency inverter increases production efficiency for customers with compact structure powerful functions and convenient operation.

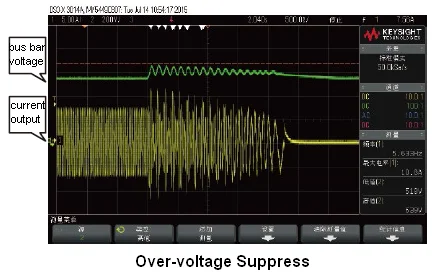

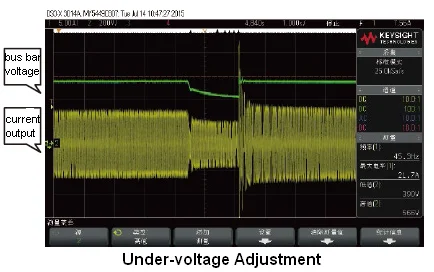

 Under the V/f control mode, the drive will not have over current alarm with high precise current limiting control, no matter how quickly the drive accelerates or decelerates, or stall, it could be reliable protecting the drive; and under vector control mode, the high-precision vector limiting control will output strong vector or gentle vector according to the user’s requirement on the process control, and protect the mechanical equipment steadily and reliably.
Under the V/f separation control mode, the output frequency and the output voltage could be set separately, which is applicable for the variable-frequency power supply, torque motor control etc conditions.

Product Introduction

Application

Renle’s frequency inverter is applicable to three phase squirrel cage asynchronous motor. Depending on its compact structure and high reliability, the product finds broad application in manufacturing industry, transportation industry and so on.

Product Parameters
TYPE
POWER(KW)
INPUT VOLTAGE(V)
INPUT CURRENT(A)
OUTPUT CURRENT(A)
APPLICABLE MOTOR POWER(KW)
RNB1000G/001P
0.75
380V
3.4
2.5
0.75
1.5
5.0
3.8
1.5
RNB1000G/001P
1.5
5.8
3.8
1.5
2.2
5.8
5.1
2.2
RNB1002G/004P
2.2
5.8
5.1
2.2
4.0
12.0
9.5
4.0
RNB1004G/005P
4.0
12.0
9.5
4.0
5.5.
18.5
14
5.5.
RNB1005G/007P
5.5
18.5
14
5.5
7.5
22.5
18.5
7.5
RNB1007G/011P
7.5
22.5
18.5
7.5
11
30.0
25.0
11
RNB1011G/015P
11
30.0
25.0
11
15
39.0
32.0
15
RNB1015G/018P
15
39.0
32.0
15
18.5
45.0
38.0
18.5
RNB1018G/022P
18.5
45.0
38.0
18.5
22
54.0
45.0
22
RNB1022G/030P
22
54.0
45.0
22
30
68.0
60.0
30
RNB1030G/037P
30
68.0
60.0
30
37
84.0
75.0
37
RNB1037G/045P
37
84.0
75.0
37
45
98.0
92.0
45
RNB1045G/055P
45
98.0
92.0
45
55
123.0
115.0
55
RNB1055G/075P
55
123.0
115.0
55
75
157.0
150.0
75
RNB1075G/090P
75
157.0
150.0
75
90
188.0
180.0
90
RNB1090G/110P
90
188.0
180.0
90
110
221.0
215.0
110
RNB1110G/132P
110
221.0
215.0
110
132
267.0
260.0
132
RNB1132G/160P
132
267.0
260.0
132
160
309.0
305.0
160
RNB1160G/185P
160
309.0
305.0
160
185
344.0
340.0
185
RNB1185G/200P
185
344.0
340.0
185
200
384.0
380.0
200
RNB1200G/220P
200
384.0
380.0
200
220
429.0
425.0
220
RNB1220G/250P
220
429.0
425.0
220
250
484.0
480.0
250
RNB1250G/280P
250
484.0
480.0
250
280
539.0
530.0
280
RNB1280G/315P
280
539.0
530.0
280
315
612.0
600.0
315
RNB1315G/350P
315
612.0
600.0
315
350
665.0
650.0
350
Product Details Show
Why Choose Us

About us

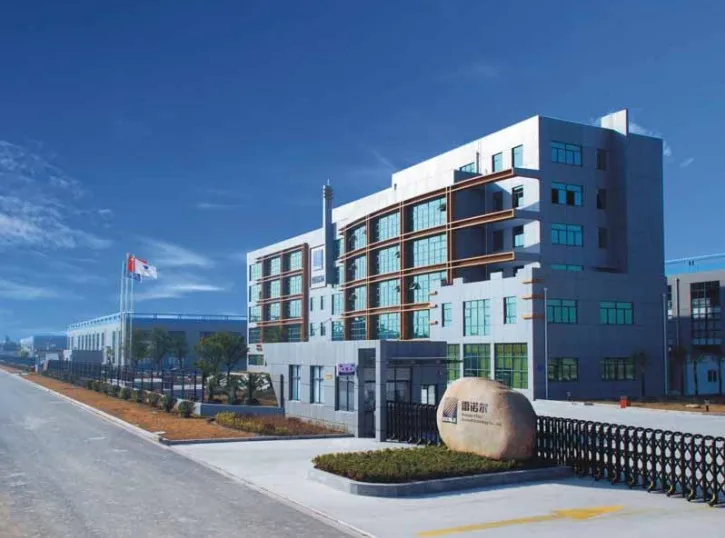

1,Shanghai RENLE Science & Technology Co., Ltd, is located in the High & New Technology Industrial Park of national level in Jiading District, Shanghai, China. The company covers a total area of 120,000 square meters.

Management

2, RENLE has established more than 40 sales branch companies and 120 marketing offices throughout the country. The products are widely used in different kinds of industries and fields,

Certificates

3, The company has passed the certification of ISO9001 Quality Management System, ISO 14001 Environment System, OHSAS 18001 Occupational Health and Safety Management System, CE, TUV, GOST and national CCC etc.

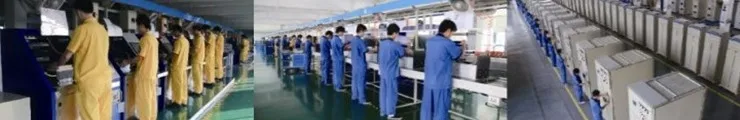

Product Processing
Product Packing
Main Products

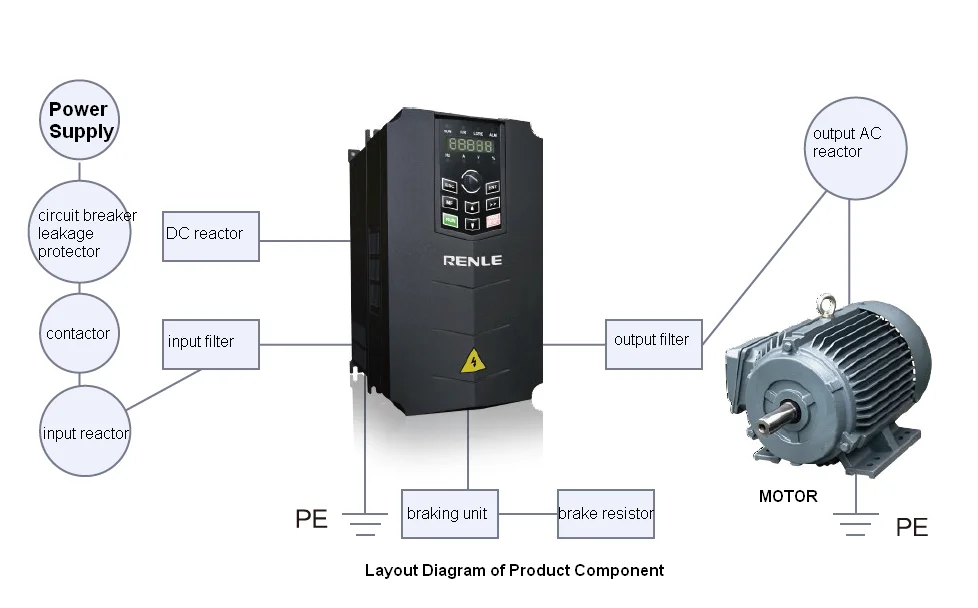

Product Component Functions

Circuit Breaker:it can cut off the power when there’s a fault happened on the equipment, and protect the equipment.

Product Component Functions

Leakage Protector: The unavoidable high frequency leakage current is because of the output of frequency inverter is PWM high frequency chopped voltage, so there is a special leakage protector.

Product Component Functions

Contactor: Please do not on-off the contactor frequently, which will result in the fault of frequency inverter, and it should not start/stop the frequency inverter through switching on/off the main circuit, it will affect the service life.

Product Component Functions

Input Output Filter: Reduce the interference of frequency inverter to the around devices

Product Component Functions

Braking Unit, Brake Resistor: The consumption of the feedback energy of the motor could quick the braking

Product Component Functions

Output Reactor: Reduce the frequency inverter protection, of which is due to the leakage current
