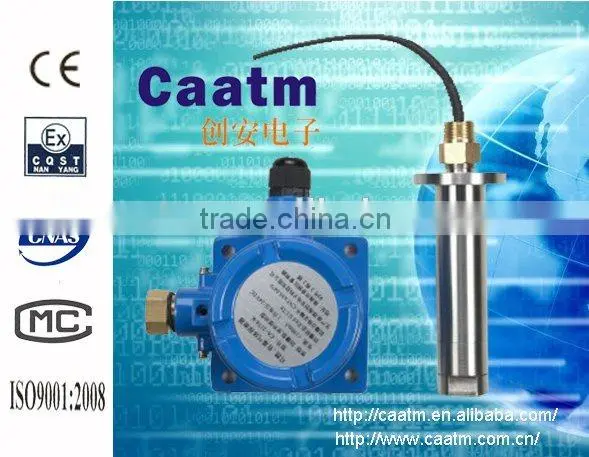

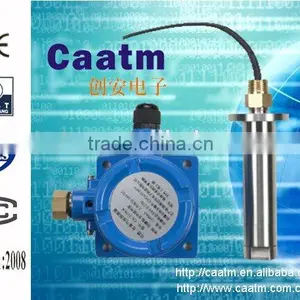

2016 Newest Fixed hydrogen sulfide Meter with H2S=0-100 ppm low price gas detector

Detection Principle:

Catalytic Combustion or electrochemical sensor

Detection Method:

Diffused

Applicable Gas:

Combustible Gases

Working Method:

Continuous Working

Detection Scope:

LEL or PPM

Respond Time:

<=15S

Detection Error:

<+-3%LEL or 1ppm

Environment Temperature:

-40°C~+70°C

Relative Humidity:

30%-95%

Output Signal:

Concentration Digital Signal

Working Voltage:

DC10V~DC30V

Sensor Life Span:

3 Years

Transmission Distance:

<1000m

Operation Pressure:

(86-106) kPa

Detector Size:

158*130*93mm

Explosion-proof Level:

Exd II CT6

Connection Thread  :

1/2G Inner Thread

Weight:

1kg

Communication:

RS485 or 4-20mA

Performance Standards:

GB3836.1-2000,GB3836.2-2000,GB15322.1-2003

Detector Model

Gas Detected

Range

Range Optional

Resolution

Responding Time

CO Detector

CO

0-1000ppm

0-500/2000/5000ppm

1ppm

20s

O2 Detector

O2

0-25%VOL

30%VOL

0.1%VOL

20s

O3 Detector

O3

0-10ppm

0-100ppm

0.01ppm

20s

H2S Detector

H2S

0-100ppm

0-50/200/1000ppm

1ppm

30s

H2 Detector

H2

0-1000ppm

0-5000ppm

1ppm

30s

CL2 Detector

CL2

0-20ppm

0-10/100ppm

0.1ppm

30s

NH3 Detector

NH3

0-100ppm

0-50/500/1000ppm

1ppm

30s

SO2 Detector

SO2

0-20ppm

0-50/1000ppm

0.1ppm

30s

NO Detector

NO

0-250ppm

0-500ppm

1ppm

30s

NO2 Detector

NO2

0-20ppm

0-50/100ppm

0.1ppm

30s

CH2O Detector

CH2O

0-50ppm

0-5/10ppm

0.01ppm

30s

HCL Detector

HCL

0-20ppm

0-20/100ppm

0.5ppm

30s

Combustible Gas Detector

EX

0-100%LEL

0-100%LEL

1%

30s

For the gas that is not covered here though, please don’t hesitate to contact us.
