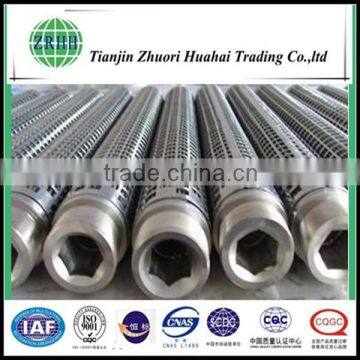

good quanlity melt filter used in petroleum, chemical industry, chemical fiber industry
- product description : :
The melt filter adopt import stainless steel fiber sintered felt made into all kinds of polyester
melt filter core,
1. Resistance to high pressure, high temperature and chemical corrosion resistance characteristics:
2. Good air permeability, large pollutant carrying capacity, long life,
3. Can be used repeatedly clean renewable,
4. 100% stainless steel material
Widely used in: oil, chemical, chemical fiber industry
- Technical parameters :
Maximum working pressure P = 30 mpa
The highest working temperature T = 300 ℃
Viscosity: 260 pas
Pollutant carrying capacity: 16.9 ~ 41 mg/c Square meters
Thickness: 0.6 to 10 mm
Max Length: 1000 mm
Max width: 280 mm
Pipe: OD10-150MM*
Wall thickness of 2-5 mm
- The table shows and sketch map :
Filtering Level | Filtration Precision um | Maximum Hole Diameter um | Permeability Coefficient 10-12m2 | Permeability m3/h.m2.kpa | Thickness mm | Compression Strength Mpa/cm2 | Bubbling Pressure Kpa |
S9 | 0.2 | 2.5 |
| 1 | 0.6-10 | 3.0 |
|
S8 | 0.5 | 4 |
| 3 | 0.6-10 | 3.0 |
|
S7 | 1.5 | 6 |
| 5 | 0.6-10 | 3.0 |
|
S6 | 2.5 | 10 | 0.09 | 10 | 0.6-10 | 3.0 | 9.16 |
S5 | 5 | 15 | 0.23 | 40 | 0.6-10 | 3.0 | 6.1 |
8 | 20 | 0.91 | 80 | 0.6-10 | 3.0 | 4.6 | |
S4 | 10 | 30 | 1.81 | 160 | 0.6-10 | 3.0 | 2.6 |
S3 | 28 | 60 | 3.82 | 350 | 0.6-10 | 3.0 | 1.8 |
35 | 80 | 7.29 | 500 | 0.6-10 | 3.0 | 1.4 | |
S2 | 40 | 100 | 9.43 | 700 | 0.6-10 | 3.0 | 1.1 |
S1 | 65 | 160 | 15.1 | 1000 | 0.6-10 | 3.0 | 0.66 |
- Packing & factory equipment
- Packing : carton inside wooden case outside or according to your request
- Transportation
- . Why choose us?
- Trade & Market :
- be widely used in :
Hydraulic filter elements are widely applied to various industries
- Our factory can replace products :
Type 1: folding filter
Type 2: sintering filter
Type 3: melt filter
Type 4: wedge water filter
Type 5: pp pleated filter
Type 6: pall Hydraulic filter
Type 7: Hydac Hydraulic filter
Type 8: Leemin Hydraulic filter
Type 9: MP-filter Hydraulic filter
Type 10: Wire mesh deep processing
Type 11: Precision filter/
Type 12: Steam turbine hydraulic filter
Type13: Marine diesel engine hydraulic filter
Type 14: DAB desiccant air breather
Type 15: filter disc /filter cartridge
Type 16: Wedge Wire Screen Pipe filter
