Long-term supply of coalescence separation filter

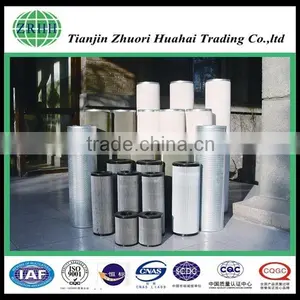

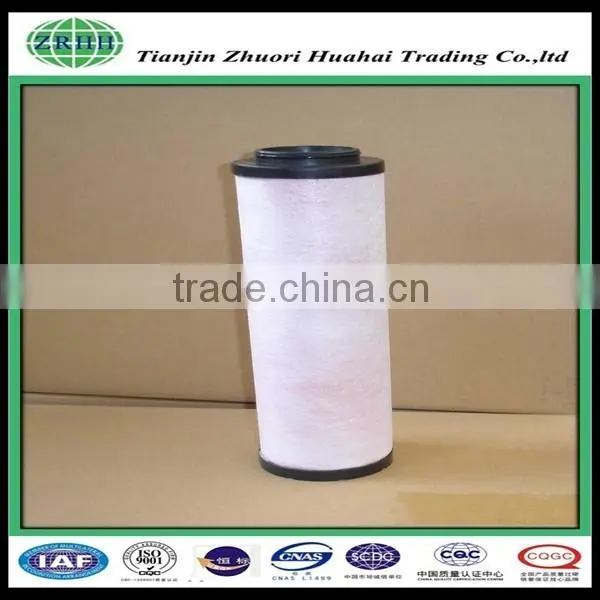

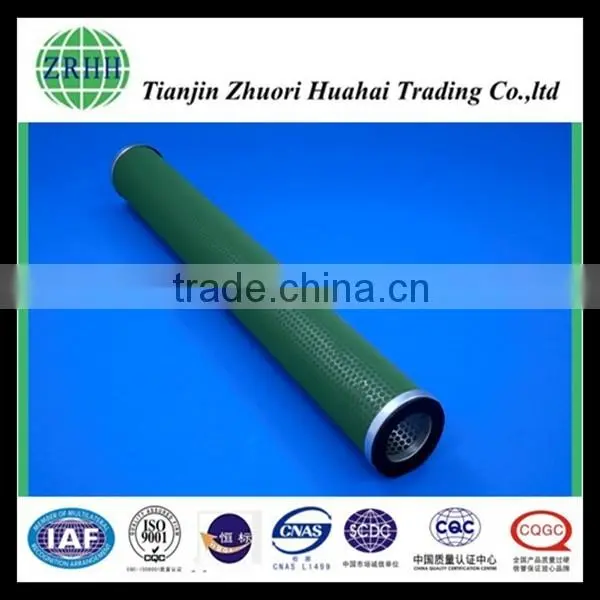

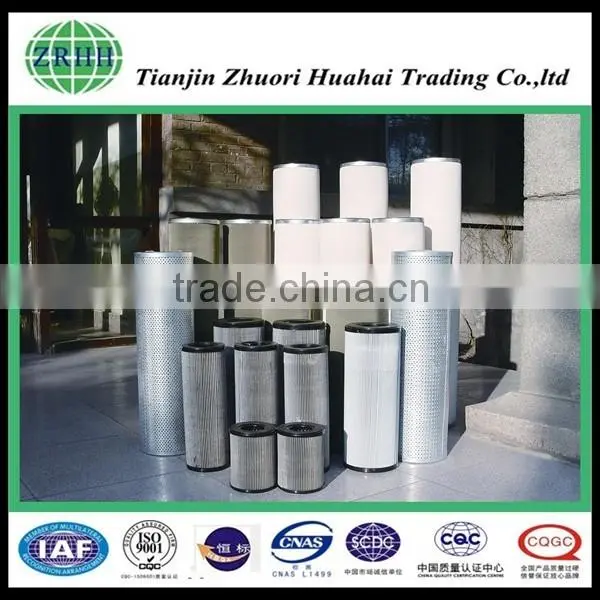

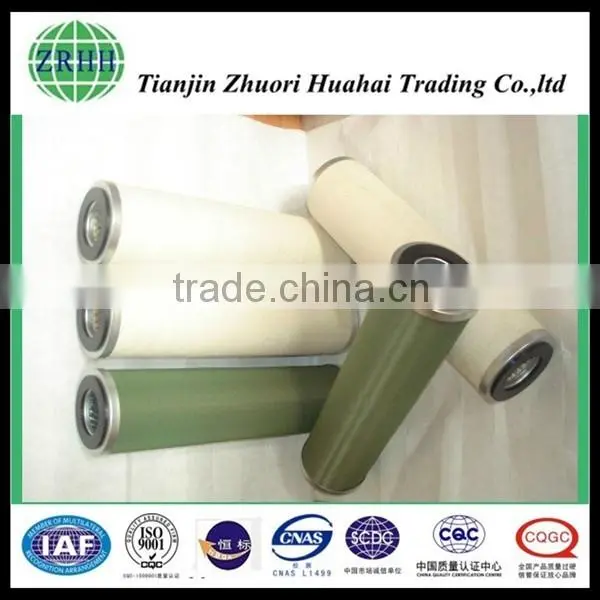

        Coalescing filter element

Coalescing filter element

  Coalescing filter is made of a variety of composite materials by the special craft processing and become, with hydrophilic properties, it can not only filter medium mechanical impurities, but also through the demulsification, coalescence, the emulsification state of water separated from the medium, and became larger droplets, facilitate further realize the purification of the medium filter.

The principle

    Oil, water and other liquid droplets, were captured by the coalescer internal superfine fibre, the airflow formed with micron grade fiber winding channels, forcing the solid particles and liquid droplets spread in the inertia collision, interception and intercept directly under the action of three kinds of filtering mechanism, is captured by the superfine fiber, liquid surface tension causes the small droplets into larger droplets, due to gravity, large droplet settling to the bottom of the container.

    Glass fiber coalescing filter using high density gradient glass fiber manufacturing, in order to reduce damage loss design into the overall single tube structure, filter the hydrophobic and oleophobic surface treatment, can satisfy all kinds of precision grade requirements.

    Polyester fiber coalescing filter filter material usually use polyester synthetic material, has good compatibility with various fluid. Filter structure of multilayer spiral coiling, each layer with different properties of the fiber, through the control of each layer of fiber parameters such as shape, size, thickness and density to achieve the desired filtering precision.

    Coalescing filter mainly choose after surface treatment of glass fiber or polyester fiber as the coalescence of medium, the structure of the filter material through the special design, make the filter medium has a good performance of coalescence. The filtering precision can reach 0.1 μm.

Product superiority

    Glass fiber glass fiber coalescing filter high density gradient, coalescence and fog droplet in gas, efficient filtration precision is high. Stable structure, there is no medium of fibers, won't cause pollution to environment, downstream products. Has good compatibility with various fluid; Good environmental protection, 100% synthetic materials, complete combustion residues.

Product standard

External diameter: 3.5 inches and 4.5 inches, 6 inches;

Extent:  16,18,20,32,36,40,72 16 inches;

Filter skeleton material: Stainless steel and other materials.

Range of application

1. Aviation fuel, gasoline, kerosene, diesel oil;

2. Stone of liquefied petroleum gas, tar, benzene, toluene, xylene, isopropyl benzene, propyl benzene and so on;

3. Turbine oil and other low viscosity hydraulic oil, lubricating oil;

4. Cyclohexane, isopropyl alcohol, ethanol, ring ring ethyl ketone, etc.

5. Other hydrocarbon hydrocarbon compounds.

Property

Accuracy range : Is less than 0.3 micron, 0.3 micron, 0.3 micron, 1 micron, 5 microns, 10 microns

The initial pressure difference: ≤0.4 psig

Replace the differential: < 0.6 psig

Operating temperature: 0~120℃

Transportation

Why choose us?

1) Professional filter manufacturer, own factory ,Has a professional team .
2) Small piece of sample(even within 1sets) can be available, more details can negotiate.
3)competitive prices and timely deliver.
4) Quality guaranteed and thoughtful after-sales service.
5) Accept any quality tests.
