stamping gear motor rotor and stator lamination core winding mould

stamping gear motor rotor and stator

lamination core mould

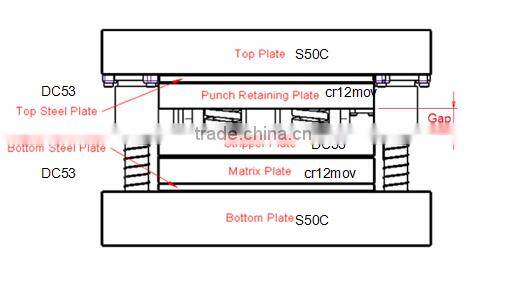

Stamping Mould material introduction

Company profile
Jiarun Precision Industry Co., Ltd was Established in 1997.

We are located in Shenzhen China, closely to the seaport of Shekou, and convenient transportation access.

we specialize in high-speed stamping mould .high-precision progressive mould and double-row revolving slot stamping mould. and the motor BB covers stamping mould , and 180 ° revolve mould innovation .

 We have some advanced machines from Switzerland .Japan and Taiwan. Such as, trilinear coordinates measuring instrument .Sodick. CHMER.etc. and own  an excellent team. It’s guarantee of quality and precision.

the progressive stamping mould main advantage as below:

1. it belongs to high-speed stamping tool.

2. it have high-efficiency and high-output.

3. the life span of die not less than one hundred million stamping times.

4. the process cost is very lower than single punch die.

5. it can be completed automatic stacks of single sheet.

6. it will can be saved the raw material .

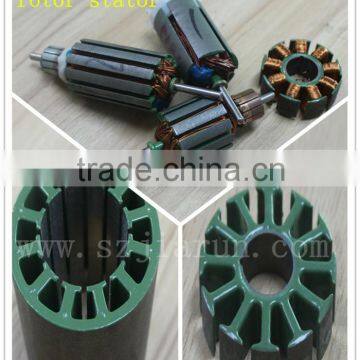

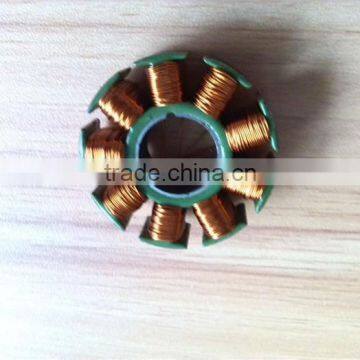

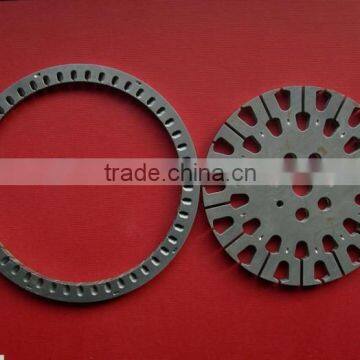

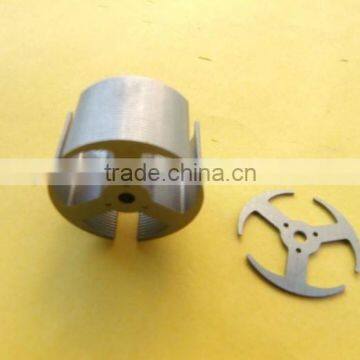

About our product(motor rotor and stator lamination core) feature:

1.All punch chip use tungsten steel to stamping ,

2.all price will precision count by my engineer and provide a competitive price for my customer.

3.Consider to convenience, it's simple assembly to our mould. and lower cost for maintenance , special after-sales service and  regular maintenance and  grind punch chip.

4. we have a experienced design and manufacture team. and it's important to each details for us. we very care the finally and key requires. the good quality and warm service always  promise and  practice to my customers. meanwhile, we won the  affirmation and trust of them.

5.we can provide design drawings 2D and 3D files to my customers. and technology support.

6. we have complete test system and instrument. and Issued quality inspection sheet by Jiarun Quality inspection department .

7.As to the problem in the tooling manufacture process. main department will  organize discussion and solution.

8.Competitive quality will be checked anytime. and on-time delivery will be guarantee.

9. Safe packing and some parts of extra free .

10.reasonable min order quantity.

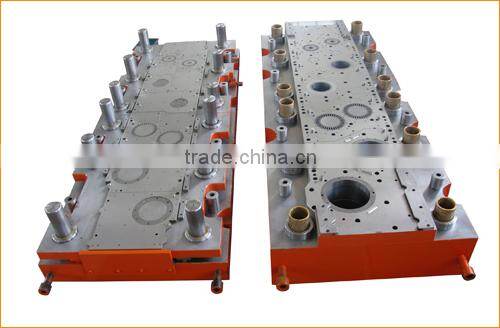

SHOW ABOUT _{STAMPING MOTOR ROTOR AND STATOR LAMINATION CORE MOULD}

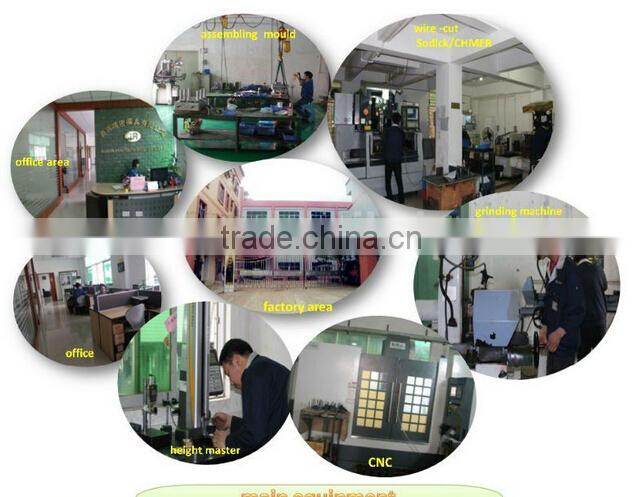

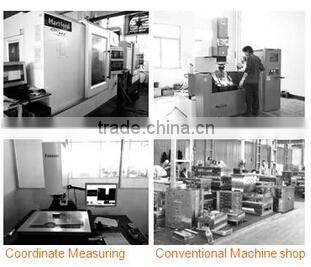

SHOW ABOUT our factory

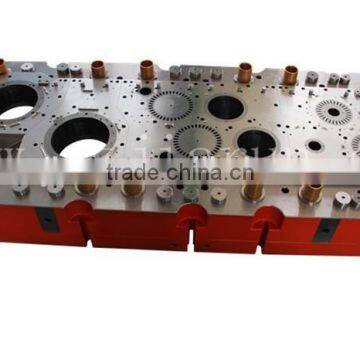

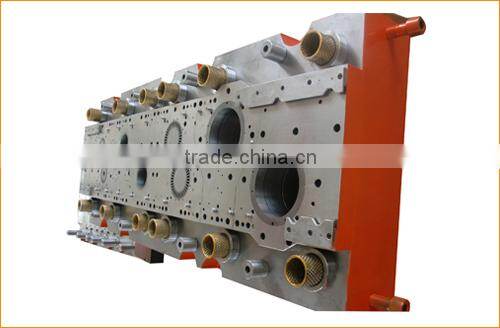

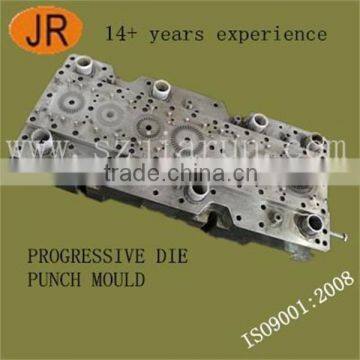

ABOUT THE progressive stamping mould:

  1.The double-row  revolving slot progressive stamping mould for lamination core stator and rotor.

  2. Punch chip & insert  material: tungsten steel.

  3. Type: high-speed progressive stamping mould rotor and stator lamination core for double row revolving slot

  4. Form: all sheet will be finished automatic stack by the mould.

  5.Our stamping mould ife span: not less than one hunderd million stamping times.

  6. the tungsten punch chip should be grinded after every 2 million stamping times.

  7. Process mode: CNC, EDM slow wire cut and fast wire cut etc.

  8. all stamping mould manufacturing process have a rigorous quality control procedure.

  9. we have a rich experience technology team for rotor and stator lamination core stamping die R&D , manufacturing , assembling , testing , repairing.

 10. we are ready to some spare parts of stamping mould for my customer.

 11. we always try hard control our quality and details. guarantee the life span of stamping mould   and reduce the repair times and cost.

stamping gear motor rotor and stator lamination core mould
