UN-818 snap fastening machine electronic snap button attaching machine

Name: UN-818 snap fastening machine electronic snap button attaching machine
Brand: UNIQUE
Availability: InStock

FOB Price

USD $230 - $280 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Shanghai or Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Automatic Grade:	Automatic	Production Capacity:	600-800pcs/hr
Place of Origin:	Zhejiang, China	Brand Name:	UNIQUE	Model Number:	UN-818
Voltage:	110V/220V	Power(W):	370W	Dimension(LWH):	455365250mm
Weight:	16kgs	Certification:	CE,CQC	Warranty:	1 year
After-sales Service Provided:	Overseas service center available

Packaging Details

Carton
Machine: 455*365*250 mm 0.042 cbm
Table: 850*630*110 mm 0.059 cbm

Product Description

UN-818 snap fastening machine electronic snap button attaching machine

New model; with direct drive servo motor.

The latest model of snap button machine - with direct drive servo motor it only works in the moment of button fixing, thus it saves 90% power consumption than regular snap button machines. High level of safety as it has a unique dual mechanical and computer programmed protection device. Stable punch stength with biggest pressure upto 1100 kgs (750W motor), the machine can work for metal button as big as 40mm in dia.

Specification:

Model name:	UN-818
Voltage:	110/220V
Power:	550 or 750W for option
Motor speed:	5000 rpm
Punching pressure:	900/1100 kgs
Stroke:	40 mm
Machine / Table weight:	16/27 kgs
Machine measurement:	455365250 mm 0.042 cbm
Table measurement:	850630110 mm 0.059 cbm

Wide range of application:

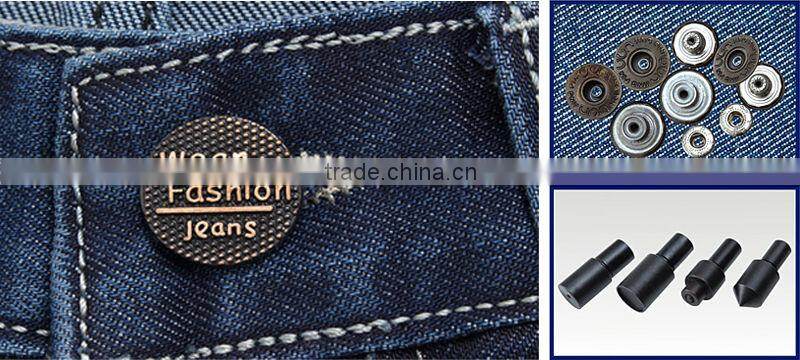

Suitable for all kinds of snap buttons to be attached on garments, jeans, shoes and etc.

Detailed Images

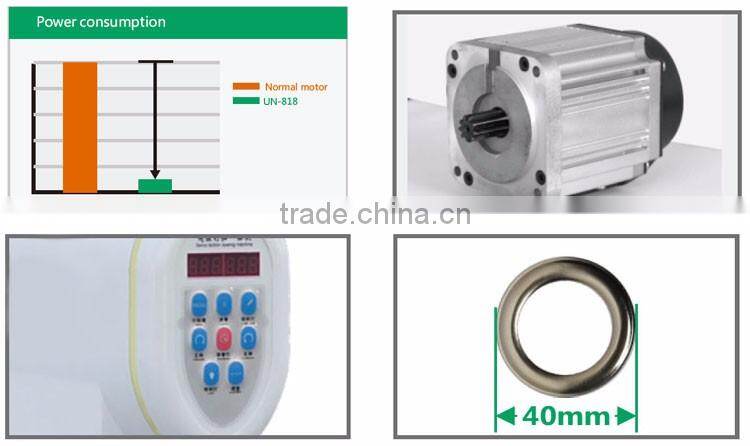

The latest model of snap button machine - UN-818 snap fastening machine electronic snap button attaching machine with direct drive servo motor it only works in the moment of button fixing, thus it saves 90% power consumption than regular snap button machines. High level of safety as it has a unique dual mechanical and computer programmed protection device. Stable punch stength with biggest pressure upto 1100 kgs (750W motor), the machine can work for metal button as big as 40mm in dia.

Company Profile

Taizhou Jiaojiang UNIQUE Sewing Machine Factory

Our factory is a manufacturer for industrial sewing machines with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in garments and other industries.
