Home > Products > Full color LED display > led display hd china xxx video advertising/outdoor advertising led tv/12v led car message moving scrolling sign display
led display hd china xxx video advertising/outdoor advertising led tv/12v led car message moving scrolling sign display
- 200 Piece / Pieces per Month
- ShenZhen/HongKong
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LIYI | Model Number: | LIYI-ST-P10/P5 |
Usage: | Outdoor | Tube Chip Color: | Other, single color/tri-color/full color | Display Function: | Other, animation/word/vedio/graphics |
Pixels: | Other, P10/P5 | Screen Dimension: | 1310(L) *350(H) *75(T)mm |
Packaging Details
led display hd china xxx video advertising/outdoor advertising led tv/12v led car message moving scrolling sign display:
Carton packing/plywood packing
Product Description
led display hd china xxx video advertising/outdoor advertising led tv/12v led car message moving scrolling sign display
1.Features:
· 128*32 pixel dots resolution
· Low power consumption
· 75mm thickness
· Adopt front service modules, easier for maintenance
· Universal AC input / full range
· IP65 protection level, outdoor solution
· PC asynchronous control
· 2 years warranty
2.SPECIFICATION
Item | LIYI-ST-P10-R | LIYI-ST-P10-G | LIYI-ST-P10-B | LIYI-ST-P10-W | LIYI-ST-P10-A | LIYI-ST-P10-RGB |
Pixel pitch | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm |
Pixel configuration | 1R | 1G | 1B | 1W | 1Y | 1R1G1B |
Pixel resolution | 128×32 dots | 128×32 dots | 128×32 dots | 128×32 dots | 128×32 dots | 128×32 dots |
Max brightness | 3500cd | 8000cd | 3600cd | 8000cd | 3600cd | 8000cd |
View angle(horizontal) | ±60° | ±60° | ±60° | ±60° | ±60° | ±60° |
Gray-scale | 1 grade | 1 grade | 1 grade | 1 grade | 1 grade | 256 grade |
Input voltage(AC) | 220V | 220V | 220V | 220V | 220V | 220V |
Max power consumption | 180W | 180W | 180W | 180W | 180W | 470W |
Cooling way | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Forced air cooling |
Control mode | PC asynchronous control | |||||

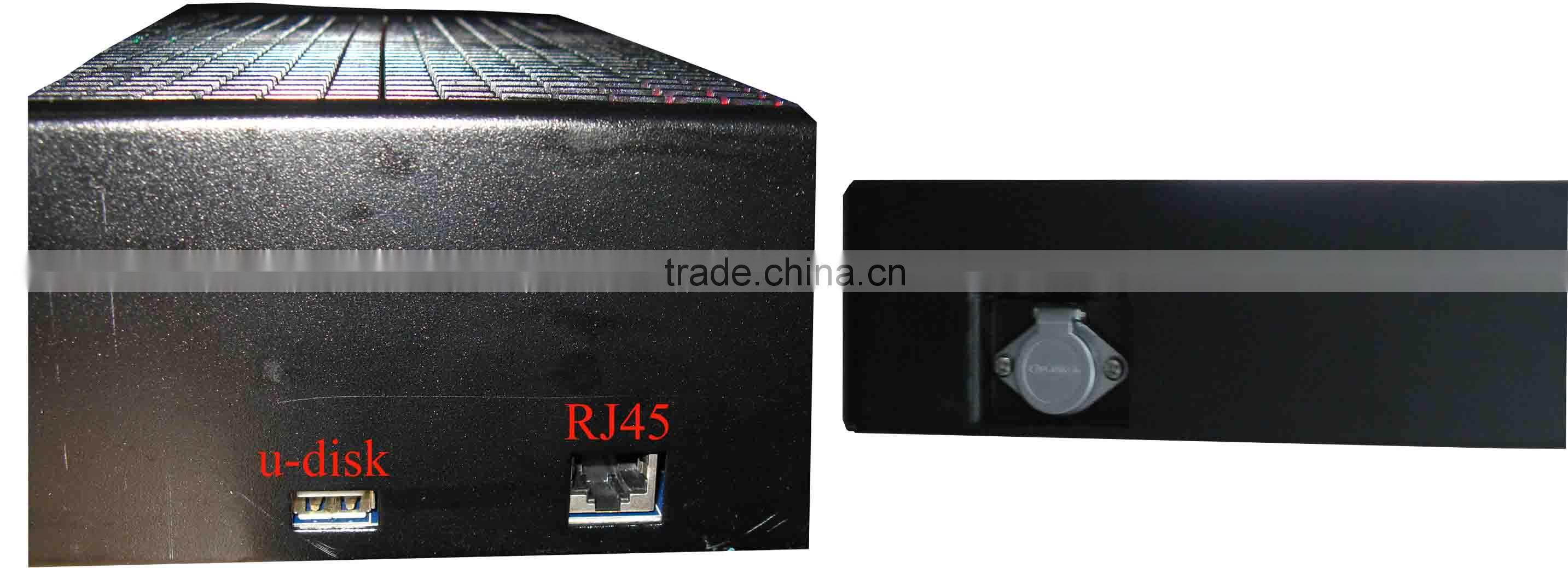

Communication mode | LAN(RJ45),WIFI,U-disk to upload the program | |||||
Support program | Animation,text,date,time | Video,Animation, text,date,time | ||||
Protection level | IP65 | |||||
MTBF | 1000h | |||||
Life span | 100000h | |||||
Operation temperature | -20~60°C | |||||
Operation humidity | 10%~90% | |||||
Cabinet material | Steel (cold rolled iron) | |||||
Standard cabinet size | 1310(L) ×350(H) ×75(T)mm | |||||
Net weitht | 21KG | |||||
Packing size | 1340(L) ×410(H) ×135(T)mm | |||||
Gross weight | 23KG |

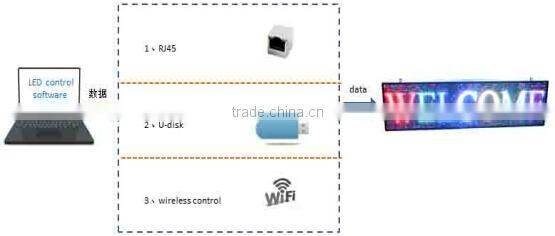

3.CONTROL MODE

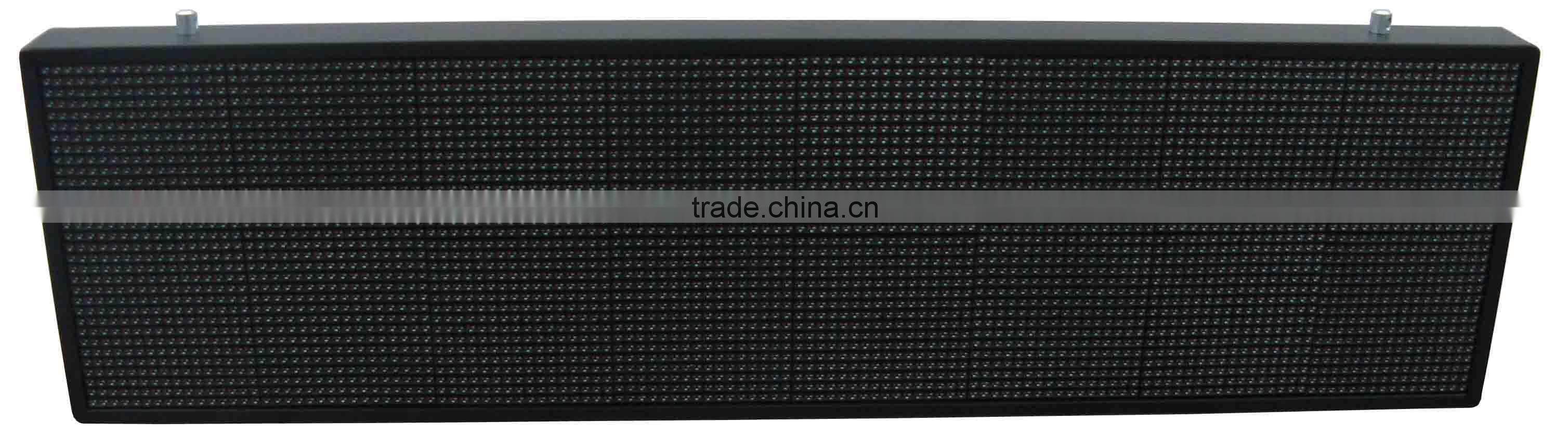

4.PRODUCT SHOW

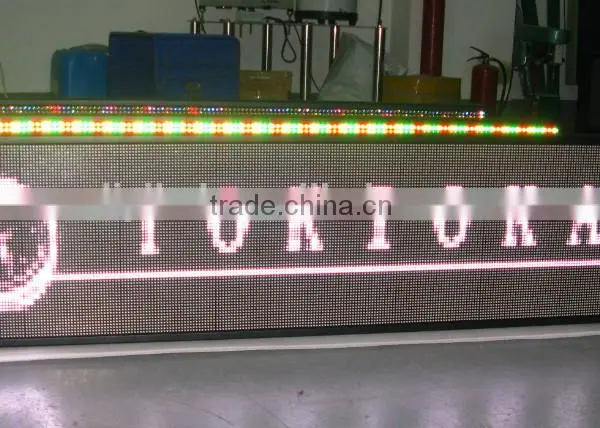

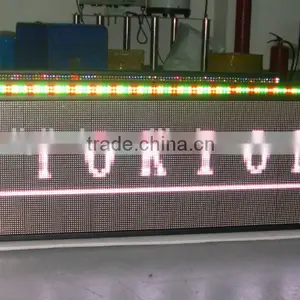

5. DETAIL SHOW
6.STRONG OPTIONAL FUCNTIONS
Besides the existing functions, we can also accept customized production to extend more functions like temperature, humidity display, light intensity adjustment etc.
7.TRADE TERM
1.Payment: 30% deposits before production, 70% balance to be paid before delivering .
2. MOQ:1 piece or 1 square meter
3.Sample can be delivered in 10days
4.Shipping freight are quoted under your requests.
5.Shipping port: Shenzhen, Mainland China.
6.Discounts are offered based on order quantities.
8.Guarantee&Service:
* 2 years quality guarantee, and we will provide free parts for replacement if any problem due to the LED panel or part quality under normal use.
* According to the matter of fact,we’ll charge a certain fee for installation
* We should to charge for the parts at a productive cost when the warranty expires.
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Our products are widely used in postal, telecommunications, financial securities, electricity, transportation, schools, hospitals, supermarkets, hotels, weather, real estate, sports, stage, restaurants, entertainment, theater, municipal advertising and government departments etc., and exported to Europe, Asia, North America…, with projects across several provinces in Mainland.
Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty.
Main products: LED pharmacy cross, LED indoor display, LED outdoor display, LED single color display, LED moving sign, LED two-side display, LED Banner sign, LED window screen, LED flooring advertising screen, LED display accessories and LED lighting.
Company insist in the core value of "honesty, dedication, win-win basis and transcend" to provide customers with quality service and sincerely thanks to friends’ trust around the world!
9.FAQ
1. contact us for current price and suitable suggestions.
2. the shipping way would be confirmed by the buyer.
3. our products all have CE, ROHS certificate.
4. more detail info, contact us, skype: liyisales03.
Company Profile
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Our products are widely used in postal, telecommunications, financial securities, electricity, transportation, schools, hospitals, supermarkets, hotels, weather, real estate, sports, stage, restaurants, entertainment, theater, municipal advertising and government departments etc., and exported to Europe, Asia, North America^, with projects across several provinces in Mainland.
Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty.
Main products: LED pharmacy cross, LED indoor display, LED outdoor display, LED single color display, LED moving sign, LED two-side display, LED Banner sign, LED window screen, LED flooring advertising screen, LED display accessories and LED lighting.
Company insist in the core value of "honesty, dedication, win-win basis and transcend" to provide customers with quality service and sincerely thanks to friends' trust around the world!
