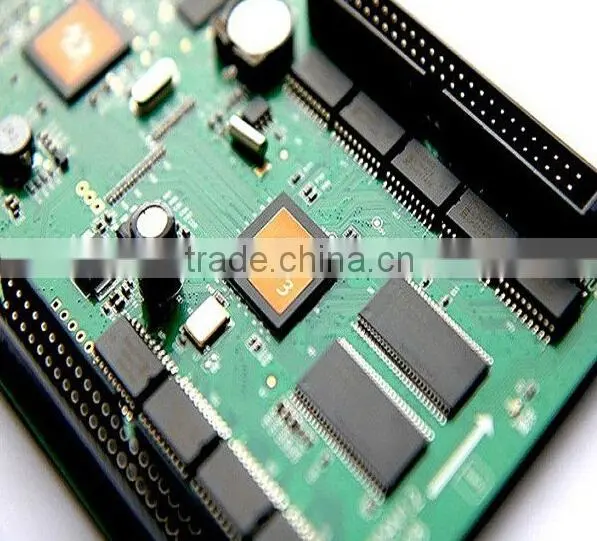

CE ROHS 384*256 asynchronous USB ethernet port 3G module hd-c3 rgb led display controller

Name: CE ROHS 384*256 asynchronous USB ethernet port 3G module hd-c3 rgb led display controller
Brand: LIYI
Availability: InStock

FOB Price

USD $95 - $250 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port SHENZEN
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	LIYI	Model Number:	HD-C3
Usage:	Other, Indoor/semi-outdoor/outdoor	Tube Chip Color:	Other, full color	Display Function:	Other, Video/animation/graphics
Pixels:	Other, P3/P4/P4.75/P6/P10/P16/P20/P25/P31.25	Screen Dimension:	384*256 dots

Packaging Details

CE ROHS 384*256 asynchronous USB ethernet port 3G module hd-c3 rgb led display controller: Strengthen carton packing

Product Description

CE ROHS 384*256 asynchronous USB ethernet port 3G module hd-c3 rgb led display controller

1.Dominant position :

indoor & outdoor full-color & single/dual color module.
Video display, Image and Text Editing.
0-65536 gray scale.
U-disk expanding memory, plug and play.
stereo audio output.(No external audio module)
plug and play without any network settings.
network cluster management.
simple and flexible user interface, easy to operate.

The following is the detailed parameters of our HD – C3 asynchronous full-color LED display controller card:

Type	Indoor & outdoor full-color & single/dual color module
Scan mode	Static, 1/2 scan, 1/4 scan, 1/8 scan & 1/16 scan
Control range	384*256
Gray Scale	0-65536
Video format	AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image format	BMP, GIF, JPG, JPEG, PNG, GIF, etc.
Text	Text and Image being edited directly. Document like word, txt, rtf, html etc. can be edited as well after importing directly.
Time	Classic Analog clock, digital clock and various of clock with image background.
Audio output	Double track stereo audio output
Memory	512MByteFlash, more than2 hours’program support. Indefinite expanding of U-disk memory.
Communication	10/100M Ethernet ,USB port
Control distance	100 meters
Port	2pin 5V Power x1, 10/100M RJ45 x1, USB 2.0 x1, Stereo audio x1, 2 x 25pin HUB port x2
Software	LedArt

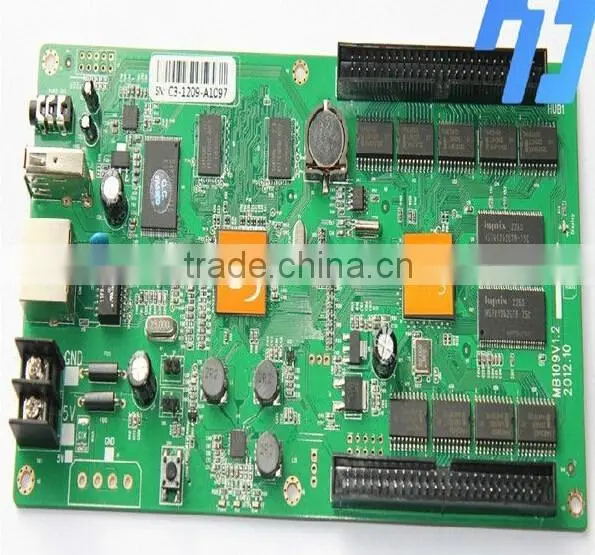

(1) HD – C3asynchronous full-color LED display controller card

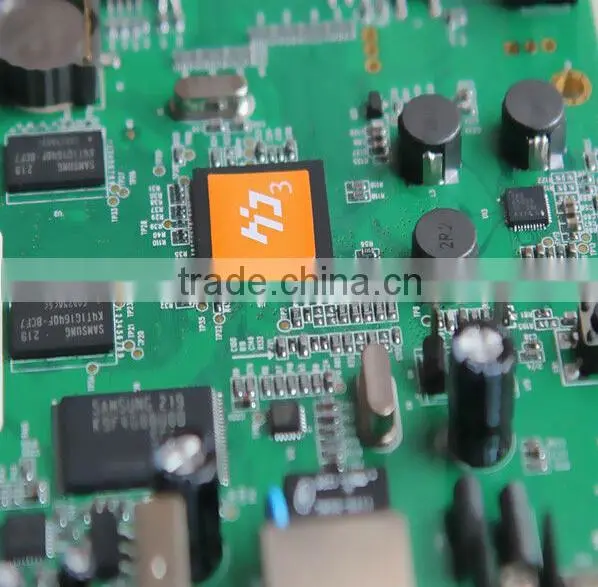

(2)Strong CPU (Cortex A8) and high speed memory: samsung DDR II:

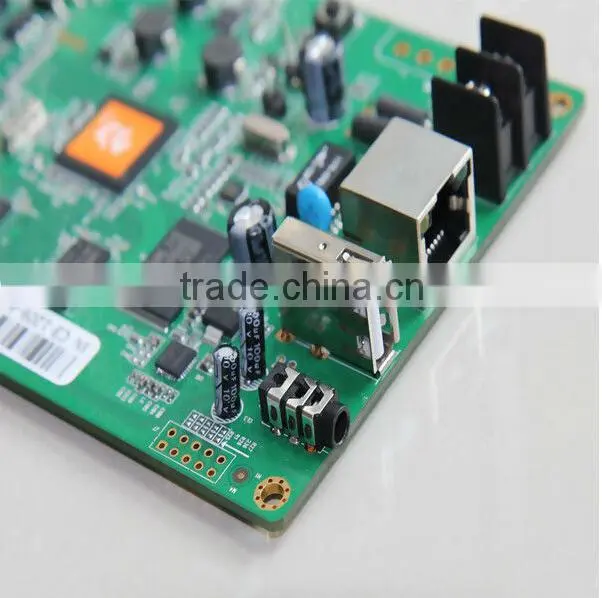

(3)Output interface:

a. Double track stereo audio output

b. USB interface(use u-disk upgrade the program or expand the memory)

c.10/100M Ethernet interface.

(4)Circuit protection:

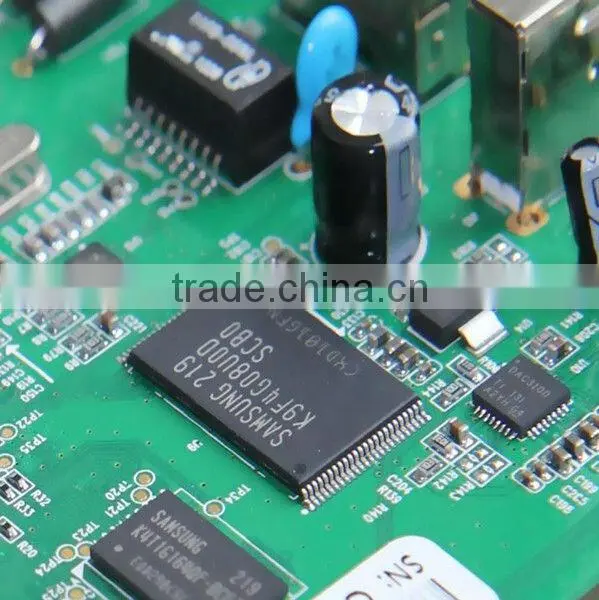

(5)NAND storage chip(HD-C1andHD-C3 have the strongest operating system, it can deal with the bad block and Complex file system by itself, so u can be used safely)

(6)Output Interface (can connect HUB08, HUB12, HUB75 ,HUB40 etc.)

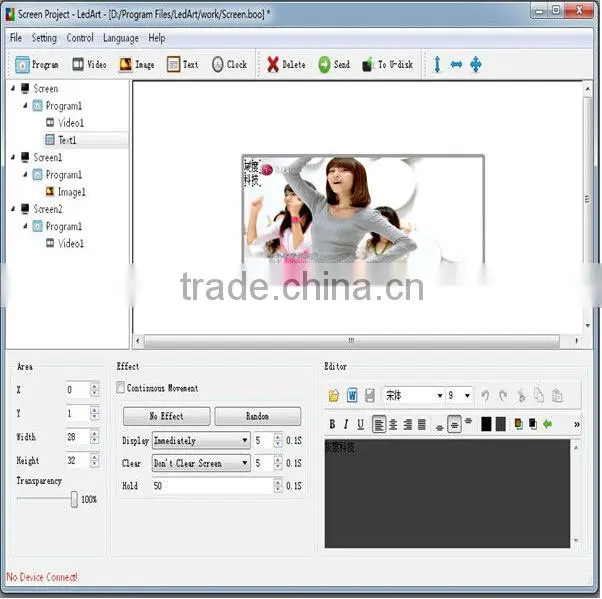

(7) The operating software--LedArt(Simple and flexible user interface, easy to operate

a. The language of the operating software has Chinese, English ,Turkish, Farsi.

b. No limit the program number(can add countless programs)

(8)Can add background music in every program!(notice: if you have added the video, can not add the background music again)

2.EXTEND FUNCTIONS

HUB transfer board

Temperature and humidity sensor

Remote controller

3G module
