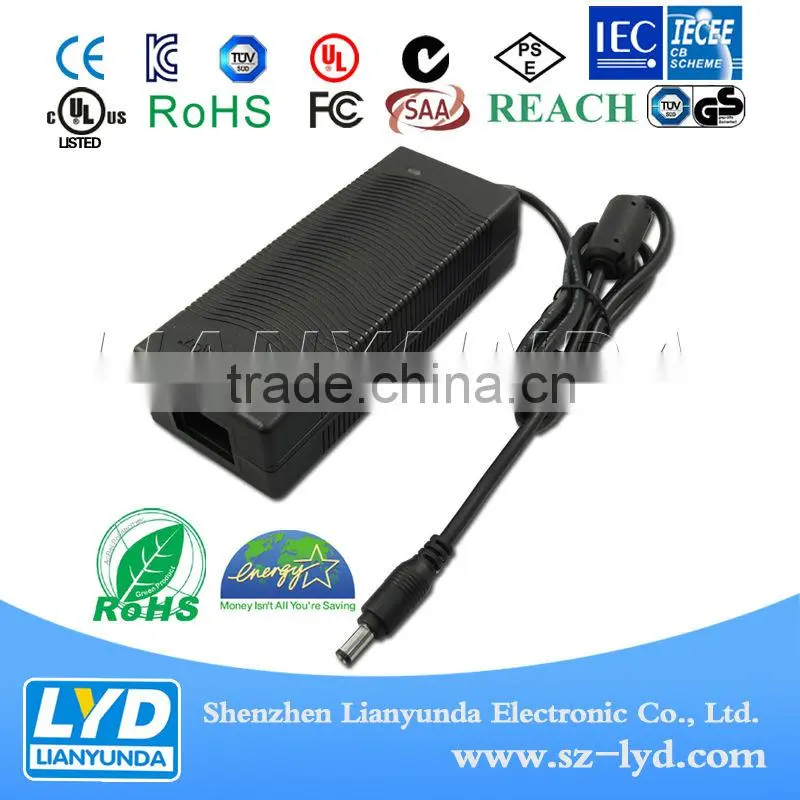

Desktop adapter 12V7A With UL Certification

Name: Desktop adapter 12V7A With UL Certification
Brand: Lian yunda
Availability: InStock

FOB Price

USD $25 - $27 / Case

1000 Cases(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Lian yunda	Model Number:	LYD1207000
Output Type:	Other, AC -DC	Connection:	Desktop

1. New products
2.Good quantity
3. Fast delivery

Oupt power range	12v6a ,12v7a,12v8a,24v4a (also have those models for selection)
The adapter size	1546238mm
The adapter weight	106g/pcs
Input Rated Voltage	100Vac~240Vac
Input Frequency Range	50Hz~60Hz
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Efficiency	80%(MIN)at Rated Voltage
DC Output Voltage	12V± 5% (option)
DC Output Current	7A (option)
DC Output Power	84w (optional)
Leakage Current	less than 5mA
Standby power	less than 0.5w
DC connector	5.52.110mm (optional)
DC cable	1.2m 2464UL 18AWG cable (optional)
Ripple and Noise	less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time	less than 3S (AC:110V and full load)
Certificates	CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection	output voltage protection (150%-180% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +40°C
Safety Standard	EN60950-1 UL60950-1 ESD (EN61000 3-3)
	CAS (60950 ITE/TE) FCC Part 15 subpart B Class B
	ISO 9001: 2008

Shenzhen Lianyunda Electronics Co., Ltd.: Contact nameLI yuan
Chat Now; Phone0086-755-27825520,27587573; AddressSix Floor, Maocheng Building,Xicheng Industrial Area, Bao'an District Shenzhen,Guangdong
