Geomembrane welder, welding machine hot wedge welder
- 100 Set / Sets per Month
- Shanghai
- Credit Card
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | TOPLINK | Model Number: | 4001A&A+ |
| Voltage: | 230V | Power: | 800W | Frequency: | 50/60Hz |
| Dimensions: | 295x250x245mm | Weight: | 5.0(include 3m power line) | Usage: | Apply to weld HDPE, PVC, LDPE |
Product Description

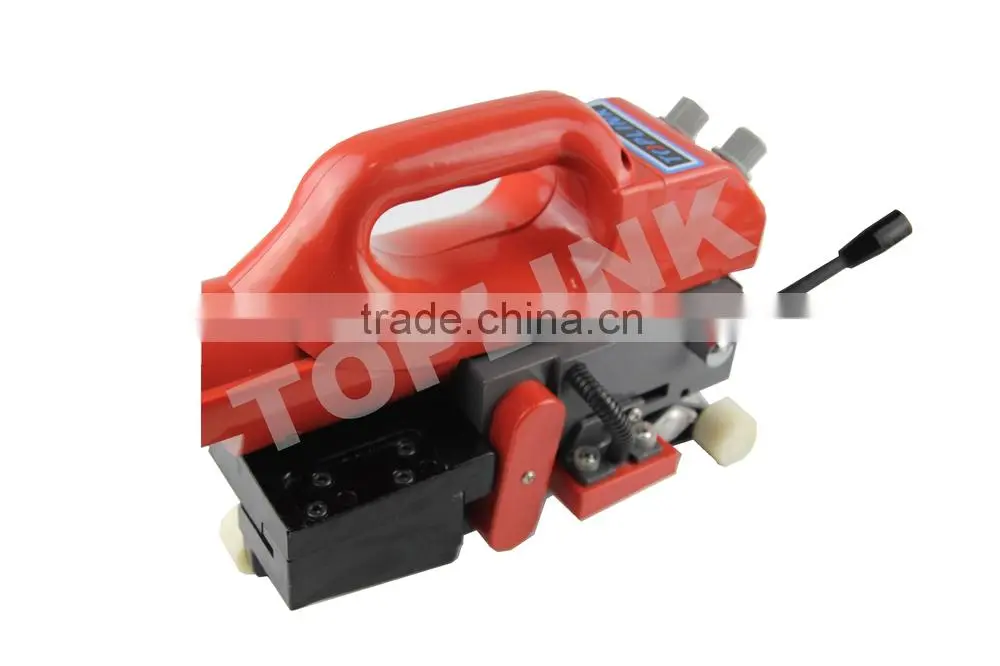

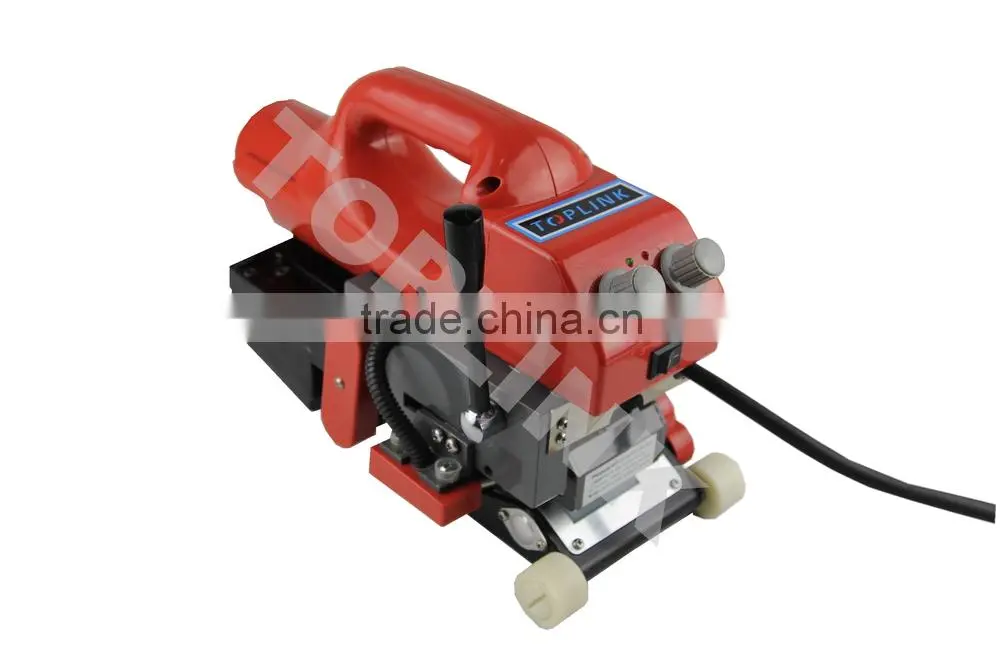

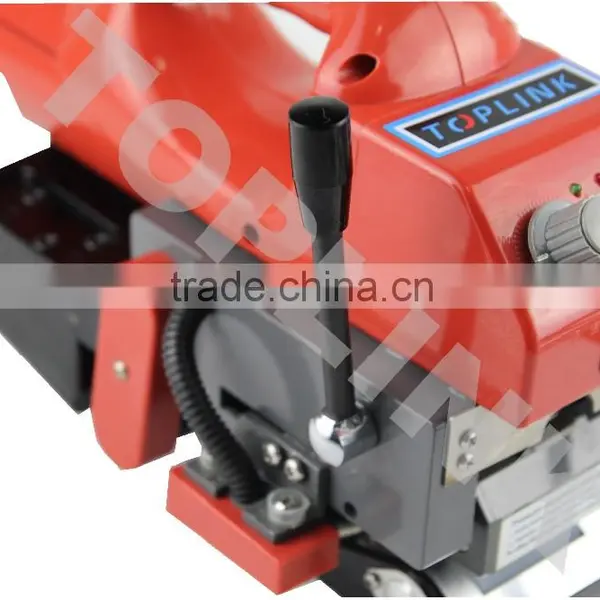

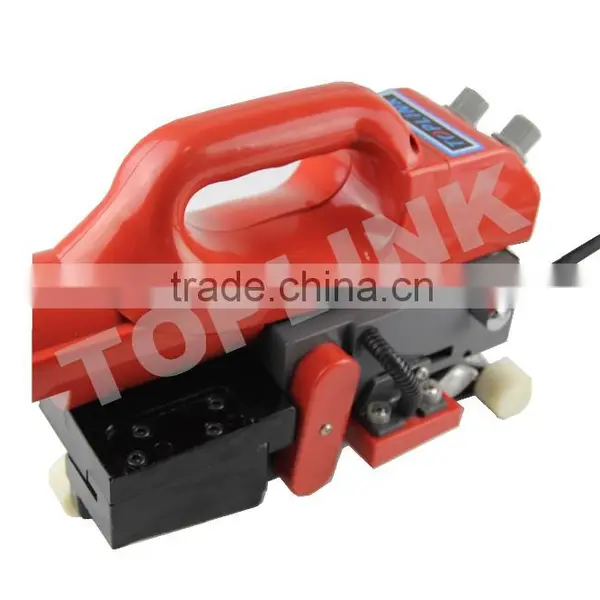

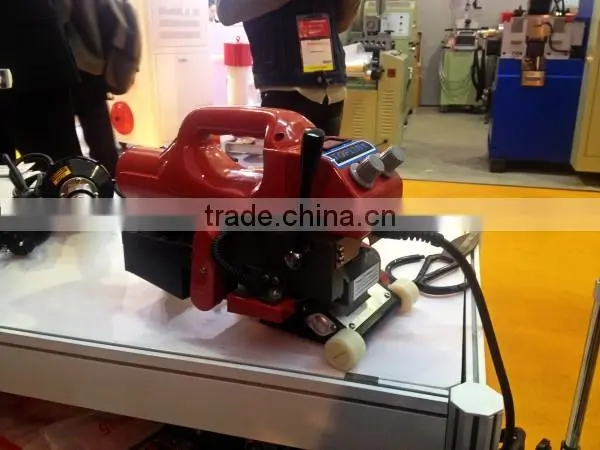

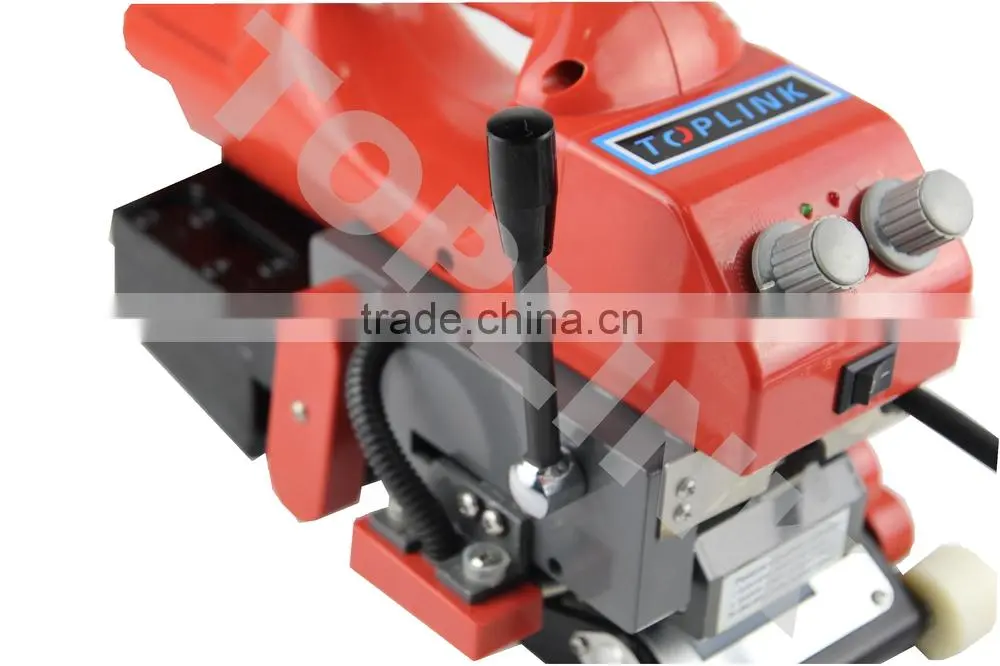

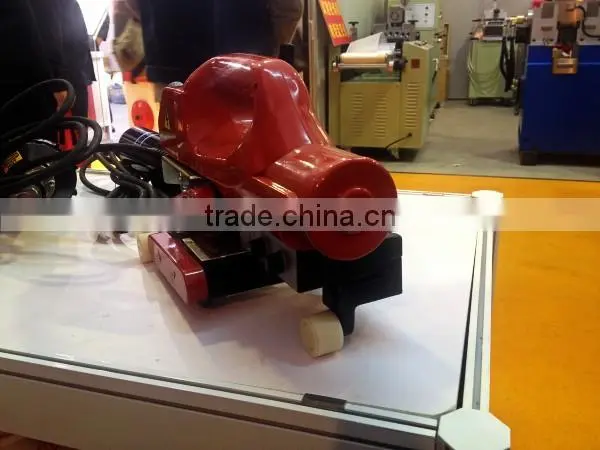

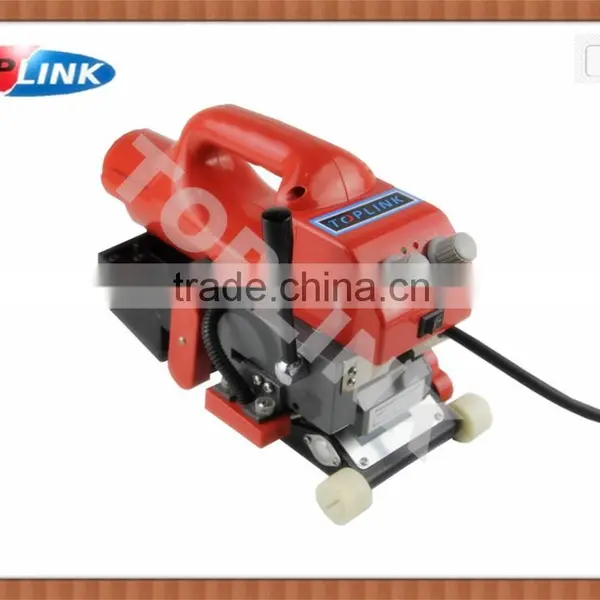

Geomembrane welder, welding machine hot wedge welder
Type: LZ-4001A&A+ (digital display and scale display)
1. Technical data :
voltage | V | 230 |
power | W | 800 |
Frequency | Hz | 50/60 |
Temperature | ℃ | 0-450 |
speed | m/min | 0.5-5 |

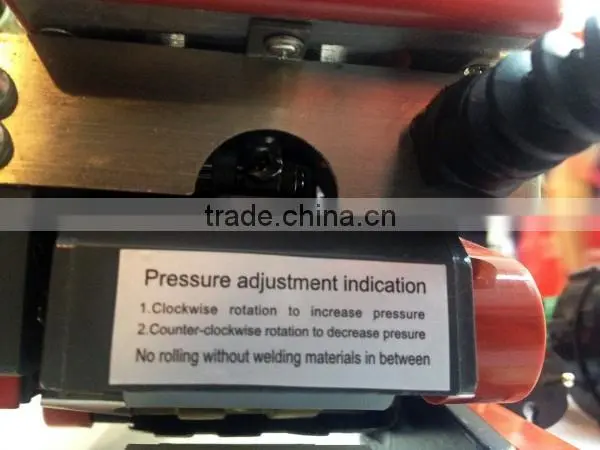

Welding pressure | N | 100-1000 |
Welding Thickness | mm | 0.2-1.5 |
size | mm | 295x250x245 |
weight | kg | 5.0(include 3m electric wire) |
certificate | CE | |
2. Function:
1. Mature driving technology, high power motor
2. Temperature and speed display at the same time
3. Easy to operate by single hand
4. Temperature and speed adjustable
5. Solid and practical transport box
3. Advantage and application:
Compact structure, with integrated control box, is the smallest and lightest hot wedge welder in TOPLINK. It guarantees the best welding quality with the wedge which has the best heat transfer. This geo-membrane machine has the advanced hot wedge structure, light body and big power, apply to weld HDPE,LDPE,PVC,EVA,ECB, PP and all other kind of hot melt material. This machine got stable performance, easy on operating, high efficient on welding and reliable. Be widely used in tunnel, railway, water conservancy, aquaculture, landfill, chemical engineering, sewage treatment, waterproof.
sketch map of hot weldge welding
