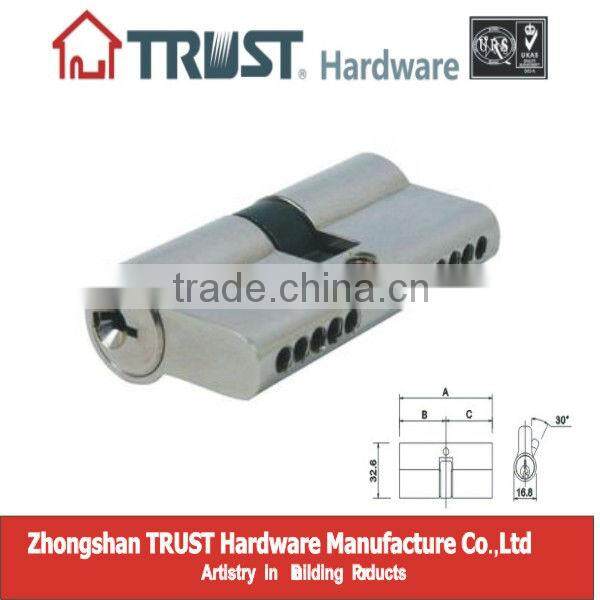

A70CP:Trust 70mm Euro Profile Brass safe lock cylinder

Specifications

safe lock cylinder
Different size optional
Brass material
Standard Key or computer key optional
High security.

safe lock cylinder



Item:A70CP

Lazy Cam With Grub Screw

"A" mean Standard key ;  "B" mean Computer key



"70" mean Length



"CP" mean Finish









SIZE PICTURE



Dimension			CODE
A	B	C	Standard Key	Dimple Key
60	30	30	A60CP	B60CP
65	32.5	32.5	A65CP	B65CP
71	35.5	35.5	A71CP	B71CP
75	37.5	37.5	A75CP	B75CP
80	40	40	A80CP	B80CP
85	42.5	42.5	A85CP	B85CP
90	45	45	A90CP	B90CP





The name classification of the lock cylinder.

In accordance with DIN 18 252/09-1999 and EN 1303 standard,continental cylinders are divied into three quality grades:

By the number of pins Grade I & II: 5 pins ;   Grade III:6 pins

Key differ rate

Grade I & II: 1/30000    Grade III: 1/100000

European standard cylinder with multiple device for the maximum security purpose,in addition to the above number and combinnation of  differentpins,there are also some more methods as follows:Anti-drilling protection protection against demolition Increase the security pin.

Note:the above structure is common functon,if customer need special enhanced security performance requirements or other special needs,please specify when ordering.





Determination of the cylinder length

1,The total length of cylinder = door thickness + thickness of the fitting on the outside + thickness of the fitting on the inside

2,Cylinder is equal sides cylinder if it is fitted in the middle of door.

3,Cylinder in unequal sides cylinder if it is notin the middle of the door,

4,The cylinder must protrude only max 2-3mm from the fitting on the outside and inside.







Other kinds of our HOT SELLING brass Mortise Cylinder;













If you are interested in any of our products,pls feel free to contact me,E-catalog and favourable price will be ready for you!!!
