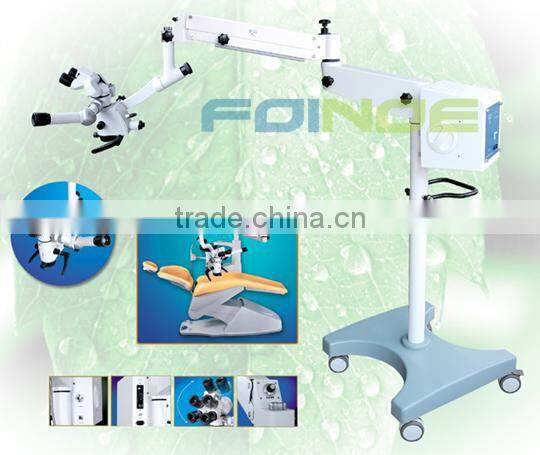

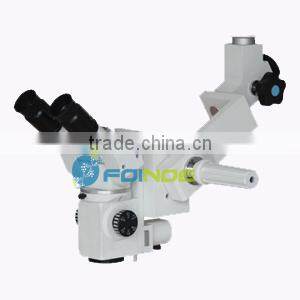

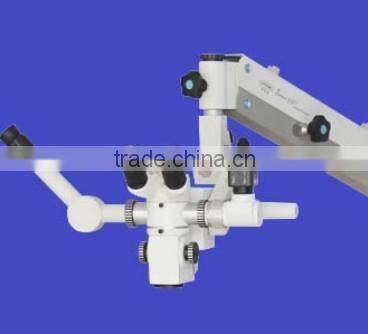

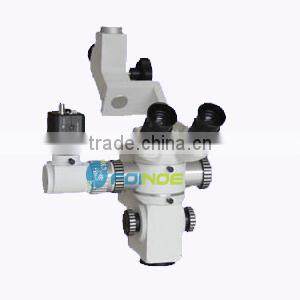

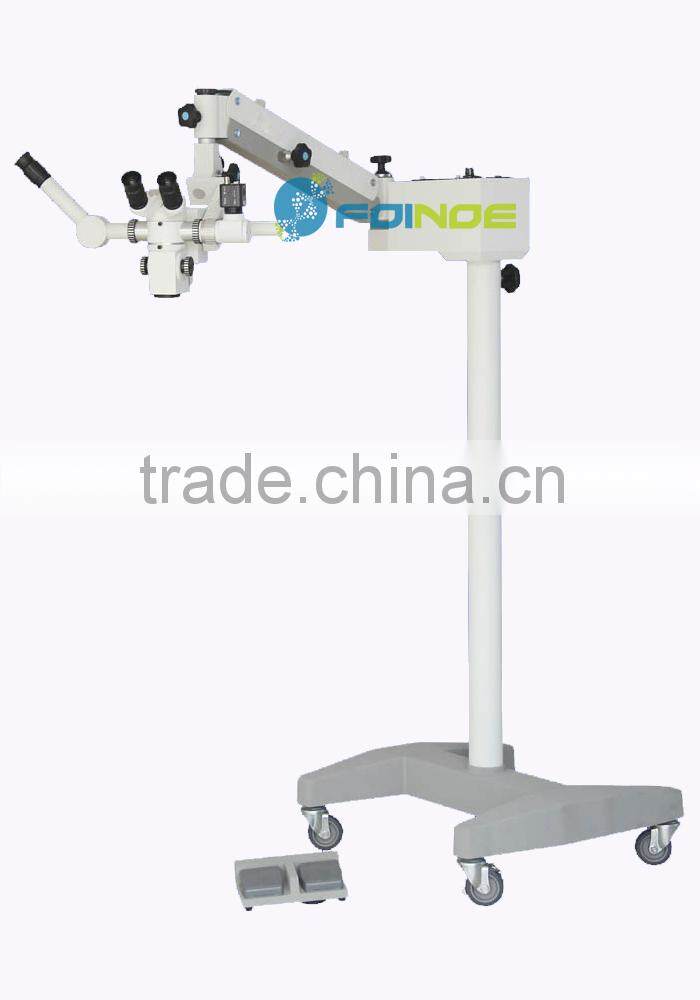

Dental Microscope

Name: Dental Microscope
Brand: FoiNoe
SKU: 100417103
Availability: InStock

Nanjing Foinoe Co., Ltd.

US$ 5,000 - 6,000 MOQ: 1 Set

Key Specifications

Type:

Other, Microscope

Brand Name:

FoiNoe

Model Number:

DM-L

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Nanjing

Delivery Detail:

Delivery time depends on order quantity.

Type Other, Microscope

Brand Name FoiNoe

Model Number DM-L

Place of Origin Jiangsu, China

Product Description

1.With full range of spare parts, and flexible combination, it is suitable for examination and surgeries in several kinds of fields.

2. High-contrast image, great depth of field and excellent stereo effect.

3. 6-step magnification changer, different working distance for options.

4.LED light source with patent integration module.

5.LED light source with long service life and low energy consumption.

6.Continous illuminationn control.

It fits for AC 90-240V and automatic identification.

Specifications:

SPECIFICATIONS DM-L100 plus DM-L100E/N plus DM-L100D plus
MICROSCOPE
Binoculars		45° inclined f’=160mm	Straight f’=160 mm	45 ° inclined f’=160 mm
Objective		f’=190-210 mm	f’=220-350 mm	f’=220-350mm
Eyepiece		12.5x, high-eyepoint, wide angular, pupil exit distance 21mm
Diopter adjustment		-5D to + 5D
Magnification changer		6 steps: 0.3x, 0.5x,0.8x 1.2x, 2.0x, 3.0x
Total magnifications		2.4x, 4x, 6x 9.6x,16x, 24x	2.4x, 4x, 6x 9.6x,16x, 24x	2.4x, 4x, 6x 9.6x,16x, 24x
Visual field		52mm- 8mm	80 mm-12.5mm	65mm-10mm
Interpupillary distance		55mm to 75 mm
Working distance		190-210mm	220-350 mm	220mm-350mm
ILLUMINATION
Type	Coaxial illumination by optical light-guide system
Cold light source	LED lamp, 3V/10W
Illumination control	3steps
Field of illumination	55mm
Power supply	AC 90-240 V
Light intensity	25,000 LUX
Filter	Green, blue		Blue, green	Yellow, green
ARM, STAND
Type	Pantographic arm, floor stand
Range	1250mm		1250mm	1250mm
Rotation angle	270°
Elevation stroke	400 mm
Base size	600 mm x 600 mm
Weight	85 KGS
ACCESSORIES
Binoculars	0-180° binoculars f’=170mm

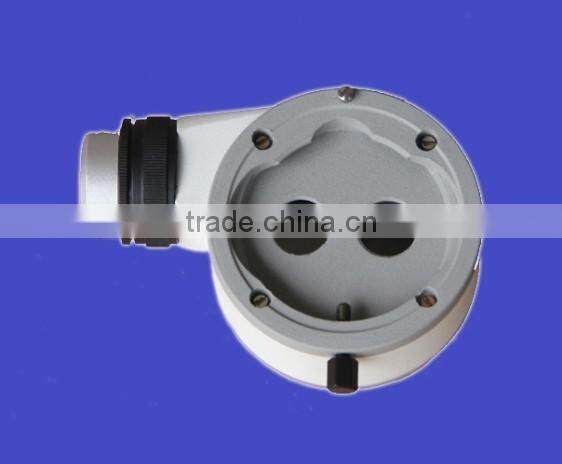

Beam splitter	Dismountable
Adaptor for CCD	With iris diaphragm, f’=65 mm
