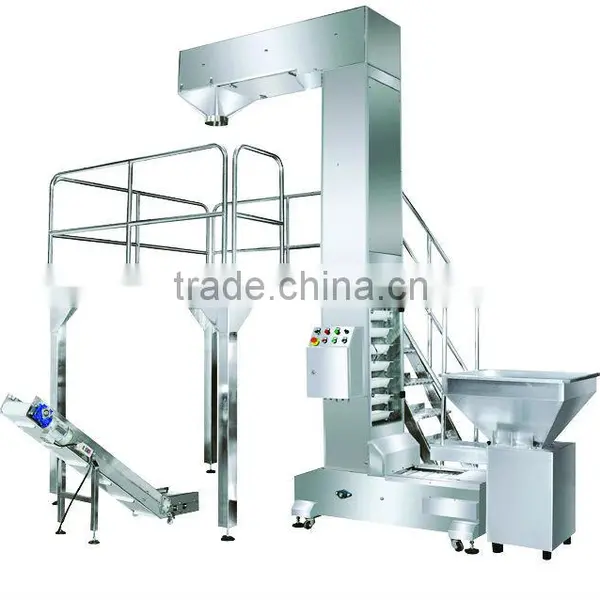

Vertical conveying machine

Specifications

1.Fully stainless steel #304
2.Machine Packed Dimension:2050mm(L)*1350mm(W)*980mm(H)
3.Bucket Volume:1.8L/3.8L/6.5L

FM-3B3 Conveyor Application: Bucket Elevators are very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals  and other granules.



1. The buckets are made of a food grade reinforced polypropylene, molded in one piece and  can handle temperatures from -10 to 120 degrees Fahrenheit.
2. The bucket elevators allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices

3. All parts have easy to remove inspection covers and a conveniently located inspection window. The buckets have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tensioning device and built-in overload protection.

4. The geared reducer motor drived the machine have a stable performance prolong the machine life and easy to maintenance.

5. Optional parts:

Stainless steel and  carbon steel.



Discharge options:

1.     Over the end discharge

2.     Single or multiple discharges

3.     anywhere in circuit available



Technical details:

Machine Model	Packing machine system for the solid
Bucket Volume	1.8L
Machine frame	Fully stainless steel #304
Production capacity	4-6.5m3/H
Outlet height	3296mm
Infeed length	863mm
Machine Packed Dimension	2050mm(L)*1350mm(W)*980mm(H)
Voltage	AC 220V Single phase or AC 380V ,3 Phase.50Hz;
Power	0.75KW
