Home > Products > New Products > Sony effio cctv camera High resolution

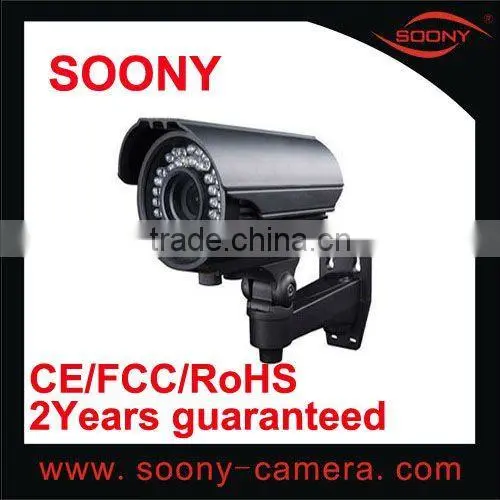

Sony effio cctv camera High resolution
USD $34.2 - $58.7
/ Piece
1 Piece(Min.Order)
- 50 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SOONY or OEM | Model Number: | SY-IR5287MW |
| Type: | Analog Camera | Style: | Bullet Camera | Sensor: | CCD |
| Technology: | Infrared | Special Features: | Waterproof / Weatherproof |
Product Description
Specifications
effio cctv camera100% cctv camera factory
Sony Effio cctv camera, high resolution
IP66 waterproof
CE/FCC/RoHS, 2Y warranty
Sony effio cctv camera High resolution
Specifications:
| Model | SY-IR5287MW | SY-IR5286MW | SY-IR5284MW | SY-IR5280HMW | SY-IR5280MW | SY-IR5282MW | SY-IR5283MW |
| Image Sensor | 1/3" SONY ICX673AK CCD | 1/3" SONY ICX639BK CCD | 1/3" SONY ICX639BK CCD | 1/3" SONY ICX633BK CCD | 1/3" SONY ICX633BK CCD | 1/3" SHARP RJ2321FA CCD | 1/4" SHARP RJ2421FA CCD |
| Horizontal Resolution | 700TV Lines Hi-sensitivity Effio, ATR, OSD NR | 600TV Line Hi-sensitivity, OSD | 540TV Line Hi-sensitivity | 480TV Line Hi-sensitivity | 420TV Line Hi-sensitivity | 420TV Line Hi-sensitivity | 420TV Line Hi-sensitivity |
| TV System | PAL/NTSC | ||||||
| Effective Pixels | PAL:976 (H)x494(V) NTSC:976 (H)x582 (V) | PAL:795 (H)x596(V), NTSC:811(H)x508 (V) | PAL:752(H)x582(V) NTSC:768(H)x494(V) | PAL:500(H)x582(v) NTSC:510(H)X492(V) | |||
| IR LED | 60pcs Ø5mm IR LEDs | ||||||
| IR project distance | 50meters | ||||||
| Lens | standard: 4-9mm manual zoom lens | ||||||
| 2.8-12mm lens are optional | |||||||
| Minimum Illumination | 0 Lux/F2.0 (LED ON) | ||||||
| IR Status | Under 10 Lux by CDS | ||||||
| IR Power On | CDS Auto Control | ||||||
| Scanning System | NTSC:525 Lines,60 Field/sec, | ||||||
| PAL:625 Lines 50 Field/sec | |||||||
| Sync System | Internal Synchronization | ||||||
| Gamma Characteristic | 0.45 | ||||||
| S/N Ratio | =65dB (AGC OFF) | =54dB (AGC OFF) | =48dB (AGC OFF) | ||||
| Electronic Shutter Time | NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; | ||||||
| Video Output | Composite Signal (1.0Vp-p, 75O), BNC | ||||||
| Gain Control(AGC | Auto | ||||||
| White Balance | Auto | ||||||
| Backlight Compensation | Auto | ||||||
| Operation Temperature | -10C~ +50C RH95% MAX | ||||||
| Storage Temperature | -20C~ +60C RH95% MAX | ||||||
| Waterproof | IP66 | ||||||
| Power Supply | DC12V,400mA | ||||||
| Dimension | 161(w) x 102(D) x94(H)mm | ||||||
| Weight | 1.55kg | ||||||
| Camera Case Color | default: black | ||||||
