Specifications
Replacement For Sony AC19V19 Series Laptop Adapters1.input:AC100-240V -50-60Hz
2.output:DC 59W
3.OVP,SCP,OCP

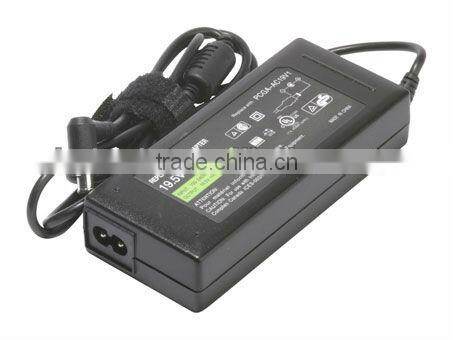

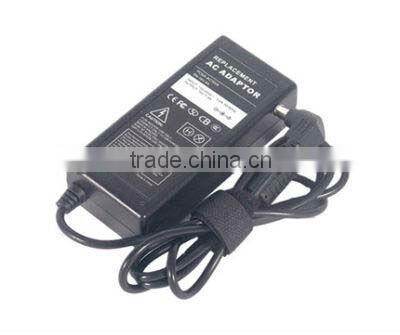

Replacement For Sony AC19V19 Series Laptop Adapters
1.Basic Info.
Model NO.: | Sony 19.5V 3.9A |
Output Type: | DC |
Connection: | Plug In |
Usage: | Laptop |
Power: | 76W |
DC Connector: | 6.5*4.4 |
Warranty: | Full One Year |
Export Markets: | Global |
2.Additional Info.
Trademark: | OEM also available |
Packing: | Master Box. Inner Box, |
Origin: | Shenzhen, China |
3.Technical specification:
Input voltage Rated Voltage: 100~240Vac |
Variation Range: 80V~280Vac Input Frequency Rated Frequency: 50/60HZ Variation Frequency: 47~63Hz |
Input current 0.5Amax. at any input voltage and rated, DC output rated load. |
Inrush Current 30Amax. @ 264Vac input Efficiency: 80% min at 100Vac input and output rated .Load. |
Turn on delay time: 80% min at 100Vac input and output rated .Load. 3S max. @ 100 Vac to 240 Vac input & Full load Rise time 20mS max. @ Rated load Hold up time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case |
Short circuit protection: The power supply will be auto recovered when short circuit faults remove. Over current Protection: The power supply will be auto recovered when over current faults remove Over Voltage Protection: The power supply will auto recovered when faults remove 120%~150%. |
Environmental requirement: Operating Temperature: 0~40°C ,full load , normal operation. Storage Temperature: -20~80°C with package Relative Humidity: 10%(0°C) ~90%(40°C) RH |
4.Compatible Part Numbers:
VGP-AC19V19, VGP-AC19V27, VGP-AC19V33, VGP-AC19V37
5.Fit for Models:
Sony Vaio VGN-NR Series:
VGN-NR11M/S, VGN-NR11S/S, VGN-NR11Z/S, VGN-NR11Z/T
Sony Vaio VGN-S3 Series:
VGN-S380, VGN-S380B, VGN-S380B/P, VGN-S380P
VGN-S3HP, VGN-S3VP, VGN-S3XP
Sony Vaio VGN-S4 Series,
Sony Vaio VGN-S5 Series,
Sony Vaio VGN-SZ Series,
6.Warranty:
1. We provide 1 year warranty.
2. Normal Production according to the sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems please feel free to contact us. You will receive a prompt reply from us
7.Remarks:
1. delivery time:10 days (if quantity more than 4000Pcs,it will subject to our final
confirmation)
2. Payment: TT or western Union,30% TT before produce,70% balance payed before delivery
