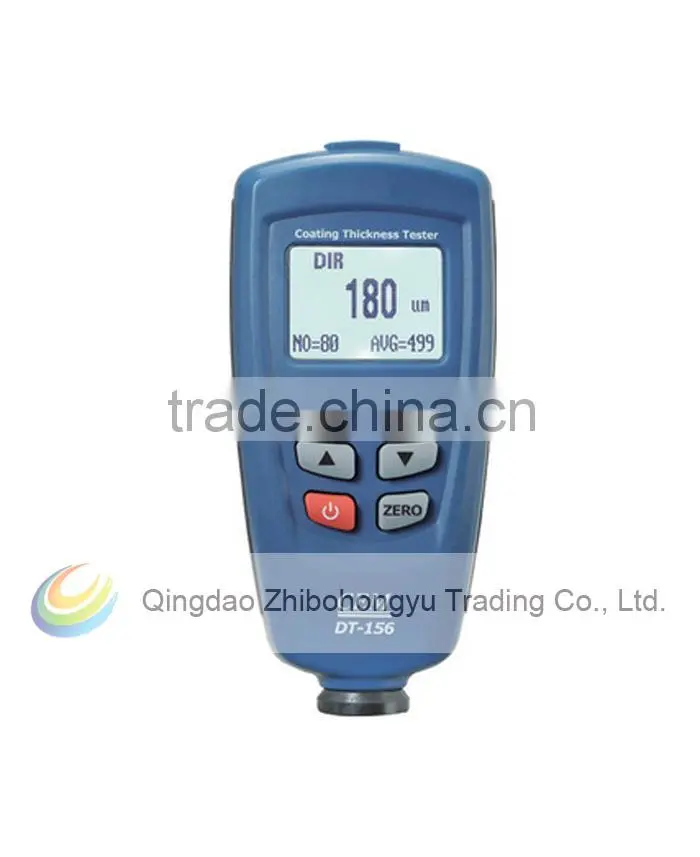

DT-156 Paint Gauge Auto F/NF Probe 1250 Micrometer V-groove Coating Thickness Meter

DT - 156 structure is introduced

1. The USB interface

2. Bring back light LCD display

3. "ok" menu mode; Working mode "into"

4. "exit and return" menu mode; Working mode "backlit keys"

5. Up/turn left/descending key

6. Increasing down/turn to the right key

7. Power on the key

8. Zero calibration key

9. The test probe

Features:

• Non-magnetic coatings (e.g. paint, zinc) on steel
• Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
• No-ferrous metals coatings on insulating substrates
• Easy MENU operation system
• Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
• Two measuring mode : CONTINUOUS and SINGLE mode
• Two Operating/working mode :
  • Direct mode : recommended for simple, quick & occasional measurements. Though can't be saved but hold up to 80 current readings + 5 statistics values
  • GROUP mode : permits measurement & storage of readings in a memory. 4 memory groups, 80 saved readings for each group
• Blue backlight display
• One-point calibrating and two-point calibrating independently for each working mode
• Zero calibration
• 400 Memory readings (80 DIRECT and 320 GROUP readingS)
• Delete functions
  • delete current data or last reading
  • delete all data and statistics of current work mode
  • delete group data including high & low alarm set value and 1 & 2 point calibrations
• High alarm and Error indication
• V-Groove on probe for small cylindrical parts
• Disable Auto-Power-Off function via MENU setting
• USB interface for PC software (compatible with windows 98/2000/xp/Vista/Win7)
• Built with highest quality electronics
• Conforms with the following industrial standards:

  • GB/T 4956-1985
  • GB/T 4957-1985
  • JB/T 8393-1996
  • JJG 889-95
  • JJG 818-9

Set Includes:

• 1 x Paint Coating Thickness Tester
• 5 x Calibration Foil
• 1 x Iron Substrate
• 1 x Aluminum Substrate
• 1 x Protective Carrying Case
• 1 x USB cable
• 1 x CD Softwar
• Instruction Manual
