excellent deflecting capacity temperature resistance silicone coated glass cloth with high voltage load high strength

Specifications

silicone coated glass cloth
1.good electric
2.temperature resistance
3.resistance to oxygen and sunlight

     silicone coated glass cloth

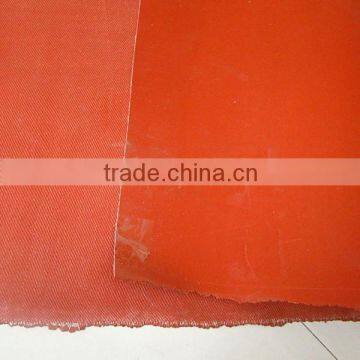

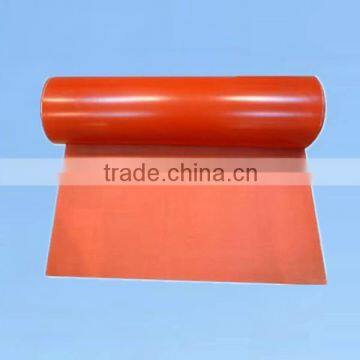

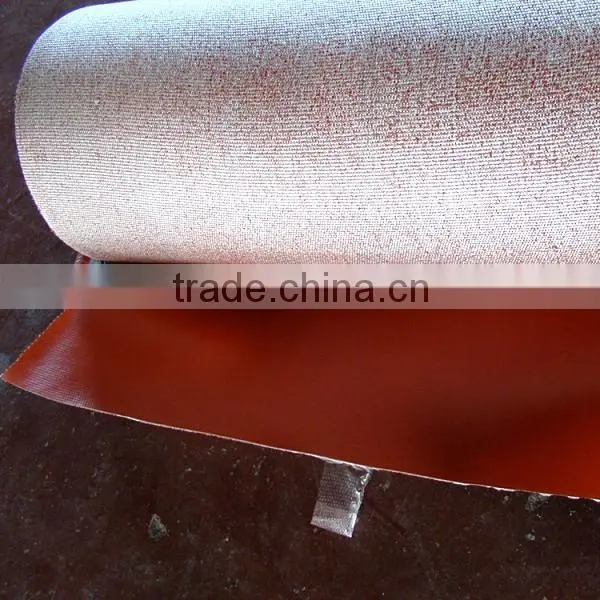

silicone coated glass cloth are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated and rolled with silicone rubber, which is a brand new product with good performance and multiple applications.

Features of silicone coated glass cloth:
1,temperature resistance, it can continuously work under -70°C to 280°C.
2,weatherability: resistance to ozone, oxygen, sunlight and aging, long using life up to 10 years.
3,good electric insulator, dielectric constant 3~3.2, break down voltage between 20~50KV/mm.

Applications of silicone coated glass cloth:
1,Electric insulation: it features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.
2,Non-metallic compensator: used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction.
3,Anti-corrosion sector: It is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength.
4,Others: Apart from above application, it can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.

Technical data sheet of silicone coated glass cloth:

Item	Thickness (mm)	Breaking strength (n/50mm)	Bursting strength mpa	Combustible	Width (mm)
S013	0.13	1500/1200	2.0	≤25%	0--1500
S025	0.25	1800/1500	2.1	≤25%	0—1500
S040	0.40	2000/1600	2.2	≤25%	0—1500
S050	0.50	2200/1800	2.3	≤25%	0—2000
S060	0.60	2400/2200	2.4	≤25%	0—3000
S070	0.70	2500/2300	2.4	≤25%	0—3000
S080	0.80	2600/2400	2.5	≤25%	0—3000
S090	0.90	2800/2600	2.5	≤25%	0—3000
S100	1.00	3000/2800	2.6	≤25%	0—3000
S120	1.20	3400/3000	2.5	≤25%	0—3000
S150	1.50	3700/3300	2.3	≤25%	0—3000
S200	2.00	4200/3800	2.2	≤25%	0—3000













As a manufacturer, strong R&D capacity,high quality, reasonable price and timely service are our advantages.
