China manufacturer supply ptfe teflon coated fiberglass fabrics and cloth exporter superior for grinding wheel with high quality

Specifications

ptfe teflon coated fiberglass fabrics and cloth
1.good electric insulator
2.temperature resistance
3.eco-friendly

 ptfe teflon coated fiberglass fabrics and cloth

ptfe teflon coated fiberglass fabrics and cloth is made up of high capability fiberglass which has steeped into PTFE. It is a new product with high capability and multiform function of complex material.

Product Hierarchy:

As the largest supplier in China,Fleet offers a series of ptfe coated fiberglass fabric with following different grades:

lIndustrial grade: Be  used for most applications requiring non-sticking, chemical resistance  and superior heat resistance up to 320°C;

lStandard grade: with enhanced wear resistance, smoothwith shiny surface.It is ideal to utilize as non-stick baking and cooking sheets;

lFood contact grade:produced with DuPont nonPOFA PTFE dispersion, strict processing control.

lConductive & Antistatic grade: could tailormake antistatic grades with the surface electric resistance 105~108.

Application of ptfe teflon coated fiberglass fabrics and cloth:

lRelease liners at high temperature:  oven baking,grilling sheets, microwave liners, non-stick mould release,interlining sheets

lHigh temperature conveyor belts for numerous applications: fuse pressing lamination of fashion garments, belts for the packaging industry, textile drying industry, lamination solar panels, chemical and pharmaceutical conveyor belts

 lSealant fabric for expansion joints and oil tanks flexible covers

 lInsulation jacketing for pharmaceutical and petrochemical industry



 lLaminating layer of high frequency PCB



Technical data sheet of ptfe teflon coated fiberglass fabrics and cloth:



Item	color	thickness	width	weight	Tensile strength	Temp-Resistance
H008AJ	brown	0.08mm	1250mm	165g/m²	130/120N/cm	-140 to 360°C
H008BJ	black	0.08mm	1250mm	170 g/m²	130/120N/cm	-140 to 360°C
H008Y	black	0.08mm	1250mm	185 g/m²	130/120N/cm	-140 to 360°C
H013AJ	brown	0.13mm	1250mm	260 g/m²	220/190N/cm	-140 to 360°C
H013BJ	black	0.13mm	1250mm	275 g/m²	220/190N/cm	-140 to 360°C
H013Y	black	0.13mm	1250mm	290 g/m²	220/190N/cm	-140 to 360°C
H018AJ	brown	0.18mm	1250mm	395 g/m²	330/250N/cm	-140 to 360°C
H018BJ	black	0.18mm	1250mm	415 g/m²	330/250N/cm	-140 to 360°C
H025AJ	brown	0.25mm	2800mm	490 g/m²	410/330N/cm	-140 to 360°C
H025BJ	black	0.25mm	2800mm	510 g/m²	410/330N/cm	-140 to 360°C
H035AJ	brown	0.35mm	3200mm	660 g/m²	560/445N/cm	-140 to 360°C
H035BJ	black	0.35mm	3200mm	680 g/m²	560/445N/cm	-140 to 360°C
H040AJ	brown	0.40mm	3500mm	780 g/m²	820/500N/cm	-140 to 360°C
H040BJ	black	0.40mm	3500mm	820 g/m²	820/500N/cm	-140 to 360°C
H065AJ	brown	0.65mm	4000mm	1150 g/m²	1080/750N/cm	-140 to 360°C
H090AJ	brown	0.90mm	4000mm	1550 g/m²	1500/1250N/cm	-140 to 360°C
H090BJ	black	0.90mm	4000mm	1650 g/m²	1500/1250N/cm	-140 to 360°C

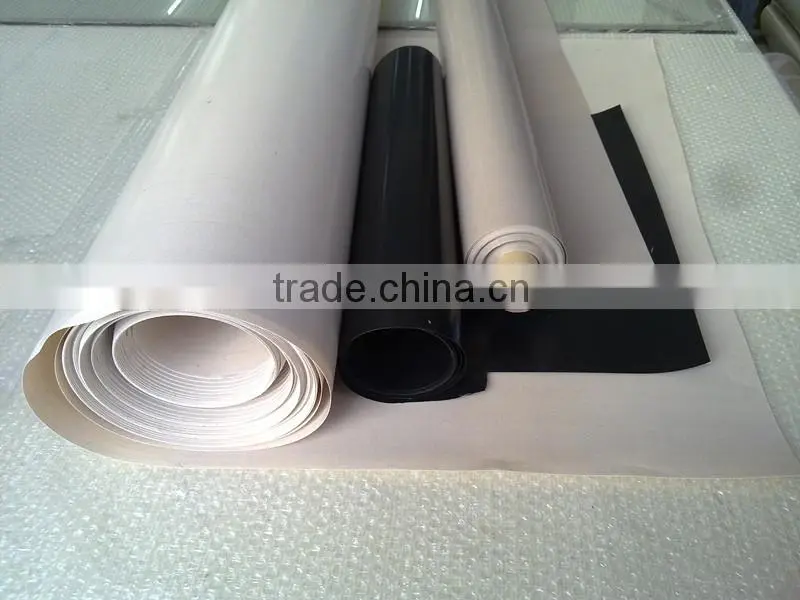

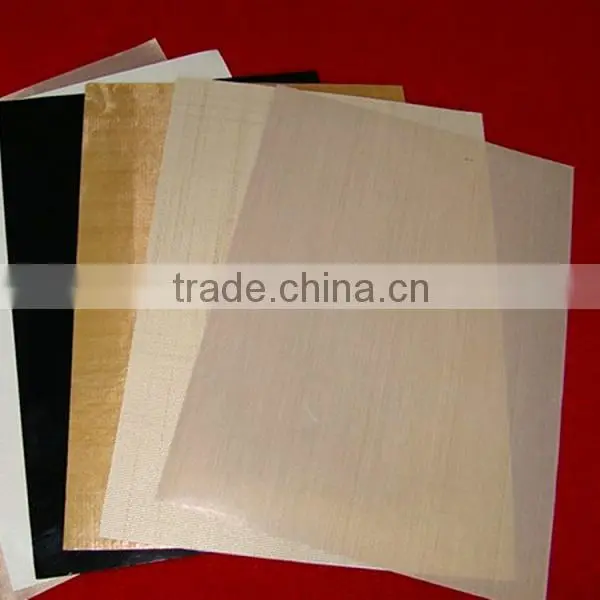

Product Pictures of  ptfe teflon coated fiberglass fabrics and cloth:



Fleet has always closely worked DuPont, with the authorization of using “TEFLON” trademark.

ptfe teflon coated fiberglass fabrics and cloth apply in PTFE baking mat with FDA complied.

ptfe teflon coated fiberglass fabrics and cloth apply in making conveyor belt with edge reinforcement, overlap joint as customer’s request.

 About factory:

Finished product warehouse of ptfe teflon coated fiberglass fabrics and cloth:



As a manufacturer, strong R&D capacity,high quality,reasonable price and timely service are our advantages.
