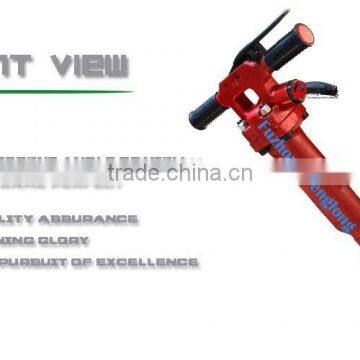

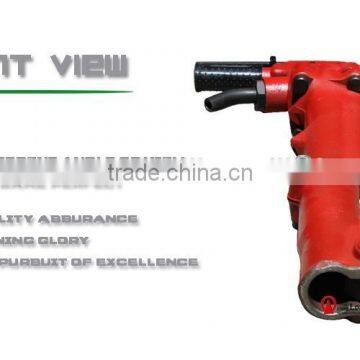

TPB 40 Jack Hammer

Place of Origin:

Fujian China (Mainland)

Brand Name:

CHL

Model Number:

TPB-40

Type:

Air Hammer

Average Air Consumption:

2.0m3/minute

Maximum Torque:

35

No-Load Speed:

2225

Name:

Air Forging Hammer

Model:

TPB-40

Air consumption:

1.62m3/minute

Working pressure:

0.63Mpa

Hose size:

19mm

Weight:

18kg

Piston diameter:

57.15mm

Piston stroke:

146mm

Impact frequency:

1250time/min

Lenght:

645mm

Model

TPB-40

TPB-60

TPB-90

Piston diameter

44mm

57.15mm

66.67mm

Piston stroke

100mm

146mm

152mm

Impact frequency

900 minute/Time

1250 minute/Time

1400 minute/Time

Net weight

18kg/39.6lbs

30kg/60lbs

42kg/92.4lbs

Total length

660mm

645mm

723mm

Air consumption

1.6m3/minute

2.0m3/minute

2.2m3/minute

Hose size

19mm(3/4inch)

19mm(3/4inch)

19mm(3/4inch)

Shank specifications

1×4-1/4  25X108

1×4-1/4  25X108

1×4-1/4  25X108

Inlet size

3/4pt

3/4pt

3/4pt

Air pressure

0.63Mpa

0.63Mpa

0.63Mpa
