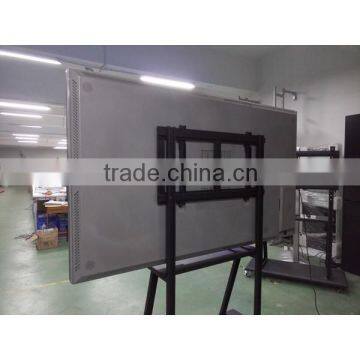

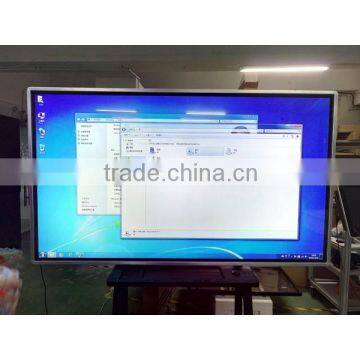

84 inch multi point touch screen kiosk

Chinese/English OSD menu, easy to operate

Aluminium alloy frame, ultra-thin design, easy to use, fashionable appearance

Adopt the latest 3D digital decoding and image noise reduction technology

Automatic elimination of ghosting function, protecting long-term use of LCD screen

A variety of digital images to correct circuit, minimize image distortion

16.7M color depth, image is more natural and smooth

6ms fast response time, no shadow or tail in picture

Built-in power supply, low consumption, longer life time

Equipped with sensitive infrared receiver, can adjust the parameters of the display via remote control

LCD

Model No.

XS-8400HD-TW

Panel

84” LG panel

Display Ratio

16:9

Resolution

3840(H)x2160(V)

Contrast

1400:1

Response Time

5ms

Brightness

500cd/m2

Viewing Angle

178/178(H/V)

Backlight

LED

Color

16.7M

Display Area

1860.48x1046.52mm

Scan Frequency

120HZ+120HZ

PC

Mainboard

Intel

Graphics

Integrated graphics

CPU

Intel i3 dual-core 1.7GHZ

RAM

Kingston 4G  DDR3   1333MHZ

HDD

128G SSD

Built-in Network

RIT  80111F

Other Interface

RJ45, Audio, Mic

HDMI Output

x1

VGA Output

x1

TV Function

HDMI1/HDMI2 dual input

Yes

VGA Input

Yes

AV Audio In/Out

L/R

AV Video In/Out

Yes

TV Cable Interface

Yes

USB

X1, Support video and picture play from U disk

Headphone Output

Yes

5+5W Speaker

5+5W

Touchscreen

Touch Points

4 points (multi-point optional), IR touch

Resolution

4096x4096

Positioning Accuracy

±2mm

Linear Error

3mm

Scan Speed

50scans/s

Input Method

Finger touch or other opaque medium

Luminousness

>98%

Min Touch Diameter

5mm

Touch Times

Unlimited

Persistence

More than 60 million times single-touch

Surface Hardness

Mohs 7

Interface

USB(default)

Screen Characters

No drift, no change with the environment,  anti-glare

OS

WIN2000/XP/2003/ViSta/WIN7/Android4.0

Working Environment

Working Temperature

0℃-40℃

Storage Temperature

-20℃-60℃

Storage Humidity

5%-95%

Working Humidity

10%-90%RH

Others

Overall Dimension

1942(W)x1126(H)x75(D)mm

Power Consumption

Max 580W , standy 5W

Power Supply

AC110-240V 50/60HZ
