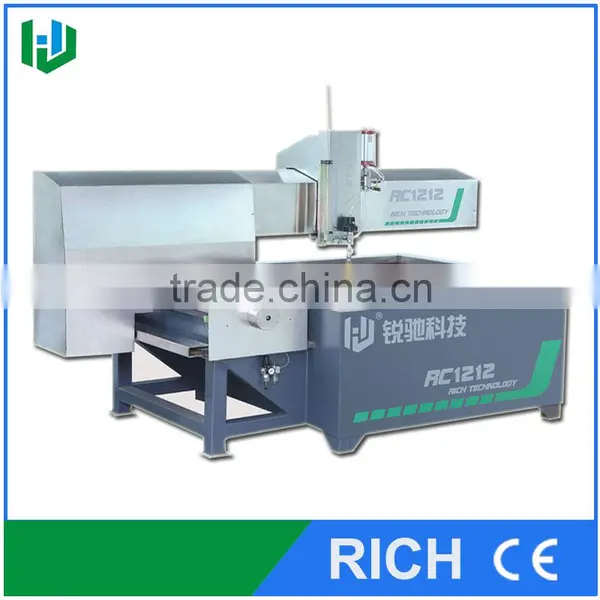

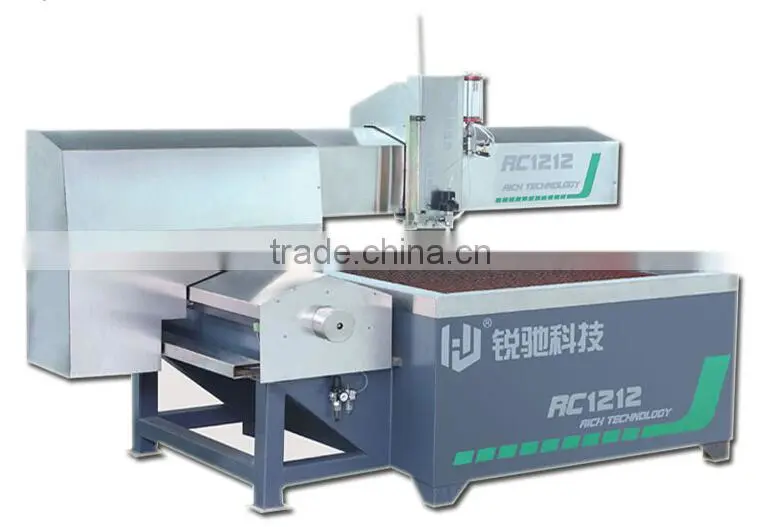

CNC glass cutting machine with high pressure water jet pump

 What is our waterjet cutting machine specific parameters?

Waterjet cutting table	Parameter
	1.Structure:3-axis Bridge
	2.Processing dimension:1200mm*1200mm
	3.Cutting table size:1300mm*1300mm
	4.Stroke:X-1200mm,Y-1200mm,Z-60-80mm
	5.Cutting accuracy:±0.1mm
	6.Repeat positioning accuracy:±0.05mm
	7.Ball-screw and linear guide uses oil-immersed to keep in good repair
	8.People can choose to add the extra flip platform
Intensifier pump box	Parameter
	1.Type of pressurization:hydraulic.
	2.Main motor power:37KW (SIEMENS)
	3.Maximum pressure:450MPa
	4.Normal operating pressure:350-380MPa
	5.Power supply:415/350/220V AC 3P
	6.Cooling: water-cooled(you also choose wind or oil cooling)
	7.Accumulator(adopted Taiwan imported High pressure material)
	8.Man-machine can show you some alarm records, for example, lack of water or oil, leak water or oil, over pressure, over temperature,etc
CNC controller	Parameter
	1.CNC control, apply 17 inch LCD
	2.WIN XP system, compatible ASC,IGS,DXF and DWG, etc graphic design software
	3.It can also send and receive files by internet TCP/IP , USB port and PC.
	4.Adopt specialized water jet cutting CAD/CAM software
	5.Servo Driver from Japan(Yaskawa )
Auto abrasive supply	Parameter
	1.Pneumatics technology support, safe and reliable.
	2.It can provide sand with 2 waterjet cutting machine at the same time.
	3.Store 200kg of sand at a time
	4.The worker can add the abrasive directly without stop the waterjet cutting machine

Our waterjet cutting machine is safe and easy to operate!

1.About safe?How?

The waterjet cutting machine is the ultra high pressure equipment.

If the pressure is unstable when it working,  it is easy to cause the safety accidents.

This is our double oil way structure,one way is some oil will go inside the oil tank, and the other one is some oil will go to the water cooling tank. So wen can control the oil temperature very well.

2. Why our waterjet cutting machine is easy to operate?

 This is one of our technology development.The worker not only can operate the machine directly but also can monitor the machine.

This part could show the internal information and operation state of machine.So the worker will know what is the problem with the machine and solve these problem in first time.

What is the mainly applications of our waterjet cutting machine?

1.Ceramic tile block floor

2.marble background wall

3.glass mosaic

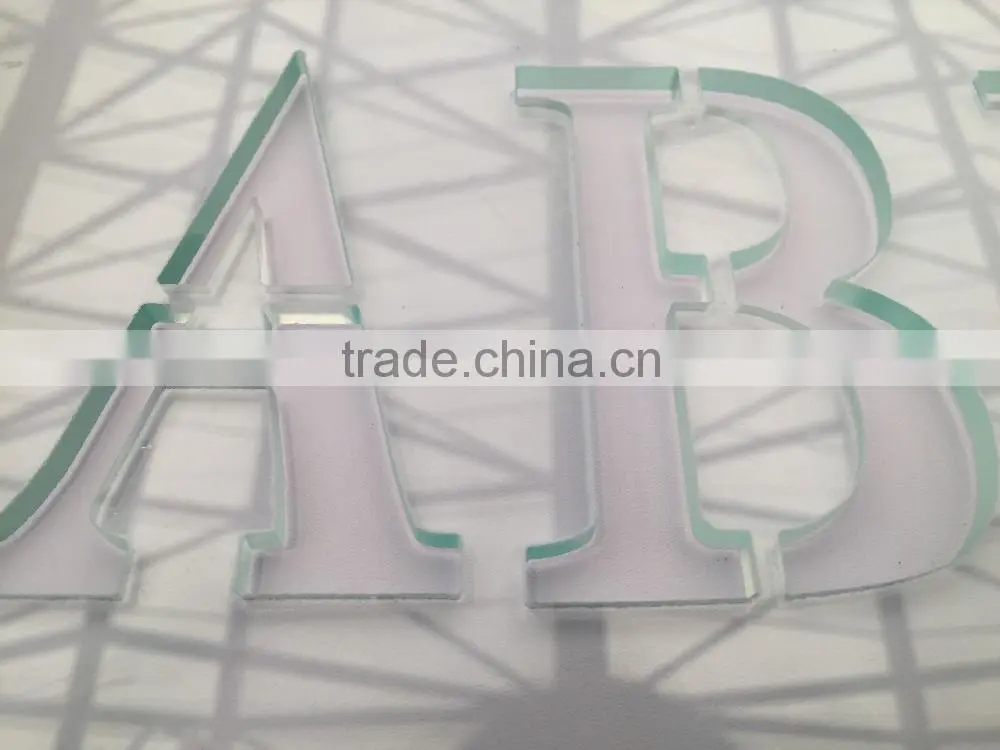

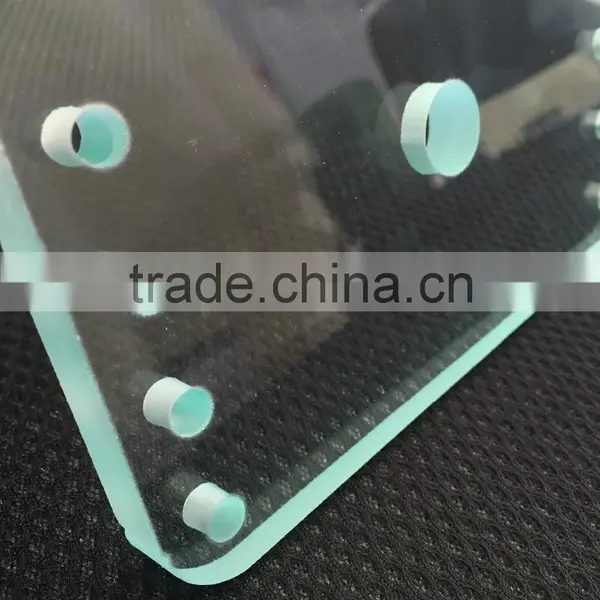

Cutting sample

Overseas service is avaiable. Our engineers will help you about the installation.

The client can send two workers to our factory for 10 days free training every year.

Technical Training:
1. UHP Intensifier principle.
2. Waterjet spare parts replacement.
3. Elimination of normal troubles.
4. Equipment  maintenance and operation.
5. On-off valve, cutting head and abrasive controller maintenance.
6. Drawing designing and programming.
7. Software operating, parameters setting and saving.

Foshan RICH Waterjet Cutting Machine Co., Ltd. is a professional manufactory for waterjet cutting machine and spare parts.

We're specialized in producing waterjet cutting machine and spare parts more than 8 years, and rich maintain experience. We could offer any spare parts of waterjet cutting machine.

As a professional manufacture, we can meet all your requirements with the good quality and competitive price. We will use professional efficiency to create value for you.

Why choose RICH waterjet cutting machine?

1.we only specialized in waterjet cutting machine and waterjet spare parts, so that we can supply the spare parts with low price and good quality.

More than 70% water jet cutting machine factory in Guangdong purchase the spare parts from us.
2.We have focus on this line more than 8 years.
3.RICH is the first one manufacturer who development the man-machine touch screen dialogue controller in China.
4.RICH waterjet is easy to operate and maintain.

5.Our professional after-sales team will help you solve the problem at first time.
