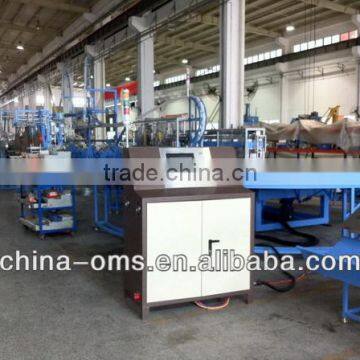

Serpentine Tube Cutting& Bending Machine

Serpentine tube bending machine

 Mahine name: Serpentine tube cutting &bending machine

 Model TCBM10-10/ RL1

Machine purpose: This machine is used in the refrigeration industry. It cut tubes into set length, and bend the tubes into serpentine shape in a automatic and continuous way. It integrated decoiling, straightening, cutting and bending functions in one machine.

Processing material  coiled pipe ( steel, copper, aluminum)
Processing pipe diameter and wall thickness: OD6mm* WT0.5mm

Cutting Part

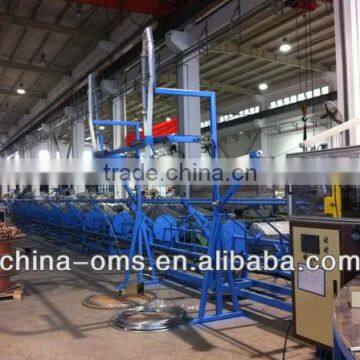

Decoiler mode: Eye-to-sky decoiler
Feeding method: Feeding by steel roller
Max feeding speed: 2m/seconed
Cutting  method:  by spin cutter, complete cutting Cutting tolerance:  ± 3 mm/10m, ± 5 mm/23m

Bending Part
Feeding mode:Servo motor driving
Feeding  tolerance:  ± 0.5 mm
Speed of  feeding:   0-1000 mm/ sec
Bending  direction: Left bending, and right bending ( by servo motor )
Bending angle : 0- 200 degree
Speed of  bending:   0-120 degree/ sec
Bending Radius:  R17( Radius must be unified for each bending . Change bending tooling for different R)
Max pipe bent at one time:   10 pipes
Max number of bends:  50 bends
Max. pipe length before bending: 40m

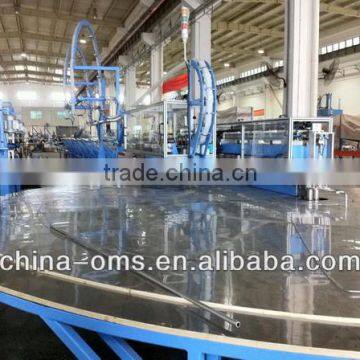

Rotation table diameter/height: OD4000mm, outside 400mm safety protection.  Height: 900mm

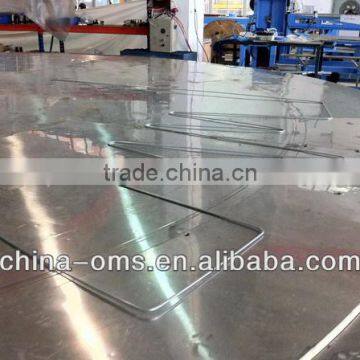

Unloading mode of finished serpentine pipes: finished serpentine pipes can be pulled out by air cyliner,but it needs worker to take them off the table.

Machine memory capacity:  36 programs
Machine efficiency: 120 tubes/hour (when cutting length is 40m)

Air pressure 0.5~0.7MPa
Total power  10KW
Power supply  3 phase 4 line  380v /50hz   or according to customer requirements

Main components brand :
Pneumatic componenets:  AIR TAC, SMC
Servo system and PLC controller: MISTSUBISHI (JAPAN)
Electronic componenets  SIEMENS, IDEC, PANASONIC, SCHNEIDER, etc.

  The machine will be packed in a way that is suitable for sea transportation.

We have service center in USA, Thailand.

We can send engineers and technicians overseas for maintenance if needed.
