Home > Products > Heat shrinkable tube > Flexible Flame Retardant Eco-friendly 18650 Battery Heat Shrink Tubing
Flexible Flame Retardant Eco-friendly 18650 Battery Heat Shrink Tubing
- 1000000 Meter / Meters per Month
- Shenzhen
You May Like
-
Hot Sale Adhesive Medium Wall Heat Shrink Tube in USA
-
With ISO 9001:2008 Standard UL Waterproof Eco-friendly 3:1 Polyolefin Heat Shrink Tubing
-
Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover
-
"Heat-molded" Off-the-shelf Super-tacky X Nonslip Heat Shrink Grip for Lacrosse Shafts
-
Cold Weather/Rain works well X Heat Shrink Grip for Girls Sticks
-
UL Recognized Nonslip X Heat Shrink Lacrosse Stick Grips
Product Details
Place of Origin | Guangdong, China | Brand Name | SUNBOW | |
Model Number | SB-PVC-HST | Type | Insulation Sleeving | |
Material | PVC | Application | Other, Low Voltage, Batter Packing, Broom Cover... |
Product Description

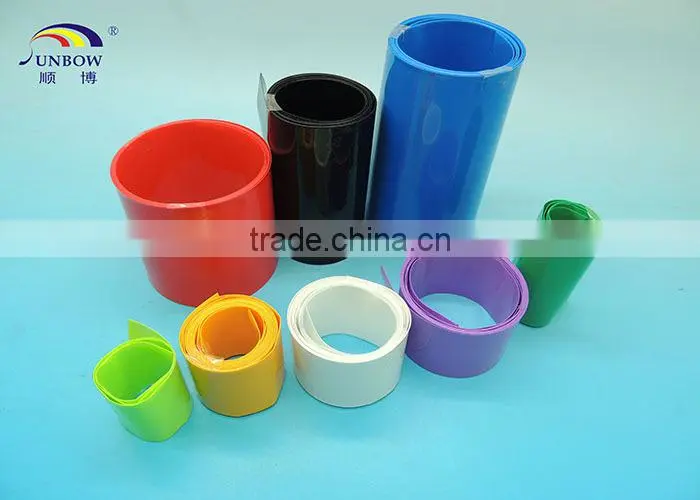

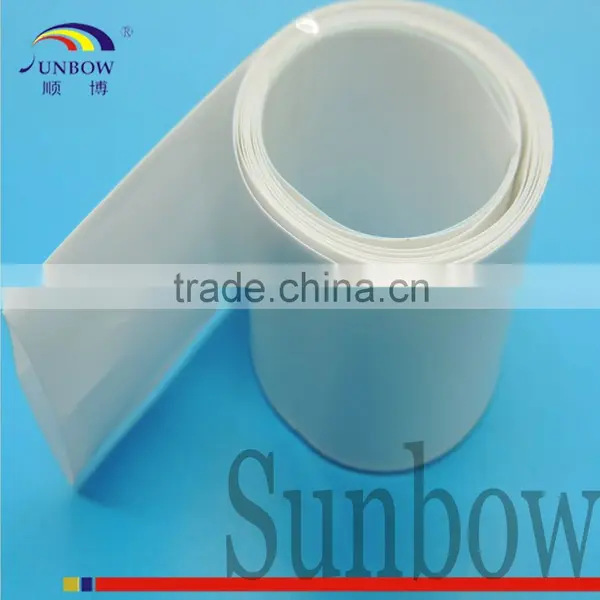

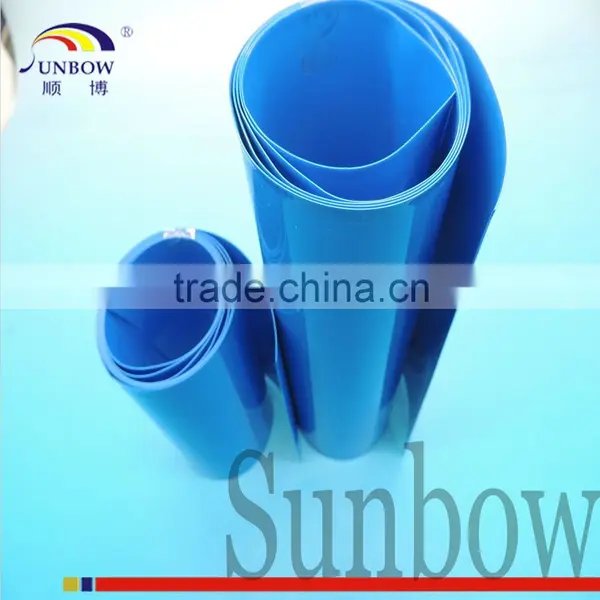

Flexible Flame Retardant Eco-friendly 18650 Battery Heat Shrink Tubing
PRODUCT DESCRIPTION
Flexible Flame Retardant Eco-friendly 18650 Battery Heat Shrink Tubing is produced with excellent and environmental protective PVC colloidal particle, treated by evaporation, then extruded to tubing when heated up and liquated by extruding machine, and coiling packed after cooling.
APPLICATION
Flexible Flame Retardant Eco-friendly 18650 Battery Heat Shrink Tubing possesses excellent flexibility, mechanical and dielectric capability, flame resistance, low temperature shrinkageSunbow Shrink Wrap Sleevings for Battery etc. It is widely applied in outside insulating protection of outgoing wires of electrical appliances, motors, sensors and transformers, bunchy wires and electronic components, gaseous, liquid pipelines etc.
SPECIFICATION
Property | Test Method | Standard |
Tensile Strength |
| ≥4000Pa/m2 |
Dielectric Voltage Withstand | 10 seconds | ≥8KV |
Volume Resistivity | Normal Temperature Relative Temperature≤65% | ≥1015Ω/cm3 |
Resistance to Second Shrinkage | 185ºC 15 seconds | ≤20% |
Resistance to Second Shrinkage | Dipping in 160ºC Silicone Oil after Recovered with Capacitors for 3 minutes | Excellent Appearance |
WORKING TEMPERATURE
-30°c ~ 105°c
DIMENSION
No | Size(mm) | Lay Flat Width(mm) | |
1 | Φ2.8 | 4.7±0.5 | |
2 | Φ3.2 | 5.5±0.5 | |
3 | Φ4.0 | 7.0±0.5 | |
4 | Φ5.0 | 8.7±0.4 | |
5 | 9.0±0.4 | ||
6 | 9.3±0.4 | ||
7 | Φ6.0 | 10.5±0.4 | |
8 | 10.8±0.4 | ||
9 | 11.0±0.4 | ||
10 | Φ7.0 | 12.2±0.5 | |
11 | Φ8.0 | 13.5±0.5 | |
12 | 13.8±0.5 | ||
13 | 14.1±0.5 | ||
14 | Φ9.0 | 15.3±0.5 | |
15 | Φ10 | 16.5±0.5 | |
16 | 16.8±0.5 | ||
17 | 17.1±0.5 | ||
18 | Φ11 | 18.0±1.0 | |
19 | Φ12 | 20.0±1.0 | |
20 | Φ12.5 | 21.0±1.0 | |
21 | Φ13 | 21.5±1.0 | |
22 | Φ13.5 | 22.5±1.0 | |
23 | Φ14 | 23.5±1.0 | |
24 | Φ14.5 | 24.0±1.0 | |
25 | Φ15 | 24.5±1.0 | |
26 | Φ16 | 26.5±0.5 | |
27 | 27.0±0.5 | ||
28 | Φ16.5 | 27.5±1.0 | |
29 | Φ17 | 28.0±1.0 | |
30 | Φ18 | 29.5±1.0 | |
31 | Φ19 | 31.0±1.0 | |
32 | Φ20 | 32.5±1.0 | |
33 | Φ21 | 34.0±1.0 | |
34 | Φ22 | 35.5±1.0 | |
35 | Φ23 | 36.5±1.0 | |
36 | Φ24 | 39.0±1.0 | |
37 | Φ25 | 41.0±1.0 | |
38 | Φ25.4 | 41.5±1.0 | |
39 | Φ26 | 43.5±1.0 | |
40 | Φ27 | 45.0±1.0 | |
41 | Φ28 | 46.5±1.0 | |
42 | Φ29 | 48.5±1.5 | |
43 | Φ30 | 50.0±1.5 | |
44 | Φ33 | 52.0±1.5 | |
45 | Φ34 | 56.5±1.5 | |
46 | Φ35 | 58.0±1.5 | |
47 | Φ38 | 63.5±1.5 | |
48 | Φ40 | 65.0±2.0 | |
49 | Φ42 | 69.0±2.0 | |
50 | Φ45 | 72.5±2.0 | |
51 | Φ46 | 74.0±2.0 | |
52 | Φ48 | 77.5±2.0 | |
53 | Φ50 | 82.0±2.0 | |
54 | Φ55 | 90.0±2.0 | |
55 | Φ60 | 97.0±2.0 | |
56 | Φ65 | 106.0±2.0 | |
57 | Φ70 | 112.0±2.0 | |
58 | Φ75 | 122.0±2.0 | |
59 | Φ80 | 131.0±2.0 | |
60 | Φ85 | 135.0±2.0 | |
61 | Φ93 | 143.0±2.0 | |
62 | Φ95 | 150.0±3.0 | |
63 | Φ103 | 160.0±3.0 | |
64 | Φ109 | 167.0±3.0 | |
65 | Φ116 | 178.0±3.0 | |
66 | Φ130 | 198.0±4.0 | |
67 | Φ142 | 218.0±4.0 | |
68 | Φ154 | 238.0±4.0 | |
69 | Φ161 | 248.0±4.0 | |
70 | Φ167 | 258.0±4.0 | |
71 | Φ180 | 278.0±4.0 | |
72 | Φ190 | 294.0±4.0 | |
73 | Φ200 - Φ250 |
Remarks: Flat width ≤70mm, wall thickness 0.05mm
Flat width ≥70mm, wall thickness 0.08mm
Flat width ≤ 300mm, the max wall thickness 0.2mm
300mm≤ Flat width ≤400mm, the max wall thickness 0.15mm
Flat width ≥ 400mm, the max wall thickness 0.12mm
Other sizes can be customized.
FREQUENTLY ASKED QUESTIONS
Q1. You are a factory or trading company?
We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
Normally, 2000m per size.
Q4. What are your payment terms?
T/T 100% or West Union
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) ISO 9001 : 2008 TS 16949 standard factory manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
YOU CAN SEND YOUR DETAILED INQUIRY FOR FREE SAMPLES AND PLEASE CLICK "SEND" NOW!
