6.3ton DongFeng Truck-Mounted Crane
- 400 Set / Sets per Month
- Shanghai
- T/T
Product Details
| Condition: | New | Application: | Transportation, Construction | Rated Loading Capacity: | 4500kg |
| Rated Lifting Moment: | 11.8T.m | Max. Lifting Load: | 6300kg | Max. Lifting Height: | 11m |
| Span: | 900mm | Place of Origin: | Hubei, China | Brand Name: | jiangte |
| Model Number: | JDF5121JSQD | Certification: | CCC | Warranty: | One year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
6.3ton DongFeng Truck-Mounted Crane
Why choose this 6.3ton DongFeng Truck-mounted crane:
1. This truck-mounted crane is Dongfeng chassis, Dongfeng automobile is one of the largest vehicle manufacturer in China.
2. The engine is Cummins brand, world famous engine producer, features of longer lifetime, less fuel consumption, easy maintance.
3. The crane is telescopic boom type, with max lifting capacity 6300kg at 2.1m, also could option folding boom crane to be mounted.
4. We adopt XCMG, SMJ, Zoomlion high quality craned to be mounted on trucks, the crane have a quality assure.
5. Accept right hand drive orders.
Our service
1. Answer your question within 24 hour.
2. one year of warranty since bill of lading on board date
3. provide english operation manual, english maintance manual
4. free trainning in our factory if customer need.
Specification of Dongfeng truck-mounted crane:
Vehicle name | DongFeng Truck-mounted crane | |
Manufacturer | Hubei Jiangnan Special Automobile Co.,Ltd | |
Condition | Brand new | |
Cabin | Single row with sleeper bed, 3 seats | |
Drive type | 4x2 | |
Wheel base | 5100 mm | |
Overall dimension (L*W*H) | 9000×2500×3560 mm | |
GVW | 12090 kg | |
Curb weight | 8095 kg | |
effective payload weight | 3800 kg | |
Engine | Engine model | YC4E160-33 |
Rated power / Displacement | 118 kw (180 hp) / 4260 ml | |
Engine make | Guangxi Yuchai Power | |
Emission standard | Euro 2 | |
Tire type | 12.00-20 | |
Inside dimension (L*W*H) | 5800*2294*550 (mm) | |
Crane maxing lifting capacity | 6300kg | |
Boom type | telescopic boom, 4 section (optional knuckle boom) | |

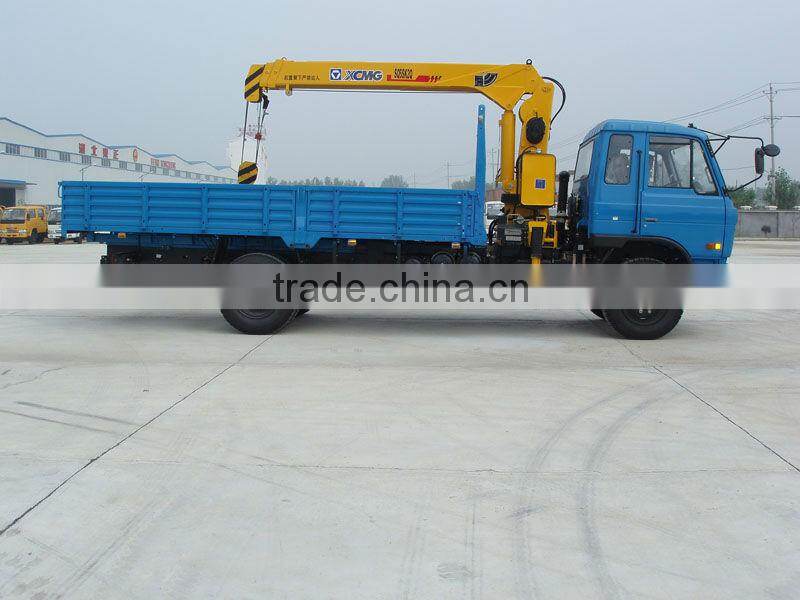

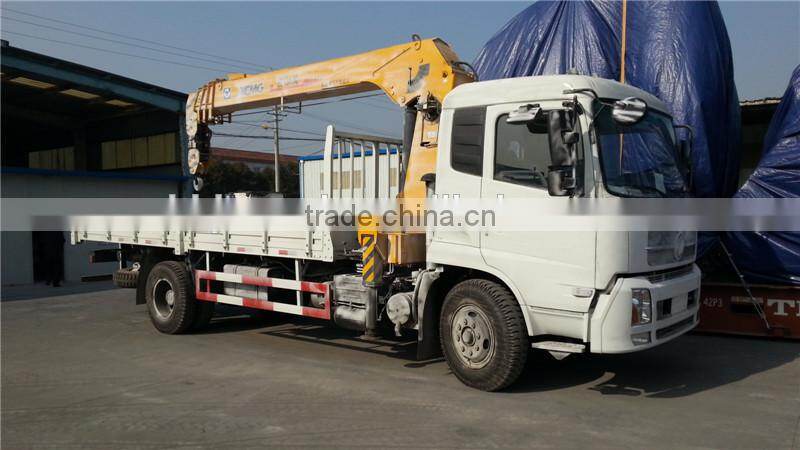

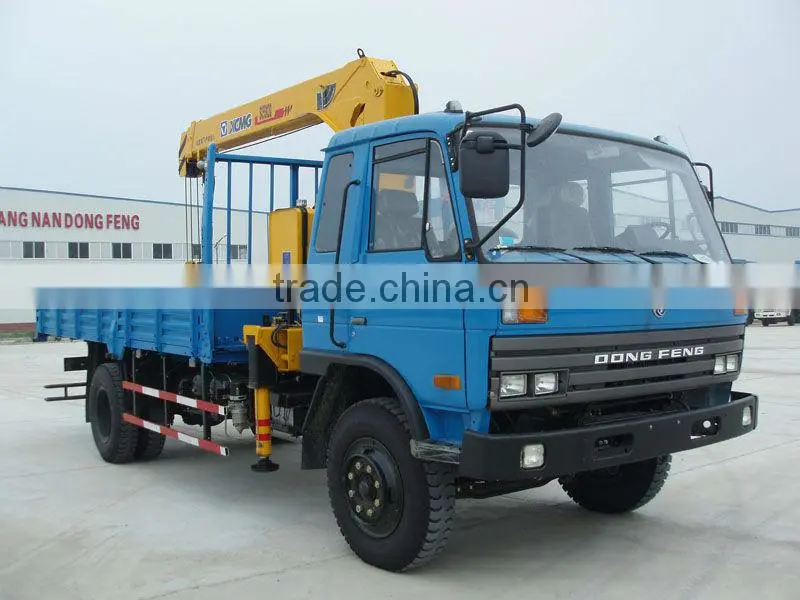

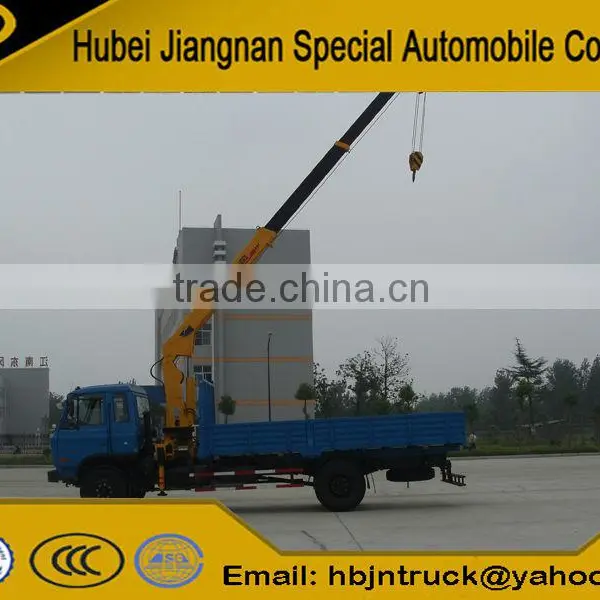

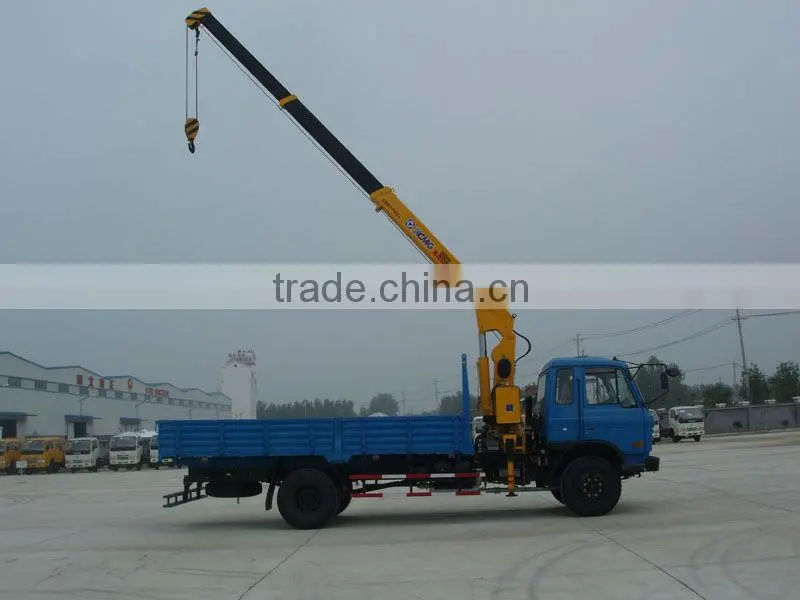

The image of DongFeng Truck-Mounted Crane:
Beside Dongfeng truck-mounted crane, we also manufacture Sinotruck truck-mounted crane (Howo truck-mounted crane, Steyr truck-mounted crane, Golden truck-mounted crane, Huanghe truck-mounted crane), Jiefang truck-mounted crane, JAC truck-mounted crane, Foton truck-mounted crane, Beiben truck-mounted crane, Shacman truck-mounted crane, JMC truck-mounted crane, XCMG truck-mounted crane.
We produce knuckle boom truck-mounted crane, telescopic boom truck-mounted crane to be mounted on truck, tractor, truck trailer, dump truck. optional brick block, air chair, and 4 pcs of hydraulic outriggers to be mounted according to customer requirement.

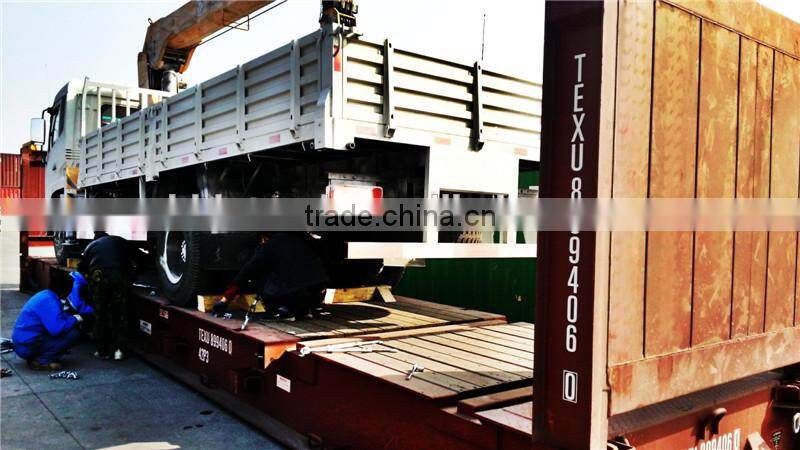

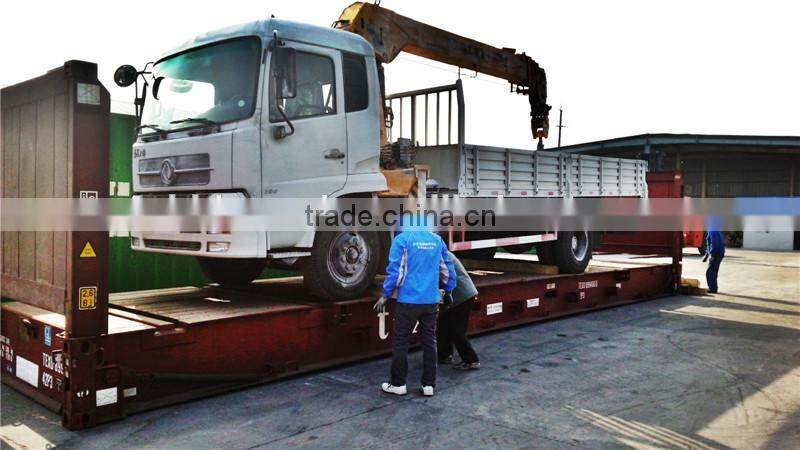

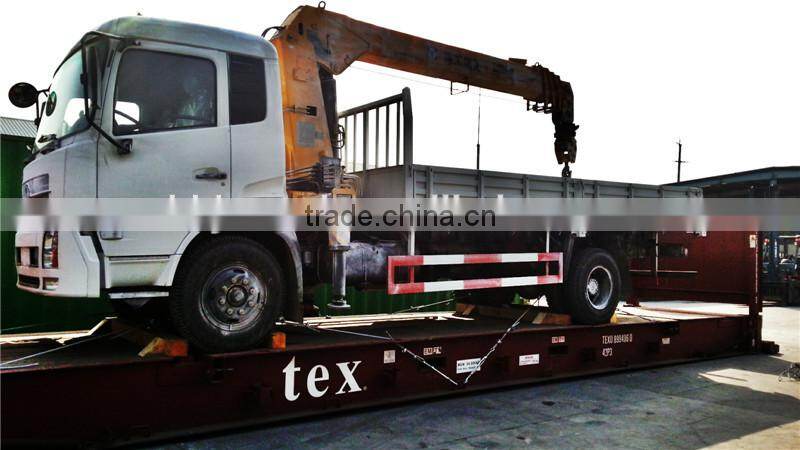

Truck-mounted crane loaded into FTR container for ocean shipment
Customer visit our factory:
Our main product:
fire truck, aerial working truck, truck-mounted crane, garbage truck, road sweeper, sewage suction tanker truck, fecal sucking truck, refrigerated truck, fuel tanker truck, water tanker truck, cargo truck, van truck, semi-trailer, dump truck, tractor truck, concrete mixer truck, bulk cement truck .....
Hubei Jiangnan Special Automobile Co., Ltd
Hubei Jiangnan DongFeng Special Automobile Co., Ltd
Mobile Phone: 0086-18771385883 / 0086-15071634966
Tel: 0086 722 3330261
Skype: jessicasong0525
Website: www.hbjntruck.en.china.cn
