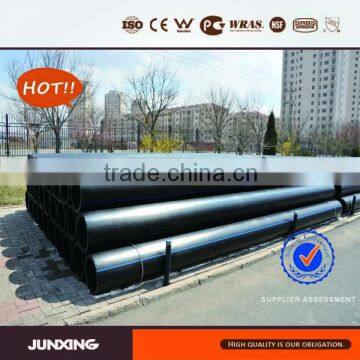

hdpe pipe SDR13.6 hdpe pipe pn12.5 for water supply system
- 160000 Ton / Tons per Month
- Tianjin
- T/T L/C D/P D/A Credit Card
You May Like
-
JunXing Brand hdpe pipe SDR21 hdpe pipe pn8 for water supply project
-
JunXing pipe Group yellow plastic gas pipe
-
JunXing pipe group hdpe plastic water pipe for potable water
-
water polypropylene pipe/hdpe pipe price
-
zero leak rate plastic hdpe water pipe
-
HDPE water pressure pipe for municipal and industrial water transmission system
Product Details
| Place of Origin | Tianjin, China | Brand Name | JUNXING | |
| Model Number | PE100 | Material | PE | |
| Specification | DN20 to DN1600 | Length | 5.8 Meters or 11.8 Meter/Piece, 100 Meters to 500 Meters/Roll | |
| Thickness | 2.3mm to 57.3mm | Standard | ISO, AS, EN, DIN, GOST, ASTM |
Product Description
HDPE Pipe with fittings
Nominal Diameter(mm) | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| PN6 | PN8 | PN10 | PN12.5 | PN16 | |
| Thickness | Thickness | Thickness | Thickness | Thickness | |
| 20 | 2 | 2 | 2 | 2 | 2 |
| 25 | 2 | 2 | 2.3 | 2.3 | 2.3 |
| 32 | 2 | 2.3 | 2.3 | 2.3 | 3 |
| 40 | 2.3 | 2.3 | 2.5 | 3 | 3.7 |
| 50 | 2.3 | 2.5 | 3 | 3.7 | 4.6 |
| 63 | 2.9 | 3 | 3.7 | 4.7 | 5.8 |
| 75 | 3 | 3.7 | 4.5 | 5.6 | 6.8 |
| 90 | 3.7 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 | - |
| 1400 | 53.5 | 66.7 | 82.4 | 102.9 | - |
| 1600 | 61.2 | 76.2 | 94.1 | 117.6 | - |
Features:
1.Sizes: 20 to 1600mm.
2.Pressure Rating: 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa.
3.Colors: blue, black or other colors.
4.Connection: socket fusion joint, butt fusion joint, electro fusion joint, flanged joint.
5.Standard: ISO 4427.
6.Certification: ISO9001, ISO14001, OHSAS18001, BV.
Application:
1.Portable water pipe line
2.Sprinkler & Drip Irrigation System
3.Life & Gravity irrigation
4.Suction & Delivery of Pump
5.Building & Construction Industry
6.Infrastructure
7.Marine & Sub-Marine Lines
8.Underwater Pipeline
Junxing Pipe Group Co.,Ltd is located in Fuyuan Economic Development Area, Tianjin City, covering an area of 150,000 square meters. We manufacture PP-R, PB, HDPE, PE-RT, PE-Xa, PE-Xb, DXPAP1, DXPAP2, DXPAP5, RDPAP7 pipes and fittings, which are used in areas such as water transportation, gas transportation and geotherm industry etc.
Our company has passed the certificates of GOST, BV, ISO9001 and ISO14001, certificates of China Environmental Label Products and China Water Saving Products. Strategic objectives: constant pursuits, innovative development, being based on domestic needs and expanding to the world.
Imported Raw material to Gaurantee high quality
Even though the raw materials are imported,We still test by our own lab to control and guarentee the quality
We have over 200 sets of manufacturing equipments and the production capacity can be 160,000 tons/year to meet your urgent needs.
Workshop
Certification
Certificate: ISO 9001, ISO 14001, BV, GOST,CE etc to guarantee high quality and smooth custome clearance for you.
Tianjin JunXing PIpe Group attend famous EXPO yearly.Click and send inquiry, We will have a chance to meet you in your country. We are glad to answer any question no matter we can cooperate or not finally.
