Home > Products > High Current Terminal Blocks > heavy duty Terminal Blocks frequency converter components

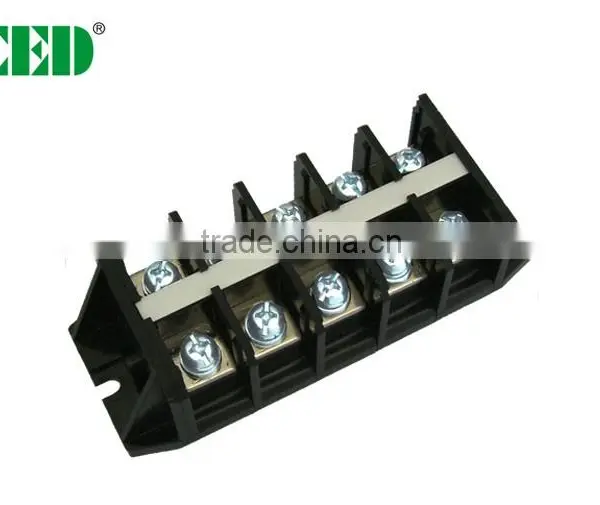

heavy duty Terminal Blocks frequency converter components
- 1000000 Piece / Pieces per Month
- Yan Tian
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SCED | Model Number: | TR30-01-BM0 |
Product Description

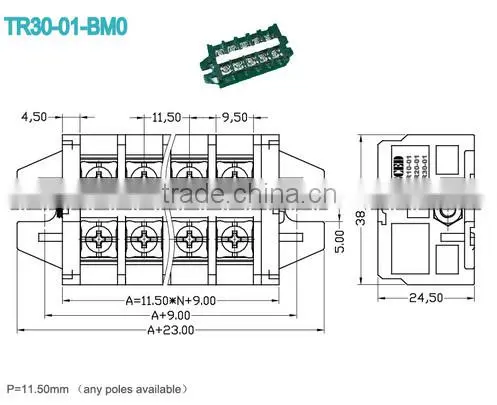

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 30 | 600 / 30 | 600 / 5 |
Wire Range AWG | 10-20 | 10-20 | 10-20 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 /30 | 1000 / 30 | 1000 / 30 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 3.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 10-12 | ||
Screw Torque mm | M4 / 10.6-13 | ||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Contact Us
- Shenzhen Sced Electronics Co., Ltd.
- Contact nameMartin Liang Chat Now
- Phone0086-755-84199790
- AddressBantian Street Shenzhen,Guangdong
-
