Heavy duty Terminal Blocks Barrier din rail mount

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	SCED
Model Number	TR80-01-FaM0

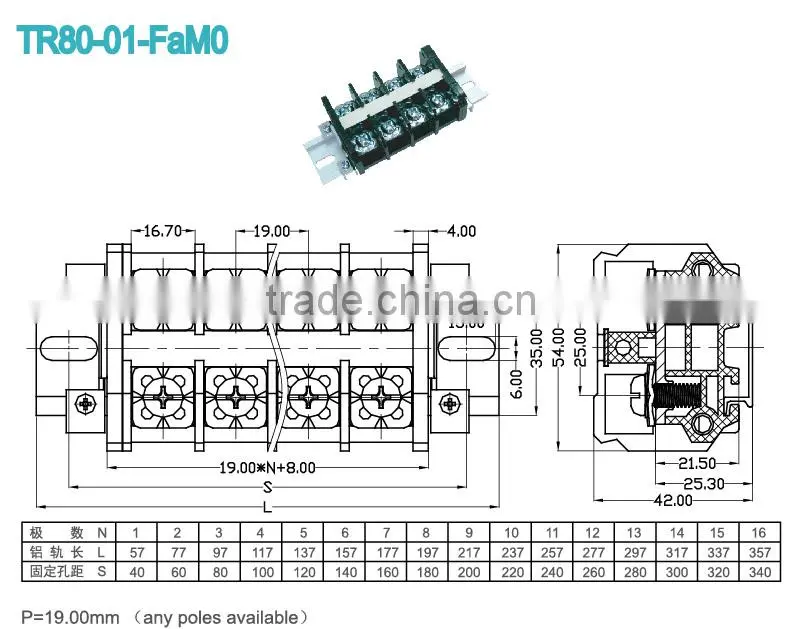

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 80	600 / 80
Wire Range AWG	4-20	4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 80	1000 /80	1000 / 80
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	22
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel /Zinc Plated
Other Data
Stripping Length mm	12-15
Screw Torque mm	M6 /18-22

Competitive Advantage:
