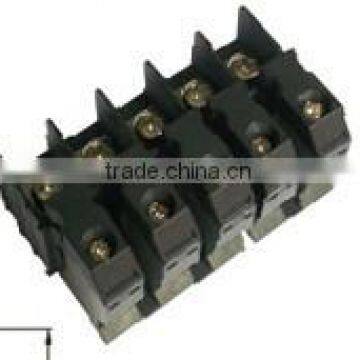

Perforation Terminal Blocks
Negotiable
/ Piece
200 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Yantian
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SCED | |

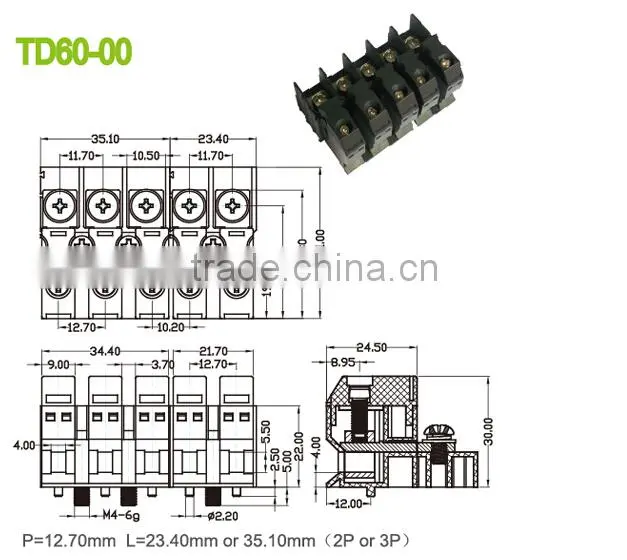

| Model Number | TD60-00 |
Product Description
Parameter:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600/40 | 600/40 | 600/5 |
Wire Range AWG | 8-22 | 8-22 | 8-22 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800/40 | 1000/40 | 1000/40 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 8 | ||
Material |
| ||
Insulation Material / Inflammability Class | PBT/ UL94, V-0 | ||
Conduction Board/ Plating | Brass / Nickel Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data |
| ||
Stripping Length mm | 9-10 | ||
Screw / Torque /lbf.in | M4/ 10.6-13 | ||
- Stable good quality
- Competitive price
- Quick response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
