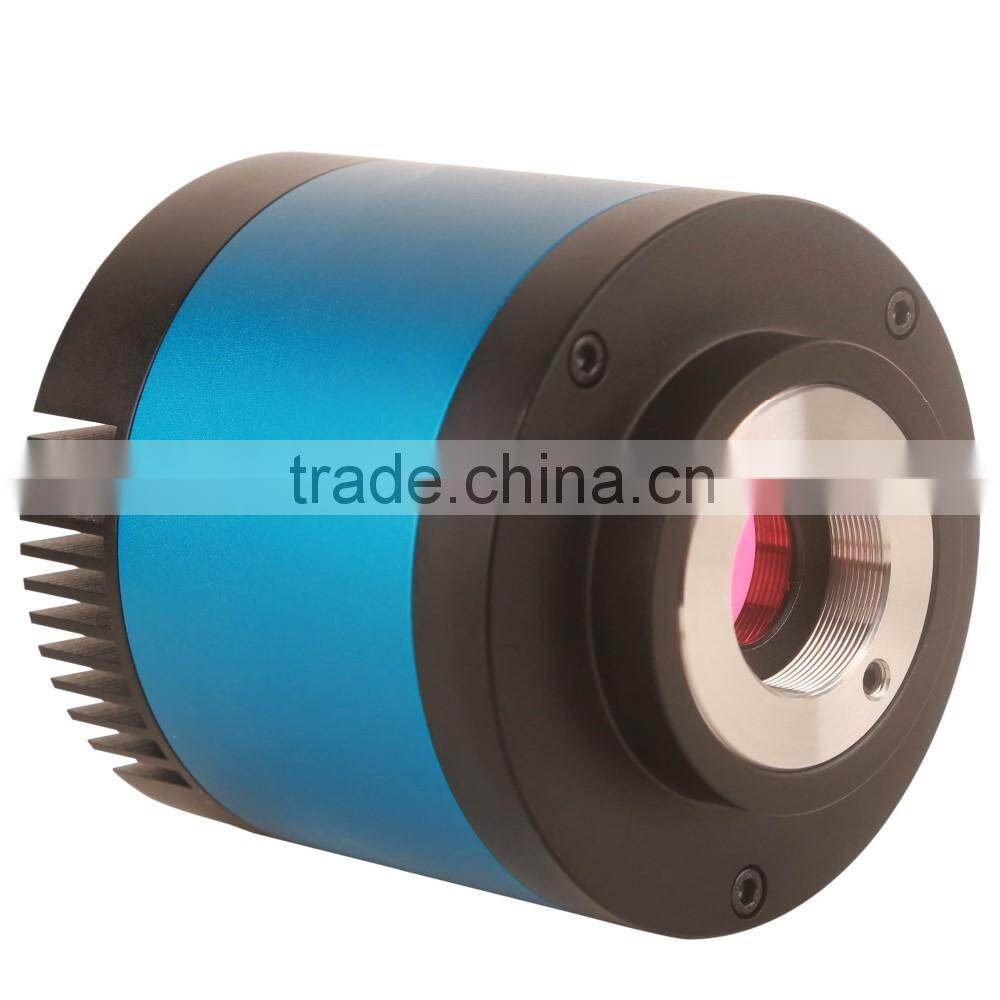

MG3CMOS Series C-mount USB3.0 CMOS Camera

           ToupTek MG3CMOS camera adopts SONY Exmor, Exmor R and Exmor RS CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface. High sensitivity and low noise to achieve the CCD quality image is the most well-known advantages of these cameras.

            MG3CMOS camera hardware resolutions range from 2.3M to 6.3M and come with the integrated CNC aluminum alloy compact housing.

           MG3CMOS comes with advanced video & image processing application (ToupView for microscope application); ToupView supports Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

          The MG3CMOS camera family can be widely used in microscope fluorescence application due to their outstanding performance.

• SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;
• Real-time 8/12/14/16bit depth switch(depending on sensor);
• Super high sensitivity;
• Ultra low noise and low power dissipation by using column-parallel A/D conversion;
• Long time exposure supported up to 1000s;
• Resolutions range from 1.2M to 6M;
• Rolling shutter or global shutter;
• External fan cooling, controllable;
• Unique internal cooling structure to help heat radiation;
• Standard C-Mount camera;
• CNC aluminum alloy housing;
• USB3.0 5Gbps interface ensuring high frame rates;
• With advanced video & image processing application ToupView;
• Providing Windows/Linux/Mac OS multiple platforms SDK;
• Native C/C++, C#/VB.Net, DirectShow, Twain, LabView;

MG3CMOS06300PA
MP106300A

6.3M/IMX178(C)

1/1.8"(7.37x4.92)

2.4x2.4

425mv with 1/30s
0.15mv with 1/30s

15@3072x2048
26@1536x1024

1x1,2x2

0.244ms~1000s

MG3CMOS02300KPA
MP102300A

2.3M/IMX185(C)

1/1.9"(7.20x4.5)

3.75x3.75

1120mv with 1/30s
0.15mv with 1/30s

38@1920x1200
66@9604x600

1x1,2x2

0.244ms~1000s

MG3CMOS02300KPB
MP102300A

2.3M/IMX302(C,GS)

1/1.2"(7.20x4.5)

5.86x5.86

1016mv with 1/30s
0.15mv with 1/30s

30@1920x1200

1x1

0.244ms~1000s

MG3CMOS02300KMC
MM102300A

2.3M/IMX174(M,GS)

1/1.2"(7.20x4.5)

5.86x5.86

1016mv with 1/30s
0.15mv with 1/30s

30@1920x1200

1x1

0.244ms~2000ms

MG3CMOS01200KPA
MP101200A

2.3M/IMX185(C)

1/1.9"(7.20x4.5)

3.75x3.75

2350mv with 1/30s
0.15mv with 1/30s

60@1280x960
60@640x480

1x1,2x2

0.244ms~1000s

Spectral Range

380-650nm (with IR-filter)

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering Technique

Ultra Fine Color Engine

Capture/Control API

Native C/C++, C#, Directshow, Twain, Labview

Recording System

Still Picture and Movie

Cooling System*

Electric Fan

Operating Temperature

-10 Degree~ 50 Degree

Storage Temperature

-20 Degree~ 60 Degree

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Operating System

Support Microsoft  Windows  XP / Vista / 7 /8 /10(32 & 64 bit)
OS X (Mac OS X), Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17" or Larger

CD-ROM

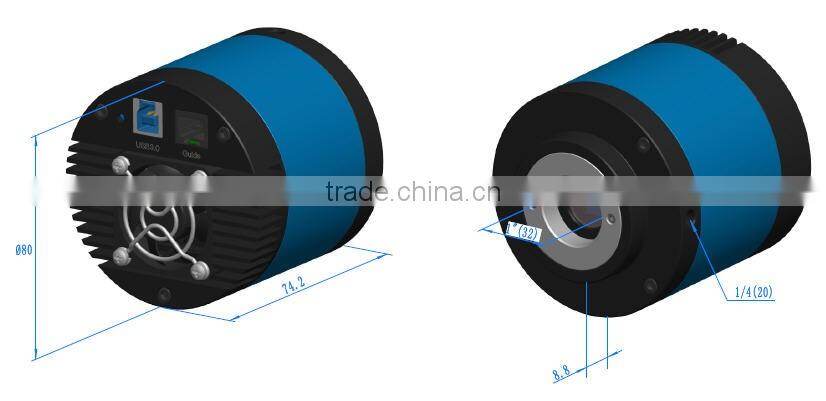

Dimension of MG3CMOS Camera

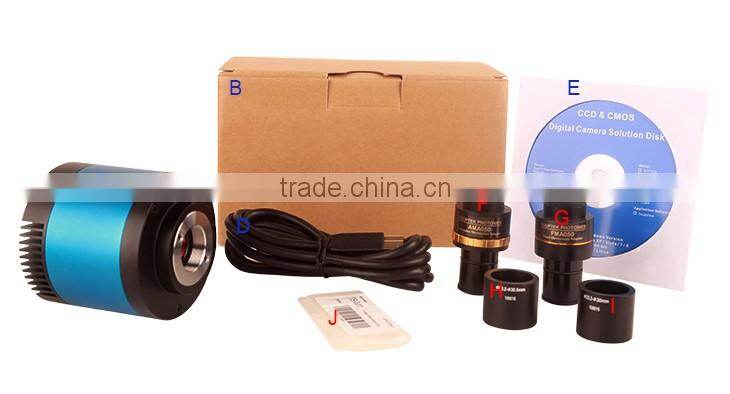

A

Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:23cm W:13cm H:12cm (0.75~0.8Kg/ box)

C

MG3CMOS series camera

D

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)

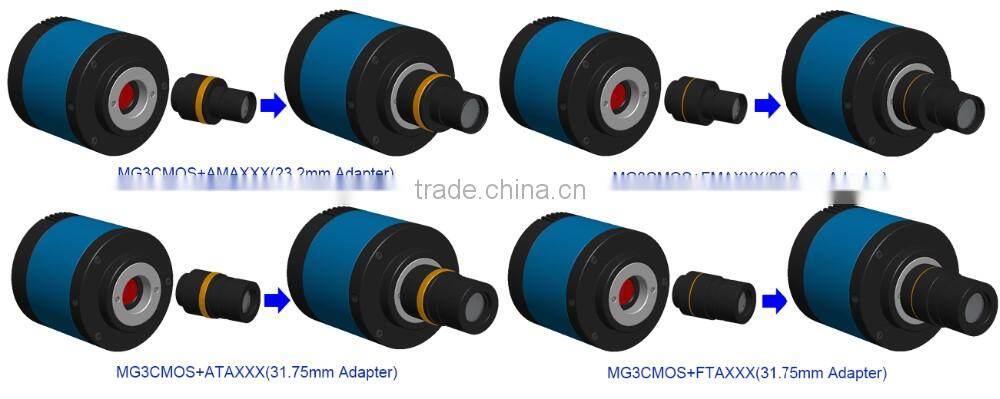

F

Adjustable
lens
adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed
lens adaptor

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

H

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

J

Calibration Lit

C-mount Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Astronomy Camera
