Condition New
Place of Origin Shanghai, China
Brand Name HUGO
Model Number HSY-China supplier 10 ton overhead crane
Usage Construction Hoist
Power Source Electric
Sling Type Chain
Maximum Lifting Weight 10 ton
Maximum Lifting Height 3 M
Lift Speed 2.8 m/min
Certification TUV, SGS, CE,ISO
Warranty 2 Year
After-sales Service Provided Engineers available to service machinery overseas

 China supplier 10 ton overhead crane

Product Description

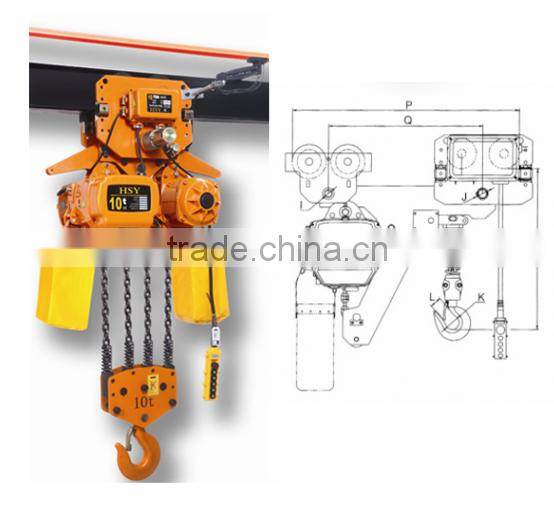

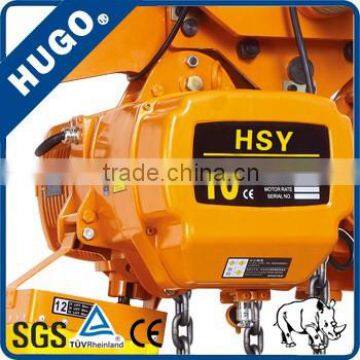

 China supplier 10 ton overhead crane

 Introduction of   China supplier 10 ton overhead crane



1.Motor brake: adopt advanced magnetic cone brake to provide reliable stopping



2. Chain guide: high quality design provides smooth and quiet guidign og the lifting chain



3.Heavy duty motor: Squirrel cage parallel rotor motor; Cooling fins reduces the temperature of hoist and keep it working; The IP 55 protection can withstand demanding enviroment

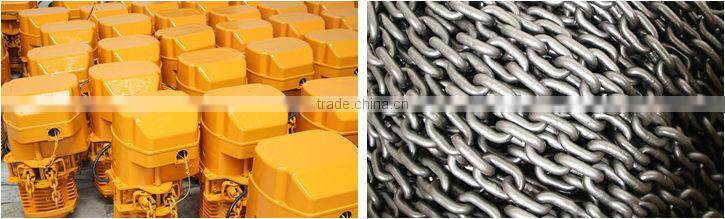

4.Load chain: Carburizing chain or FEC chain is heat-treated for long life and endures harsh conditions;

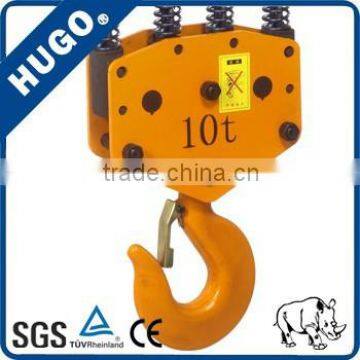

5.Hook: hot forged high tensile steel, rigid and durable, fitted with safety latch to ensure safety lifting



6. Push button pendant: water-Proof and insulated, provides light and durable switching controls.



7. Phase error relay to prevent mortor from running at incorrect wire connection



Parameters of  China supplier 10 ton overhead crane

Model
HSY		Capacity
  TON		Lifting
Height
M		Lifting
Speed
M/MIN		                      Lifting  motor                              Drive  motorI  beam
Power
KW		Rotational
Speed
  R/MIN		PhaseVoltage
V		Frequency
HZ/S		Power
KW		Rotational
Speed
R/MIN		Running
speed
M/MIN		PhaseVoltage
V		Frequency
HZ/S

01-01
1
3/9
6.8
1.5
1440
3
380/220
50/60
0.4
1440
11/21
3
380/220
50/60
82-153

02-02
2
3/9
3.4
1.5
1440
3
380/220
50/60
0.4
1440
11/21
3
380/220
50/60
82-153

2.5-01
2.5
3/9
6.8
3.0
1440
3
380/220
50/60
0.75
1440
11/21
3
380/220
50/60
82-153

03-02
3
3/9
5.8
3.0
1440
3
380/220
50/60
0.75
1440
11/21
3
380/220
50/60
82-153

05-02
5
3/9
2.8
3.0
1440
3
380/220
50/60
0.75
1440
11/21
3
380/220
50/60
110-178







China supplier 10 ton overhead crane

Motor brake: adopt advanced magnetic cone brake to provide reliable stopping

China supplier 10 ton overhead crane

  Chain guide: high quality design provides smooth and quiet guidign og the lifting chain

China supplier 10 ton overhead crane

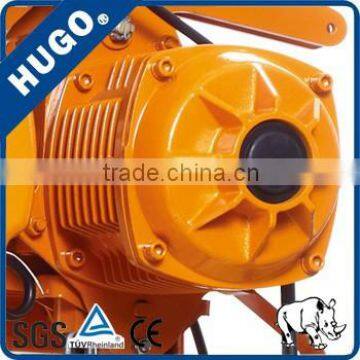

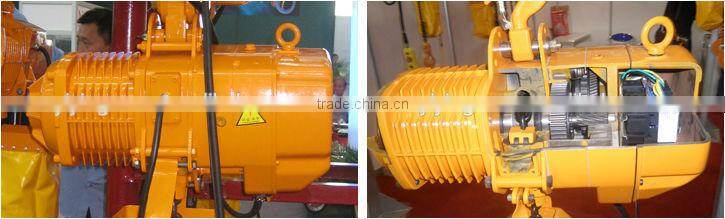

  Heavy duty motor: Squirrel cage parallel rotor motor; Cooling fins reduces the temperature of hoist and keep it working; The IP 55 protection can withstand demanding enviroment

China supplier 10 ton overhead crane

Phase error relay to prevent mortor from running at incorrect wire connection.

We are professional hoist manufacturer with more than 20 years experience since 1992. If you have any demand about our product , please don't hesitate to contact us at any time!

Company Information

China supplier 10 ton overhead crane

  China supplier 10 ton overhead crane

China supplier 10 ton overhead crane

CE ISO TUV SGS certification

Packaging & Shipping

  China supplier 10 ton overhead crane

Our Services

Service

 Payment term:

  T/T

 Warranty Period:

  1 year

 Delivery time:

  5 days after order

 Packing:

  export carton and pallet

FAQ

1.Is your product customized?


Thanks for your question. Yes, because the working condition are differet, all our products are cstomizd dependingon detail requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!



2. What's the information should i provide when inquiry?


Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, ift height, power source or other specials you give us will be more appreciated.



3. How many operation methods for my selection?


Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin(space capsule seat) control with joystick. You can choose any of them, just tell us!



4. The space of my workshop is limited, can the crane ok for mine?


Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional enfineer.



5. What's the information should i provide when inquiry?


a. What's the lifting material?
b. How much is the maximus lifting weight of the hoist?
c. Have you installed the rails? Do you need us supply the rails? How long is it?
d. Where are the working environment?
