M20 machine adjustable leveling HG-L-0035

Specifications

Steel with a gold chromate machine adjustable leveling
Support weights from 500 lbs up to 30,000 lbs
Rotating ball sockets

Steel Stud Type Leveling Pad  machine adjustable leveling HG-L-0035

Steel leveling pads are extremely strong leveling pads that can support weights of up to 30,000 pounds per level . They also offer rotating ball sockets to accommodate unlevel terrain, or objects that do not have legs that come straight down. Hygoal Supply a wide variety of different stainless steel stud leveling pads so you can find the best product for you.



These leveling pads have a  15° swivel off centerline to adjust to uneven surfaces and level machine tools, electronic racks, benches, etc.

Hardened ball, except in stainless , prevents galling and forms its own seat. Large diameter pad design assures solid support. All steel parts are zinc plated. Metric dimensions are in millimeters . Metric load ratings are in kilograms.

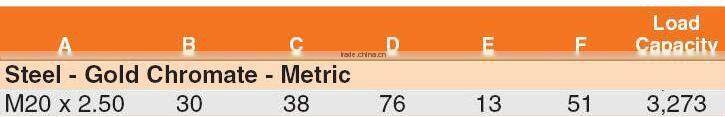

Base Diameter	76 mm
Base Edge Height	13 mm
Bottom Padding	No
Finish/Coating	Gold Chromate
Measurement System	Metric
Load Capacity	3,273 lbs
Material	Steel
Overall Pad Height	38 mm
Stud Length	51 mm
Thread Size	M20 x 2.50
Width (Acorss Flats)	30 mm



















Custom Manufacturing:

Except these standard productsWe also supply customized sulotions or OEM according to your sample or drawings.



Hygoal Components manufactures a diverse range of custom plastic and metal products at extremely competitive costs - all from our facilities in Ningbo, China. Our teams have over a decade of manufacturing and supply chain management experience. From design concept, to sample creation, mass production and shipping. And we ensure your product arrives on spec, on time and on budget.







With the technical capability to rival all manufacturing facilities. We have the knowledge, experience and manufacturing capabilities to meet all of your requirement in  customized  solutions . For details of Hygoal's manufacturing procedure, please see our custom manufacturing overview page  or contact with us.



Hygoal's Custom Manufacturing procedure:







	Submit a technical drawing or post a sample » Use our enquiry form to send us a technical drawing of your product along with a description and the estimated quantity you require. If you do not have a technical drawing in most cases we can also reverse engineer from a sample.
	48hr quote from Hygoal sales team » We leverage the very latest technology and communications tools to unite our global teams. We understand the importance of fluid and responsive interactions between all aspects of the manufacturing process, from factory and quality control to shipping and distribution. Submit a technical drawing today and we'll quote in just 48 hours.
	High quality rapid tooling » Upon quote approval and receipt of your deposit payment, we begin fabrication of your tooling. When only a small number of parts are required, tooling can represent a large proportion of initial cost, but we are confident that our tooling costs will not be beaten. When a greater quantity of parts are produced the relative cost of tooling shrinks dramatically.
	Samples to your door in 35 - 40 days » The next step sees the first samples off the production line, and delivery to your door - but not before they've passed our meticulous quality control checks. We pride ourselves on getting the job done right the first time; we've worked successfully with countless companies whom require a manufacturing partner capable of keeping to close tolerances throughout production. If adjustments do need to be made, we'll perform them quickly and efficiently.
	Mass production in 4 weeks from sample approval » With injection moulding and die casting machines from 15 tonnes up to 3000 tonnes, you can be sure that we're ready for mass production. Our engineers are fastidious in their attention to detail; its imperative for both customer and manufacturer that the goods are on spec; you won't accept second rate products - we won't produce them.
	Packaged, labelled and shipped to your door in 10 weeks from sample approval » We understand our customers require much more than just first rate products, they need them securely packed and shipped to their destination on time. Our supply chain has been in successfull operation for over a decade, we'll even manage and monitor all customs, handling fees and insurance.
