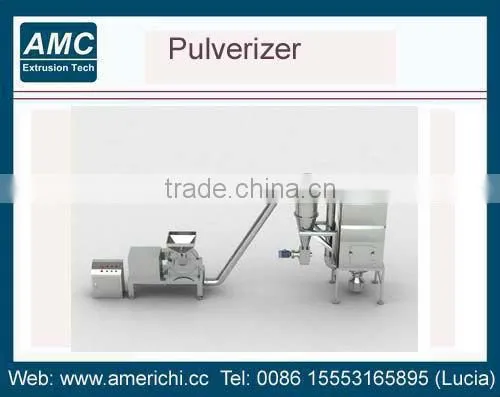

AMC Superfine Pulverizer

Specifications

Superfine Pulverizer
1. made of stainless steel
2. no screening net
3. no dust flying

Superfine Pulverizer



1. Description:

Main Application :
Comprised of main frame, auxiliary machine and electrical control cabinet, this machine has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level, thus being widely used for material crushing in pharmaceutical, chemical and foodstuff trades etc..
Working Principle:
The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharged by bag type collector, and the dust is filtered and recovered by dust collector through filter barrel Having no dust flying during production, it can improve utilization rate of the material and reduce the cost of enterprise.



2. Products: This line can be used to mill  pharmaceutics, chemical and foodstuff etc.



3. Capacity: 60--1500kg/h



4. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries



5. Machines Materials: All the machines are made by stainless steel



6. Technical Parameter





Model	Production Capacity	Feeding Size	Output size	Total power	Main Speed	overall dimension	weight
WFJ-300	10-100kg/h	≤10mm	60-450mesh	13.5kw	5800r/min	4200*1200*2700mm	1000kg
WFJ-450	50-250kg/h	≤10mm	60-450mesh	19.3kw	5200r/min	4300*1350*2700mm	1500kg
WFJ-520	80-500kg/h	≤10mm	60-450mesh	39.05kw	5000r/min	7920*1480*3290mm	2500kg
WFJ-630	200-1500kg/h	≤10mm	60-450mesh	75.3kw	4500r/min	9500*1800*3730mm	3200kg

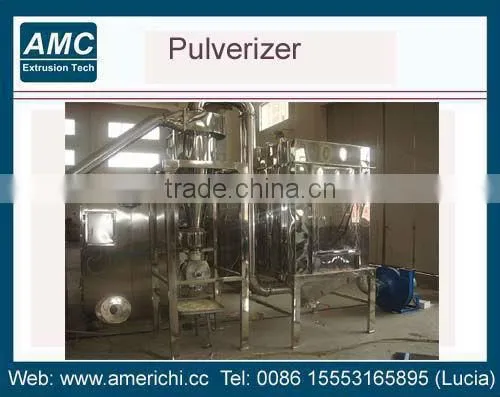

7. Pictures:
