Home > Products > waterproof fan > 12v cooler fan

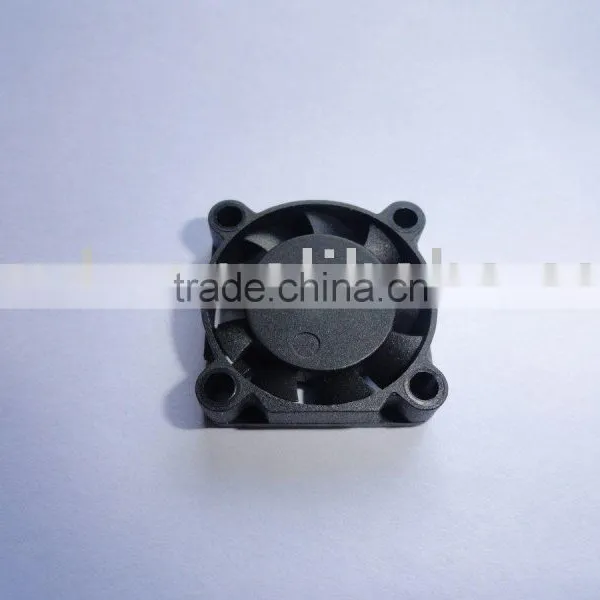

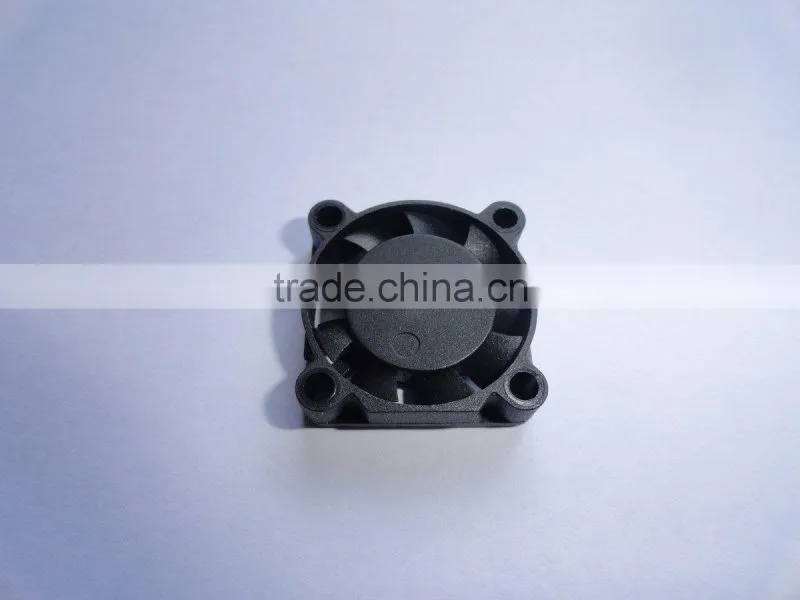

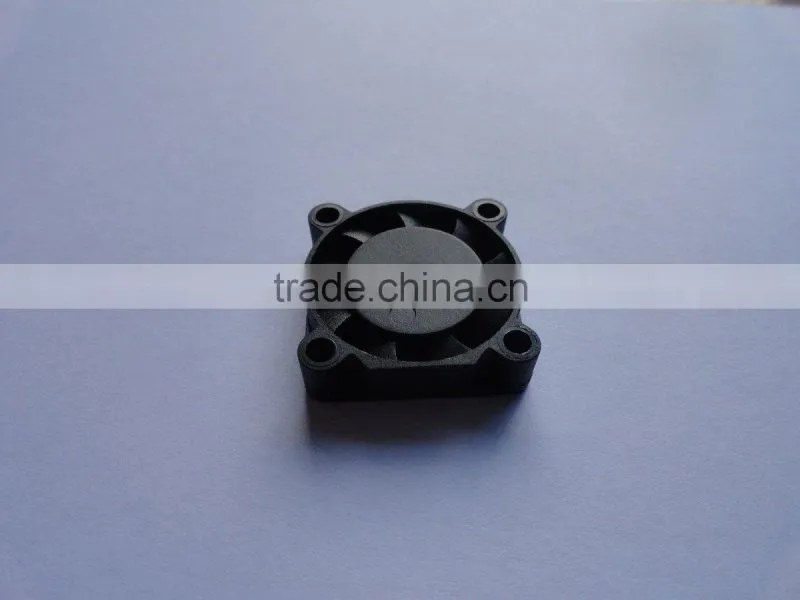

12v cooler fan
USD $0.5 - $1.5
/ Piece
1000 Pieces(Min.Order)
- 10000000 Piece / Pieces per Month
- SHENZHEN
- Credit Card
You May Like
Product Details
| Electric Current Type: | DC | Mounting: | Free Standing | Blade Material: | Plastic |
| Place of Origin: | Guangdong, China | Brand Name: | SON TIMES | Model Number: | ST2507HS(B) |
| Voltage: | 5/12V | Power: | 0.3-0.6W | Air Volume: | 5-7CFM |
| Speed: | 8000-10000RPM | Certification: | CE |
Product Description
Specifications
12v cooler fan2.size:25*7mm
3.rated voltage:5/12v 8000-10000RPM
4.ball bearing/sleeve
5.18-20BA,
| Frame size(mm) | 25*25*07mm |
| Bearing type | ball bearing/sleeve |
| Rated voltage | 5v 12v |
| Rated speed | 8000-10000RPM |
| Max air flow | 10-15CFM |
| Max pressure | 0.13-0.16inch-H2O |
| Max noise | 16-18dBA |
| Functions | by impedance,FG |
| Safety approvals | CE ROHS |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation resistance | 100M ohm between lead wire and frame(DC 500V) |
| Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation temperature | -10~80 degree C(+14~176 degree F) |
| Storge temperature | -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30 |
| fan blade material | Black PBT (UL94V-0) glass filled |
| frame material | PBT |
| Weight | 5g |
12v cooler fan
