BEST PRICE KX6 WITH ELECTRICAL CABLE

FOB Price

USD $10 - $50 / Roll

100 Rolls(Min.Order)

Supply Ability 10000 Roll / Rolls per Month
Port shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	ADP/OEM	Model Number:	KX6+POWER
Type:	Coaxial	Number of Conductors:	7

Product Description

BEST PRICE KX6 WITH ELECTRICAL CABLE

Specifications

1) 7*0.2mm bare copper+3.7mm Solid PE+al foi 96/0.12 CCA/copper braiding+PVC jacket+2c power cable
2) Customers' specifications are welcomed

Applications:

CCTV
Video
Premise wiring
Security

Packing:

1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll . Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Data Sheet:

1) Specifications

Center Conductor

7*0.2mm stranded bare coopper

Dielectric:

3.7mm solid PE

Braiding:

96/0.12mm CCA

Jacket:

5.4+ 0.10mm PVC/PE

power cable 0.5mm2 -2.5mm2

2) Characteristics

Spark Test: 2000 VAC

Dielectric Strength: Conductor to Shield: 2000VDC

Impedance:	75 + 3 Ohm
Capacitance:	16.0pF./Ft. Nom.
Velocity of Propagation:	84%
DCR: Conductor:	10.5 Ohms/1000Ft.(Nom.) Coax
	6.6 Ohms/1000Ft(Nom.) 18 AWG
Return Loss:	20dB min (5-860MHz)
	15dB min(860-2500Mhz)
SRL:	20dB (10-350MHz) 100% Swept Tested

3) Attenuation

Attenuation	[@68 o F. (20 o C.)]
Frequency (MHz)	Max. (dB/100 ft.)	Frequency (MHz)	Max. (dB/100 ft.)
1	0.30	400	6.01
10	0.86	700	8.47
50	1.91	900	9.82
100	2.78	1000	10.47
200	4.06

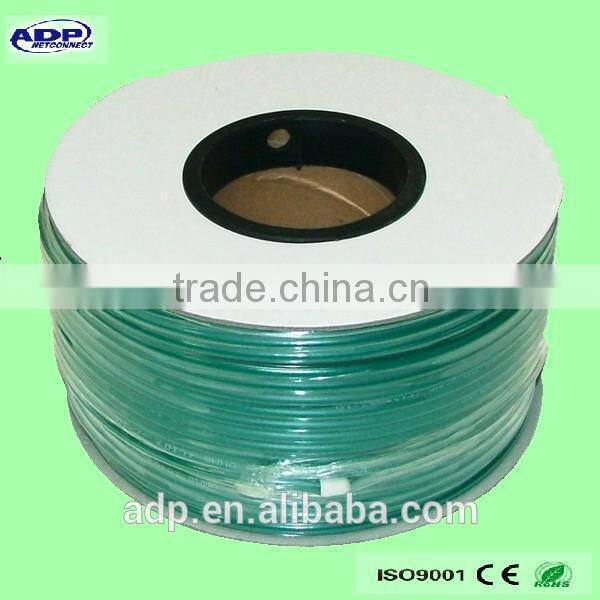

Cable Images:
