Home > Products > Solar Panel---Mono Type > Sunpower 220W Mono solar panel price China supplier
Sunpower 220W Mono solar panel price China supplier
- 20000 Piece / Pieces per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Sunpower 180W Mono solar panel wholesale China supplier
Quality Choice
-
Sunpower 180W Mono solar panel price list China supplier
-
Sunpower 180W Mono solar panel manufacturers in china
-
Sunpower 180W Mono solar panel system China supplier
-
Sunpower 180W Mono solar panel price China supplier
-
Sunpower 180W Mono solar panel low price China supplier
Product Details
| Place of Origin | Jiangsu, China | Brand Name | BR SOLAR;BRIGHT; AS SOLAR | |
| Model Number | BR-P220W | Material | Monocrystalline Silicon | |
| Size | 1650*992*35 | Number of Cells | 24V, 60 | |
| Max. Power | 220W |
Product Description

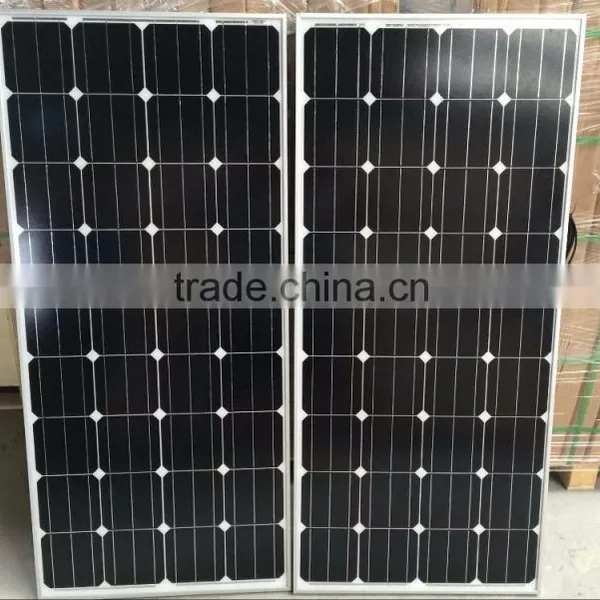

Sunpower 220W Mono solar panel price China supplier
The type of solar panel
Monocrystalline cells are cut from a single crystal of silicon- they are effectively a slice from a crystal.
In appearance, it will have a smooth texture and you will be able to see the thickness of the slice.
These are the most efficient and the most expensive to produce. They are also rigid and must be mounted in a rigid frame to protect them.
Polycrystalline (or Multicrystalline) cells are effectively a slice cut from a block of silicon, consisting of a large number of crystals.
They have a speckled reflective appearance and again you can you see the thickness of the slice.
These cells are slightly less efficient and slightly less expensive than monocrystalline cells and again need to be mounted in a rigid frame.
Technical Specification:
Specification for 220W Mono Solar Modules | |
Product Name: | 220Watts Solar Panel |
Model Number: | BR-P220W |
Place of Origin: | China |
Solar cell spec: | 156*156 Monocrystalline silicon solar cells 60(6*10)pcs in serices |
Specifications: | PV module with 220W maximum power |
Max. system voltage: | 1000V DC |
Power tolerance: | 0%-3% |
Surface max. load capacity: | 70m/S(200KG/sq.m) |
Weight: | 18KG |
Dimensions: | 1650mm*992mm*35mm |
Electrical characteristics: | |
Vmp(V): | 29.8V |
Imp(A): | 7.39A |
Voc(V): | 35.6V |
Isc(A): | 8.03A |
Cell efficiency(%): | ≥16.4% |
Module efficiency(%): | ≥14.4% |
FF(%): | 70-72% |
Conditions (STD): | |
Bypass Diodes | 3pcs 15A |
Irradiance: | 1000W/M2 |
Temperature: | 25°C |
Absolute maximum rating: | |
Operating temperature: | -40°C to +80°C |
Storage temperature: | -40°C to +80°C |
Packing: | 2 PCS/CTN |
Payment: | 30% TT in advance, 70% before shipment or against copy of B/L. |
Junction box | TUV Certified,MC4 Connector, Water-proof. |
Glass | High-Transmission,Low iron tempered glass. |
Limited Warranty | Warranty: 5 years. |
Solar PV Module Panel Pack: carton and pallet packing;
TO WHOM IT MAY CONCERN:
We would like to introduce ourselves as Industrial, Design Solutions & Original Supplier who have been specializing in solar industry and manufacturer of SSL (Solar Street Lighting) more than 10 years
Overseas Exploration and Popularity:
So far 2015 we have been successfully applied our Solar Street Lights, Led Street Lights; Some Home Kits, Solar Panels, Solar Panels for Home Use, Solar Battery, to more than 55countries particularly in Asia, North America, Africa. OEM/ODM is available
For the Future:
With experienced designing ability, advanced manufacturing & testing equipments, our group are growing better and better.We hope to cooperate with more partners and solar distributors to develop more lighting projects to create prosperous win-win partnerships. OEM is available.
Applications

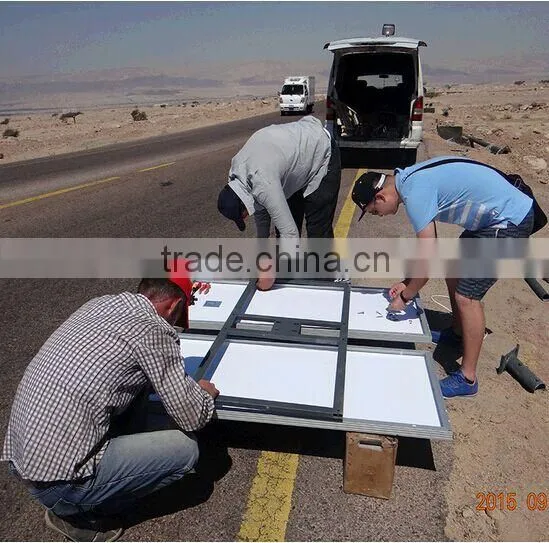

SOME OF OUR PROJECTS
Yangzhou Bright Solar Solutions Co., Ltd.
Add: 16th At Lianyi Road,Yangzhou City, Jiangsu Province, P.R.China
THANKS FOR CHOOSING YANGZHOU BRIGHT SOLAR SOLUTIONS CO., LTD, ANY REQURIE ARE WELCOME :-)
