wet tissue making machine description

Automatic monolithic packing wet paper towel machine is a can the whole roll of base paper by unwinding, longitudinal folds, and liquid and fixed length cutting, and then the lateral fold, then after packaging film package and sealing positioning and cutting machine. The whole production process is operated by the machine, without manual contact, to ensure the health of the product.

wet tissue making machine main technical parameter (suitable for 1 piece /pack)

Production flow: unrolling —folding—wetting — cutting —packing  — delivering

The power supply: 380V 50HZ

The total power: 6KW

The production speed: 180~220 bags / min

The size expansion products: (120~260) * (150~200) mm (length * width)

The folding size: (60~130) * (50~80) mm (length * width)

The control system: PLC control system, touch screen

The applicable materials: nonwoven materials - weight: 40~80 - g/m

The size of raw materials: (150~200) * 1000 mm diameter (width * diameter)

The machine weight: 2000kg

The machine size: 5400 x 1000 x 2030 mm (length * width * height)

wet tissue making machine main features:

1. machine can automatically count the number of pieces, can be directly on the color touch screen operation adjustment, convenient, and change the traditional manual counting method.

2. automatic rejection of empty bags, automatic removal of material joints, no manual removal, saving time and labor costs.

3. automatic correction systems can correct the offset of the material; reduce the impact of raw materials to the finished product.

4 .automatic shutdown systems, extending the service life of the machine.

wet tissue making machine System feature:

1 .stepping motor Drive model

2. Main drive shaft adopted couple jointer

3. Back driven by timing belt

4. Control system

5. PLC control systerm and detecting & accounting systerm

wet tissue making machine auto control functions:

1 .Temperature auto controlling. Each unit adopted individual digital temperature indicator.

2. Each data is set on requirement to meet different consumption. The real time temperature can be fed back to the PLC and displayed at interface screen.

3. Electrical control system consists of main circuit system, second circuit control system,

temperature control system, tension control system, PLC system and other auxiliary parts.

4.Product conveying: Adopted imported convey belt driven. The friction coefficient can be auto profit adjusted at low or high speed to ensure whole line in consistent situation and good products.

5. Adopted hard alloy for long life cutter.

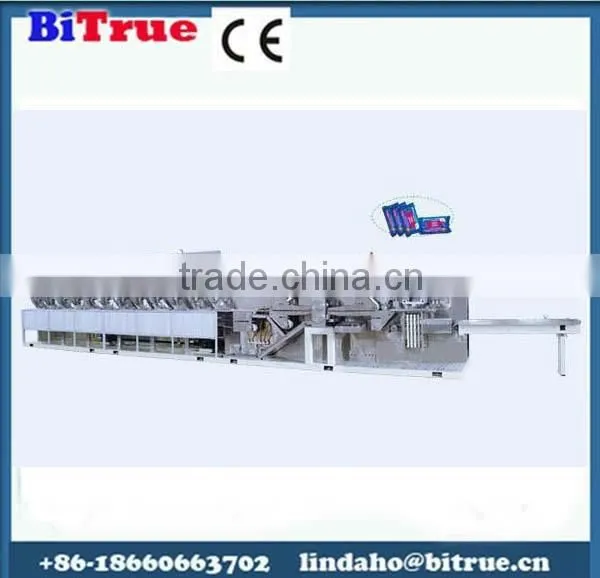

wet tissue making machine picture

wet tissue making machine sample
