Top-selling Decorative Ceiling Lights 35W,Modern LED Suspended Ceiling Lights

Specifications

Decorative Ceiling lights
-AC85-265V,constant current driver
-Unique excellent design
-3 years warranty RoHS
-cutout 230mm

   Top-selling Decorative Ceiling Lights 35W,Modern LED Suspended Ceiling Lights

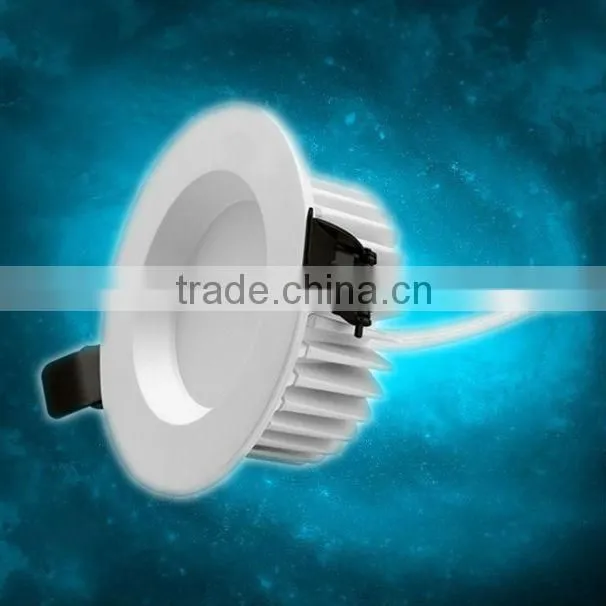

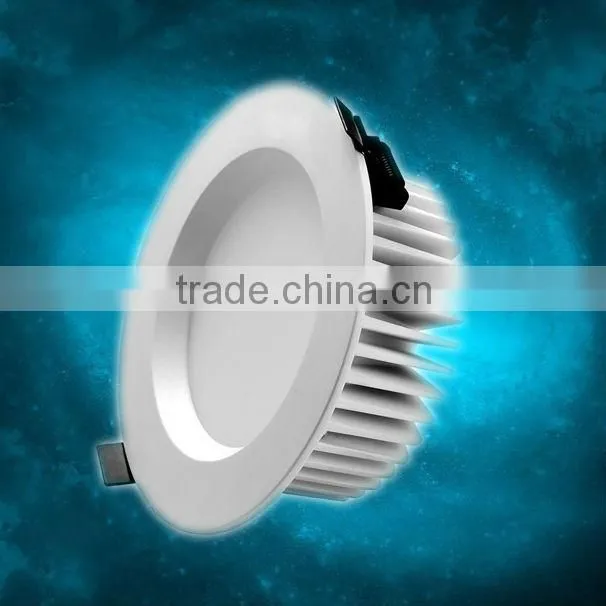

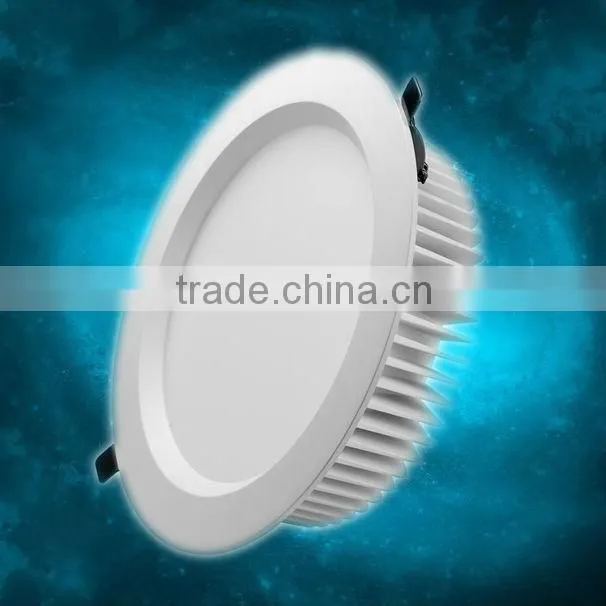

Cutout 230mm SMD Downlight 35w 2956lm Led Downlight



Unique advantages and benefits:

• High efficiency light source, optional: SMD 5730
• Wide Voltage (AC90 ~ 265V) means it can be used worldwide, broadband (50/60Hz) input, constant current drive, noflash, fast response to achieve over-current, overload, no-load protection, use safety.
• High thermal-conductivitythermal aluminum,modern design
• Light efficiency, low power consumption, than the traditional halogen, incandescentenergy saving 80%,compared with 50% energy saving lamp.
• No UV radiation, mercury and other harmful substances,environmental protection.
•  Optional color temperature: warm white, cool white.
•  Long life, up to 50,000 hours.





Part No.	Color Temp	Input Volt.	Power (W)	LED driver	Lumen (LM)	CRI	View angle	Hole size(mm)	Size (mm)
BW-CL08-10W	4000-5000K 3000-3500K	AC 90-295V	10W	DC28-37V 350mA	656	80	80	95	106*44
BW-CL08-15W			15W	DC3-34V 700mA	1305			130	148*53
BW-CL08-20W			20W	DC3-26V 700mA	1468			180	196*53
BW-CL08-25W			25W	DC3-26V 800mA	2157			180	196*53
BW-CL08-35W			35W	DC3-26V 1200mA	2956			230	246*65



Demention of CL08-XX:



Packing Picture:



certification:



Quality Assurance:

Warrnty: 2 years, offer LED driver and light for replacement while they failed within warranty.

QC:

1). Inspection Materials, Aluminum alloy, Driver with strict & long time test before application, LED chips inspection for making sure even color CRI and Lumen efficiency test etc.

2). Assembling: processing is following detailed prodution instruction. The order's progress have monitored and showing in ERP system.

3). Ageing test: 24hrs ageing test before shiped out.

4). Warehouse and delivery: Docs for part No., quantity, color temperature, voltage, label etc.



Brightway LED Ltd. lights are suitable for installations in offices, schools, colleges, Universities, hospitals, showrooms, retail premises, warehouses and other areas.



Typical application:

It is an apartment indoor illumination in Monterey Mexico,
