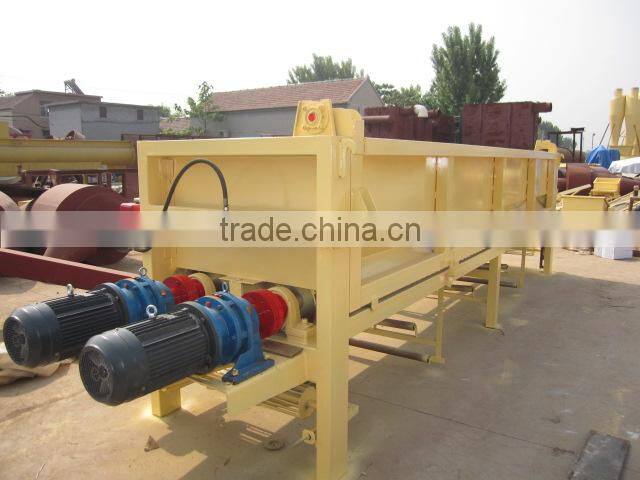

YPM60 tree wood log debarker

seaworthy packing

Specifications

wood debarking machine
2.no limit for log dia
3.low consumption
4.CE,ISO9001

We produce biomass pellet making line machines, such as wood logs debarking machine, wood logs splitter, wood sawdust making machine ,wood chipper, hammer mill, grass/straw cutter , straw bale crusher ,pellet machine and briquette machine, dryer and cooler, screener, mixer , biomass pellet boiler ,pellet packing machine and all conveyors e. c. t. Our factory has more than 15 years history, CE and ISO9001 high quality certificate,for wood debarker/wood tree debarker details, as below :



1.wood debarker/wood tree debarker the best ideal equipment to peel

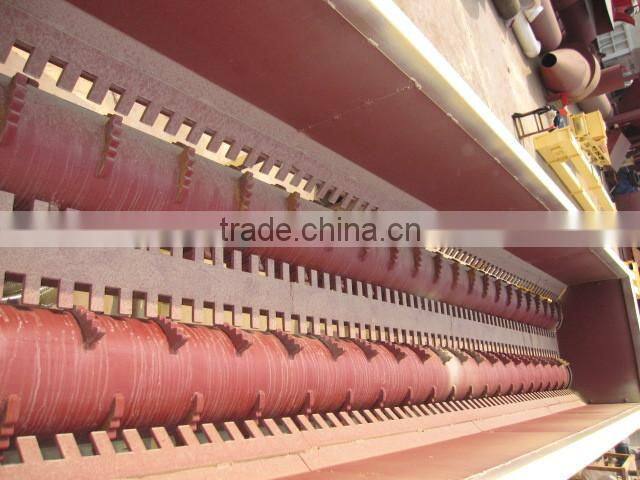

5-80cm diameter wood logs barks .it uses the special acting force generated by the rotor of barking teeth, making wood cyclical motion in the through plate of silo, also the wood will do turning motion revolve ite axis and beating irregularly . Thus far, there are constant friction, hit against, extrusion among wood and teeth, wood and wood, wood and through plate of silo, tree bark will be stripped rapidly, to achieve efficient stripping effect.





2.Wood debarker/wood tree debarker has the characteristics of fast speed, stripping completely, easy operation, the effiency is triple of manpower, especially suitable for the wood branches with irreguarlly shape. There need no water when stripping, no pollution and nuisance. Firm in structure, easy and convenient operation, easy maintance. Widely used in various plate factories.



Ⅱ.wood debarker/wood tree debarker Performance characteristics:



1. Adopt the open bin, a end feeding, another end out material of a pipelined operation, to overcome the existing power cut feeding, discharging, segmented way of working shortcomings, high work efficiency



2. As the teeth impact of wood segment, the wood doing circular movement within the housing, and the rotation around itself, so the peeling effect is high. On frozen wood, dry wood and hard skinned species also has a good peeling net rate



3. Adaptability of wood, can be of different species, diameter, length and shape of the timber peeling, As the wood does rotary motion and the irregular beating, the bending log uneven part can be good touch with peeling tooth. So the net rate of bending wood peeling is much higher than other drum.



4. The housing is fixed, low energy consumption, low failure rate, maintenance workload is small, low vibration and noise, the machine can produce on the ground directly, even do not install the base, easy to operate.
