Dongfeng Bigger 10000Liters Road Cleaning Trucks, Street Cleaning Machines With Snowing Cleaning Equipment For Sales
- 200 Unit / Units per Month
- China main port Shanghai Tianjin Longkou Load Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
New Dustbin Street Sweeper Truck 10000Liters Cleaning Vehicle,Road Sweeper Machine With Snowing Cleaning Equipment
-
New 2016 Cheaper Price Street Cleaning Machine/Truck 5cbm Sweeper Truck Dongfeng Trucks For Sales
-
New Cheaper Price 5000Liters Road Sweeper Trucks Dongfeng Sweeper Truck For Sales
-
New Cheaper Price Sweeper Tucks Dongfeng 5000L Street Cleaning Machine Trucks For Sales
-
Heavy duty 10cbm Street Sweeper Truck, Biggest Street Cleaning Trucks, Road Sweeper Call (Whatsapp) 0086 15897603919
-
New Cheaper Price 7000Liters Street Cleaning Trucks Machine 7cbm Road Sweeper Trucks Hot Sales
Product Details
Condition | New | Place of Origin | Hubei, China | |
Brand Name | Dongfeng Road Cleaning Trucks | Model Number | SCS5160TXSD4 Road Cleaning Trucks | |
Dimension(L*W*H) | 8580*2490*3100 | Weight | 9400 | |
Certification | ISO CCC | Warranty | 1 Year | |
After-sales Service Provided | Overseas third-party support available |
Product Description
Dongfeng Bigger 10000Liters Road Cleaning Trucks, Street Cleaning Machines With Snowing Cleaning Equipment For Sales Call (Whatsapp) 0086 15897603919 Ms.Pinky
The main performance description of Road Cleaning Trucks :
1.Cleaning device Type: Center four sweep and rear nozzle, scan disk can automatically avoid obstacles; sweep plate has three modes of operation: full sweep, sweep left front, right front sweep, to achieve road sweeping and vacuuming.
2.Nozzle: The roll-broom enhanced nozzle, built-in roll sweep, eliminate waste omission; rolling tire three o'clock floating support, road profiling powerful; (national initiative)
Pneumatic tube with a net antifreeze device, can effectively ensure sprinkler parts are not due to structural damage caused by freezing; (national patent technology)
With a leakproof drainage device, effectively prevent dirt build-up, to prevent fouling and clogging junk falls back to the ground straw causing secondary pollution; (national patent technology)
3.All fasteners are made of galvanized, scan disk, nozzles and other structural parts are made of acid phosphate electrostatic spraying, strong adhesion, coating corrosion resistance, weather resistance
4.Trash the whole entire layer of SUS304 stainless steel, structural strength, does not rust
Trash shape with side large surface modeling, arc transition, in proportion to the whole car, nice.
5.In the state of emergency, it can be manipulated by setting the manual pump trash, and sweep the nozzle plate movements and other movements, special circumstances can work directly into the engine compartment to detect vice and maintenance
6.Functional device with enhanced pressure dust, the dust can be adapted to the cleaning surface thicker.
7.With a variety of security alarm devices: water tank low water level, job tips, deputy engine temperature, oil pressure, parking tips, hydraulic oil leak alarm, trash tipping, reset, and the back door open and close security alarm devices.
Specification of Dongfeng 10cbm Road Cleaning Trucks:
water cleaning tanker capacity: 3500Litrers
Dustin Tanker Capacity: 7000Liters
Truck model | SCS5160TXSD4 Road Cleaning Trucks | ||
Chassis model | DFL1160BX5 | ||
Wheelbase | 5000mm | ||
F/R overhang | 1430/2150 mm | ||
Engine model | Chassis engine | ISDe210 40;ISDe180 40;ISDe185 40;EQH180-40;ISB180 40;ISB210 40 | |
Secondary engine | EQB160-20 | ||
Engine rated power | Chassis engine | 155kW | |
Secondary engine | 155;132;136;132;132;155 kW | ||
Max gradeability | 30% | ||
Min turning circle | ≤16m | ||
Emission standard | Euro 4 | ||
Noise | ≤84dB(A) | ||
Max speed | 90 km/h | ||
Approach angle | 20 | ||
Departure angle | 13 | ||
Braking distance | ≤10m | ||
Weight | Curb weight | 11350 kg | |
GVW | 16000kg | ||
Dimension | Overall dimension | 8580×2490×3100mm | |
Min ground clearance | 230mm | ||
High pressure cleaning | Cleaning speed | 3~20Km/h | |
Cleaning width | 3.5m | ||
Cleaning pressure | 10MPa | ||
Water pump flow rate | 154L/min | ||
Sweeping parameter | Sweeping efficiency | ≥95% | |
Max suction particle diameter | 110mm | ||
Sweeping width | 3.5m | ||
Max cleaning ability | 70000 m2/h | ||
Disk overhang dimension | ≥400mm | ||
Sweeping driving speed | 3-20km/h | ||
Tank | Water tank rated volume | 9m³ | |
Garbage tank | Garbage tank rated volume | 7 m³ | |
Discharging door angle | ≥45 | ||
Hydraulic system | Type | Open, electrical control | |
Main parts | Gear pump hydraulic cylinder hydraulic motor electromagnetic valve | ||
System pressure | 16MPa | ||
Hydraulic oil tank volume | 60L | ||
Oil temperature | 60 C | ||
Electric system | Model | DC24V,PLC PSS | |
Voltage | 24V | ||
Battery | 24V | ||
High pressure water system | Type | Plunger pump | |
Model | Germany PF36 | ||
System pressure | 10MPa | ||
Rotating speed | 1150r/min | ||
Water valve type | Hydraulic control high pressure ball valve | ||
Water valve pressure | 7MPa | ||
Nozzle type | High pressure washing | ||
Water filter | Net filter | ||
Water sprinkler system | Main parts | Electric diaphragm pump water filter nozzle, etc | |
Sweeping disk device | Type | Two sweeping plate, hydraulic motor drive, speed adjustable, can be independently controlled, with functions of automatic collision avoidance | |
Sweeping disk diameter | 850mm | ||
Sweeping disk speed | Height:110 Medium:80 Low:50 | ||
Sweeping disk angle | Front:4-6degree Out:4-7degree | ||
Sucker | Type | Double sucker, hydraulic control, spring suspension | |
Diameter | 180mm |
Road Cleaning Trucks specs detail:
1. The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate!
2, Four scan disk combinated with suction nozzle in working. according to a different cleaning conditions Scan disk speed can be controlled by choosing three gear-High, medium and low, which can make sure there be have a good cleaning results in a variety of pollution status. and when met the obstacle, the scan disk can be have a automatic avoidance protections and features automatic reset function, and retracted automatically, then resented automatically after over some obstacles!
3. Both of side of the scan disk can be working altogether or unilateral work independently.
4. The core components of hydraulic systems adopts the original import!

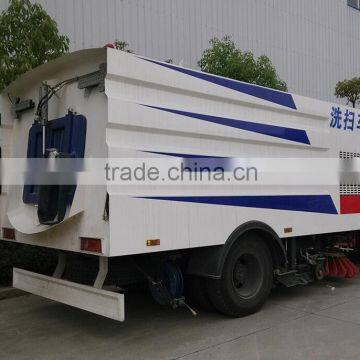

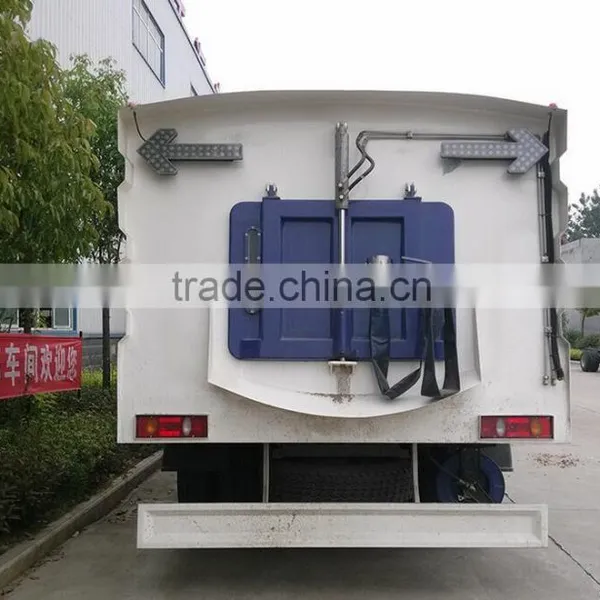

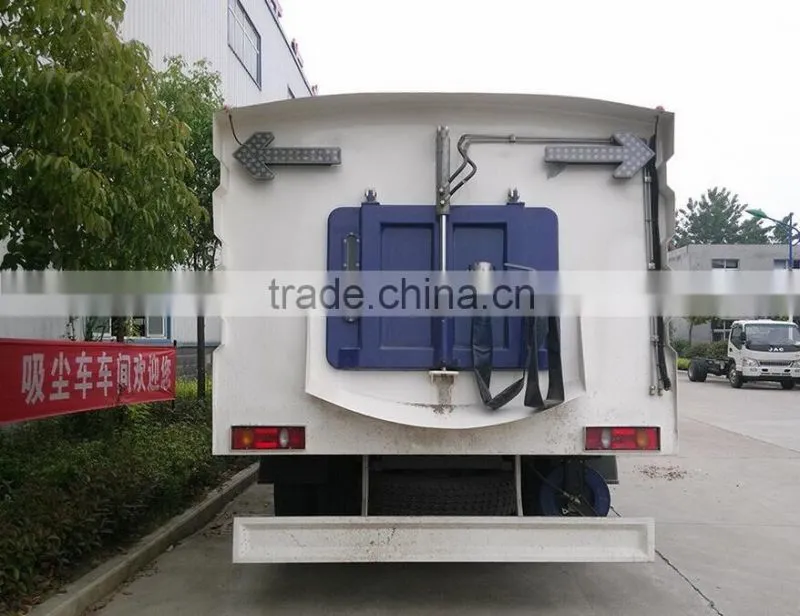

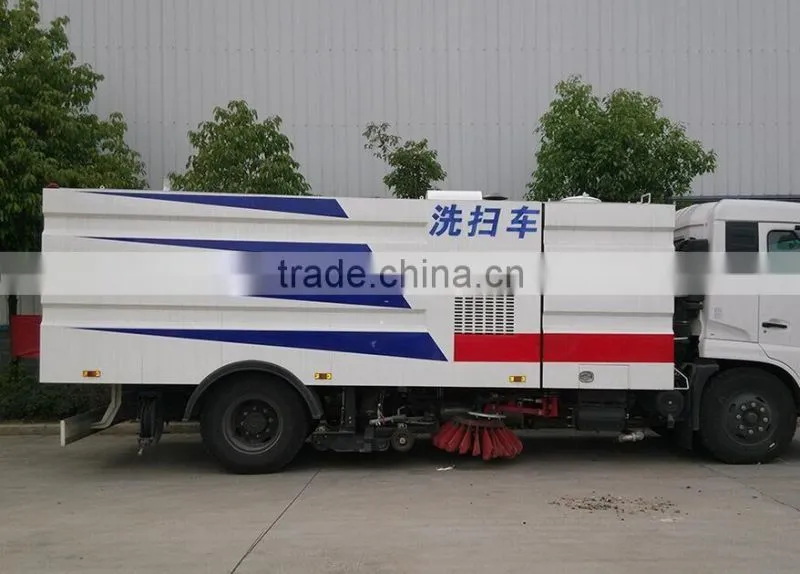

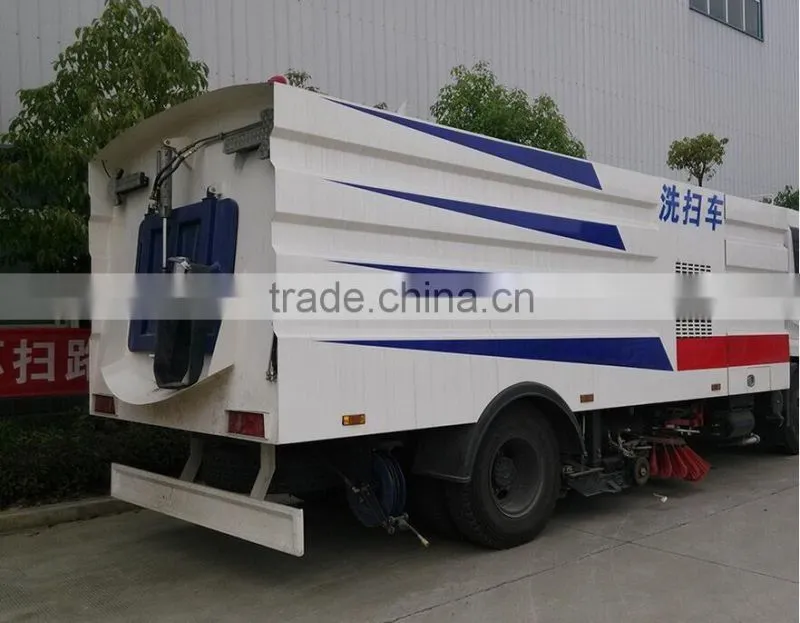

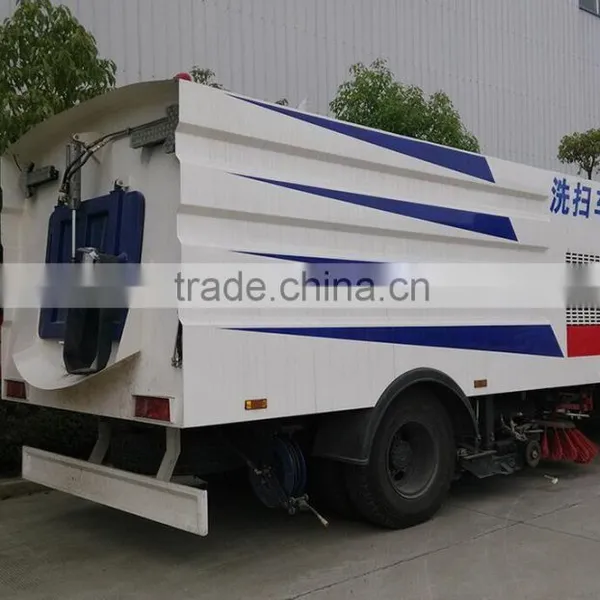

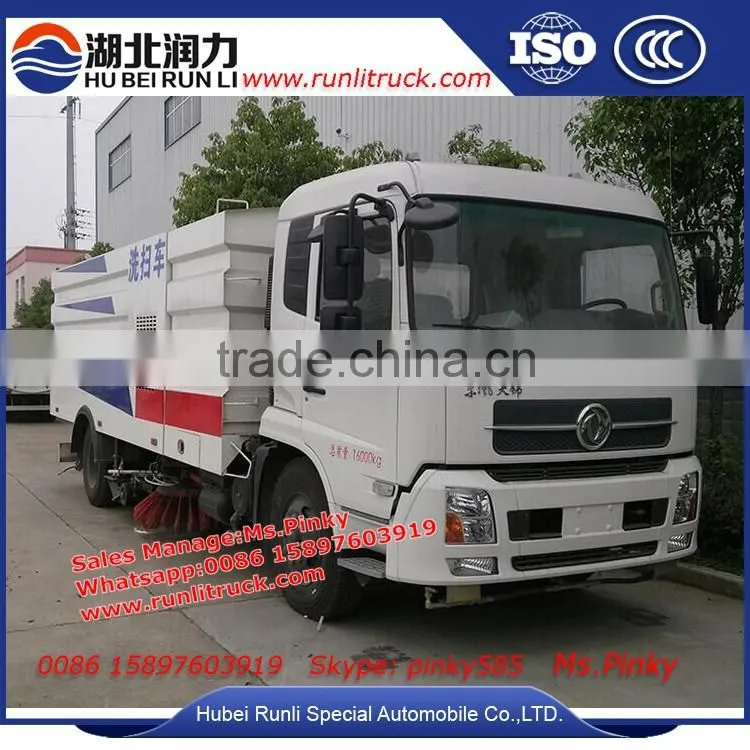

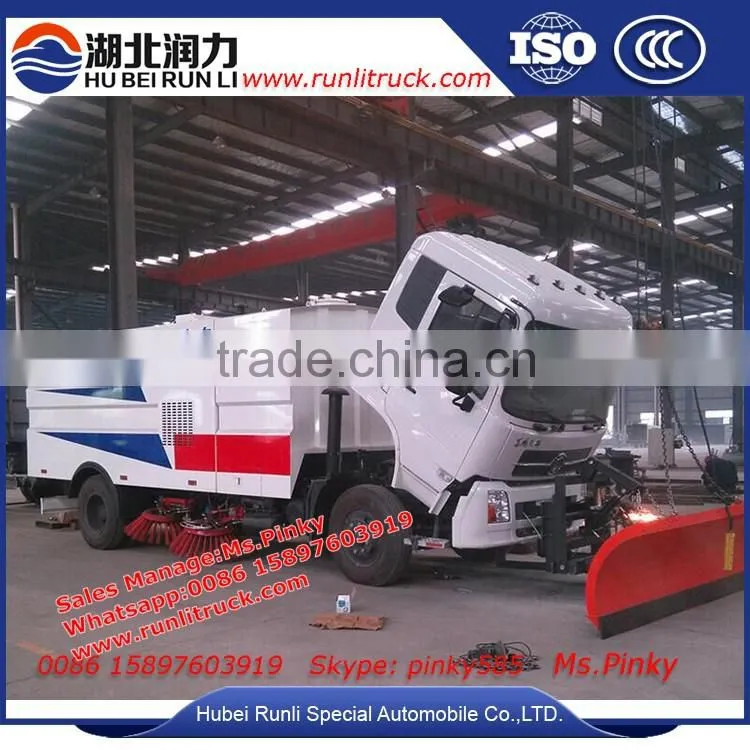

Deatailed Photos of Road Cleaning Trucks :

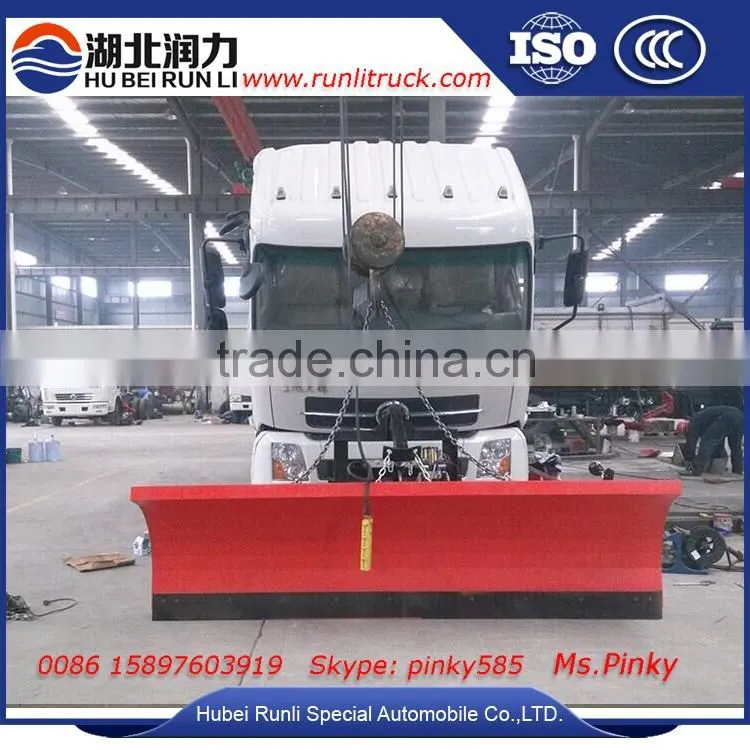

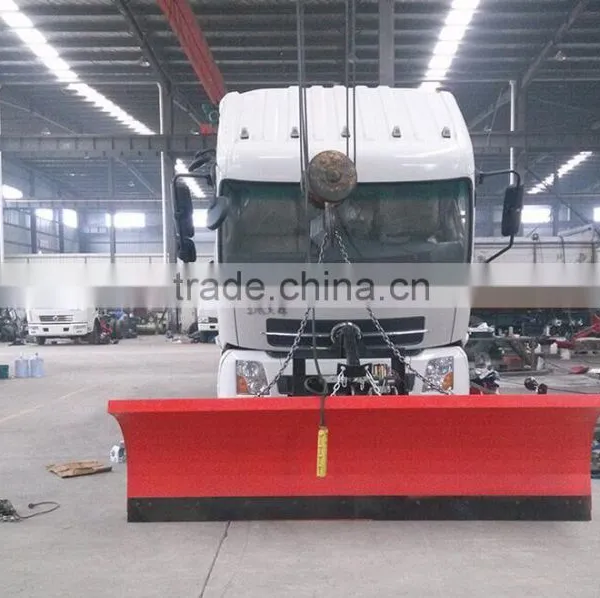

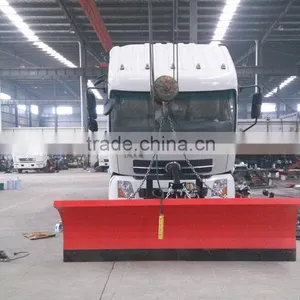

Equipment optional for Road Cleaning Trucks:
Our Partener Client:
Our Producing Equipment and Advantage For Road Sweeper Truck:
Our factory has advance equipment special for tank body, the horizontal and vertical welding line is weld by automatic welding machine, welding line is nice and stronger, double welding. good quality.
Our Payment Term and Delivery Time:
1. TT or LC AT SIGHT 30% down payment, 70% balance paid before shipment,all by T/T or by 100% LC at sight.
Min order: 1 units
Delivery time: 15-20days after get the deposit or LC
Packing: nacked package, waxed before delivery by sea.
Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc
