smart satellite receiver for HFC system
- 10000 Piece / Pieces per Month
- Shanghai/Shenzhen
- Credit Card
-
c band satellite receiver for HFC system
-
extreme satellite receiver for HFC system
-
[Ruidian] High quality l-band digital tv receiver
-
fta satellite receiver for L-Band fiber distribution networks
-
hd satellite receiver for L-Band fiber distribution networks
-
super max 1x1 satellite receiver for L-Band fiber distribution networks
Product Details
| Place of Origin: | Sichuan, China | Brand Name: | Ruidian | Model Number: | RD-120R |
Product Description
Specifications
1.smart satellite receiver for HFC system2.Standard type
3.-13~+2dBm input power range
4.Bandwidth:950~2600MHz
5.Wall type

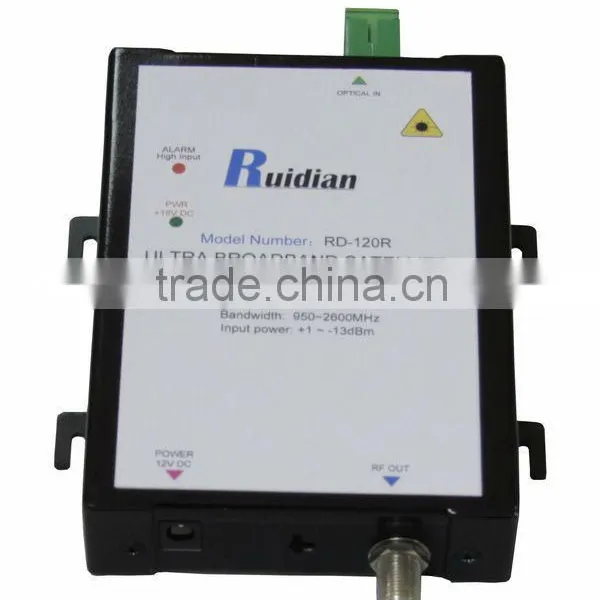

Smart satellite optical receiver for HFC system RD-120R
Description
The RD-120R L-Band Satellite Product Series is a kind of SAT-IF Optical Receiver with high performance and high index. Working in 950-2600MHz bandwidth, with low power consumption, suitable for FTTH, FTTP fiber access network. It is really an excellent cost performance DBS network ONU.
RF Typical Performance | |||||||
Parameter | Units | Min Typical Max Supplement | |||||
Frequency | MHz | 950 | 2600 | ||||
Output Level | dBµv | 68 | 88 | ||||
Flatness | dB | ±1.75 | 950~2600MHz | ||||
Port | 1 | ||||||
RF port | F-female | ||||||
Return loss | dB | -13 | |||||
Output Impedance | Ω | 75 | |||||
CNR | dB | 40 | |||||
IMD | dB | 40 | |||||
Optical Typical Performance | |||||||
Parameter | Units | Min Typical Max Supplement | |||||
Wavelength | nm | 1530 | 1550 | 1570 | |||
Responsivity | A/W | ≥0.9 |
| ||||
Return loss | dB | ≥55 | |||||
Input optical power | dBm | -13 | +2 | ||||
Optical connector | SC/APC | SC/APC or FC/APC | |||||
General feature | |||||||
Parameter | Units | Min Typical Max Supplement | |||||
Power supply | V | 12 | |||||
Power consume | mA | 80 | 90 | 100 | |||
Work temp | °C | -20 | +55 | ||||
Storage temp | °C | -40 | +85 | ||||
Size | cm | 16*10.5*2.8 | W×D×H | ||||
Key Features |
High bandwidth 950~2600MHz |
Low light-receiving -13dBm |
Wavelength 1260~1600nm |
Wall-mounted metal housing |
F-female 75ohm RF Output |
Main application |
Satellite FTTH networks |
L-Band fiber distribution networks |
If you need satellite optical receiver ,please contact with me without hesitation:
