Waterproof Stainless Steel AC DC 4.5v 6V 24V 220V Coil With1/2" 3/8" Thread Connent Solenoid Valve Impulse Valve
US$ 1 - 4
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Directly With the Factory AC/DC 4V-220V;1/2"-3/8" Plastic Solenoid or Impulse Valve Vanne Valvula ManufactoryNegotiableMOQ: 50 Bags -
AC/DC 4V-220V;1/2"-3/8" Plastic Solenoid or Impulse Valve Vanne Valvula ManufactoryNegotiableMOQ: 50 Bags
-
Stainless Steel AC DC 4.5v 6V 24V 220V Coil With1/2" 3/8" Thread Connent Solenoid Valve Impulse Valve VanneUS$ 1 - 4MOQ: 100 Pieces
-
AC-DC 4.5v 12v 24v 1/2 3/4 Stainless Steel Solenoid Contorl Valve Impulse Valve Vanne ValvulaUS$ 1 - 4MOQ: 100 Pieces
-
AC DC 24V 220V 1/2 Stainless Steel Solenoid Valve Impulse Valve Vanne ValvulaUS$ 0.5 - 3MOQ: 300 Pieces
Standard or Nonstandard
Standard
Structure
Control
Pressure
Low Pressure
Power
Solenoid
Material
Stainless Steel
Temperature of Media
Normal Temperature
Media
Water
Port Size
1/2 3/4 3/8 ect
Place of Origin
Zhejiang, China
Model Number
XG-FD-7
Brand Name
XG
Raed voltage:DC12V(Custonized form 6V-220V)
Spiral Resistance:40Ω±2Ω(20°C)
Switch mode:Alternating and Direct Current Continous
Operating pressure:0.02Mpa-0.8Mpa
Medium termperature:1°C~75°C
Responding time:open≤0.15s close≤0.3s
Electricity intensity:can bear 1500V between conductor and non-conductor;radiating will not be occurred within 1 minute
Resistance performance:>100MΩ between conductor and non-conductor
Flux performance:0.02Mpa≥5L/min 0.1Mpa≥12L/min 0.8Mpa≥35L/min .
Life span:≥1,000,000 times.

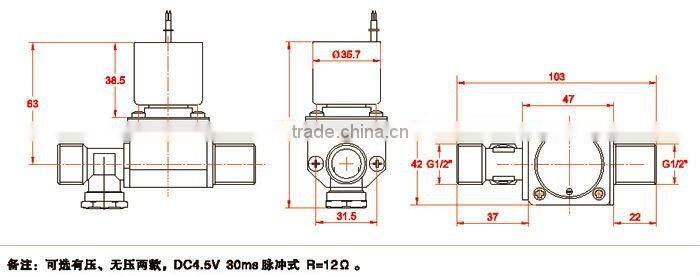

Valve Tube Size
Inlet and outlet dia.:1/2 inch,Surface coated with chrome The diameter can be customized.
