Salamander Capillary Thermostat With UL Certificate WYE Series

Specifications

 Product Description:

1.H point temperature/OFF:50±3°C
   DIFF:3±2°C

2.Rated voltage:250VAC Rated current:16A

3.Electric strength 2000VAC/1min/0.5mA

4.Contacts resistance:<50mΩ

5.Insulation resistance :>100ΜΩ

6.Main body maximum temperature:125°C

7.Senor highest temperature :70°C

8.Lifetime of product:>100,000 times

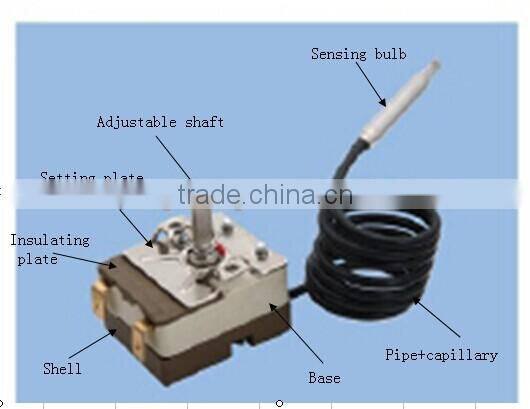

Product outside drawing:

Principle of performance and Application:

1.When the temperature of the controlled object is changed,the inner working substance of

    thermostat sensible bulb  produce a corresponding thermal expansion and contraction

    physical phenomenon (the working substance volume change),

2.At which connected withthe diaphragm sensible bulb produce expansion or contraction.

  Through the leverage to drive switch on/off actio the purpose is to achieve

  constant temperature.

3. WYE-050-0005  thermostats have temperature control accurate, reliable, small differential,

    temperature adjustmentrange, and large overload current performance characteristics.

Usage:

To be applied to home Appliances industry(shower bath fitting,tumbling-box washing

machine, fan heater), electrical heating appliance(Stainless steel automatic

water boiler, built-in electric oven,frying pan, food machinery, armarium,),

Refrigeration industry(kitchen refrigerator,chiller, cold,storage, ice

maker,fishpond, Beverage machine, heater) for temperature control use.

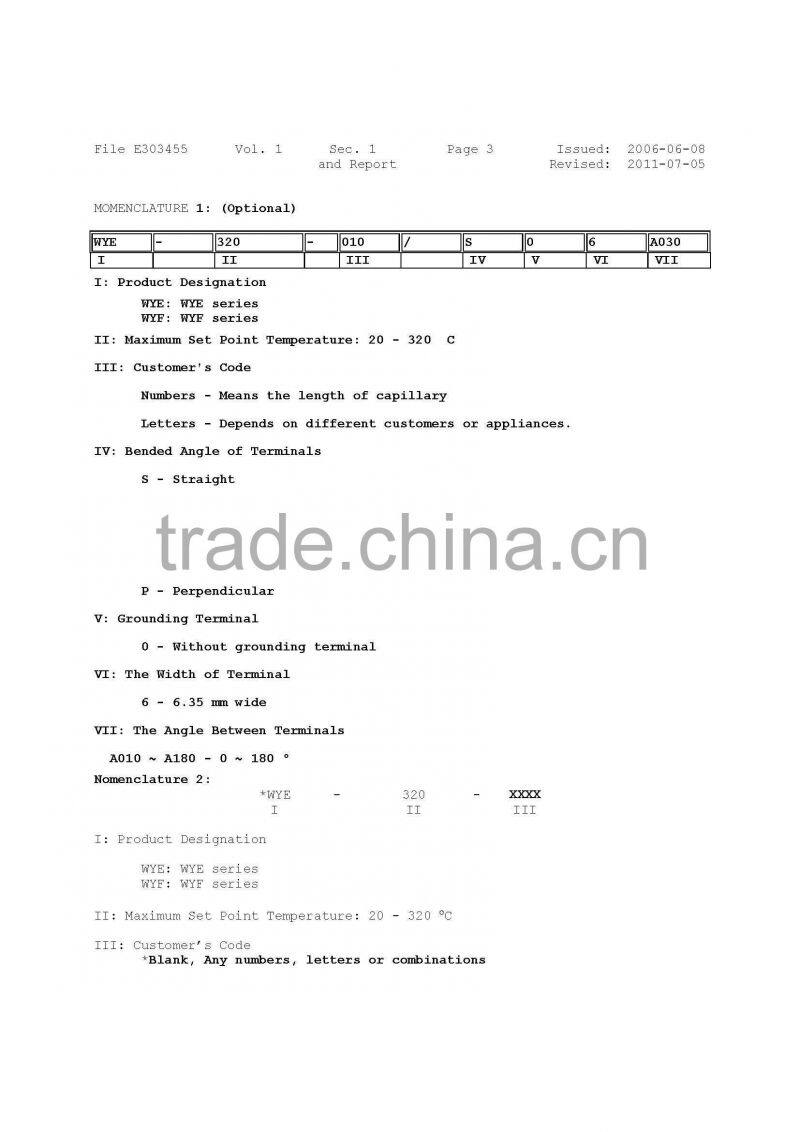

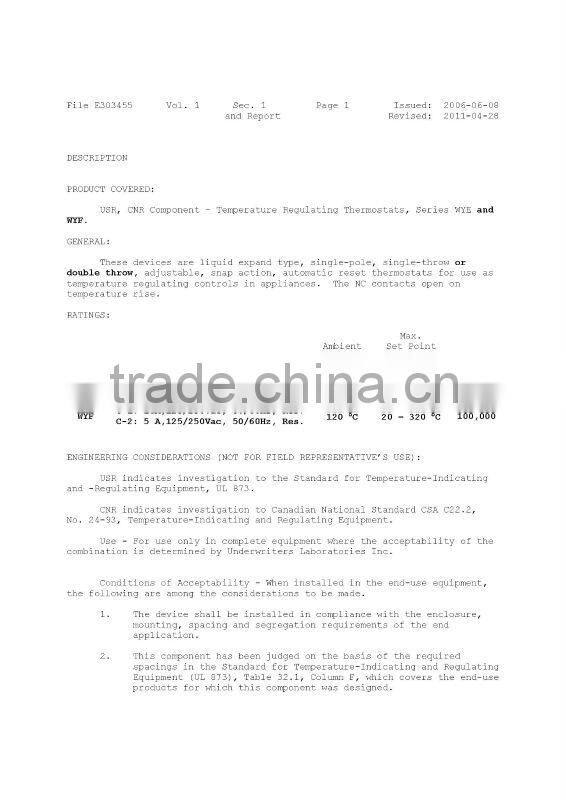

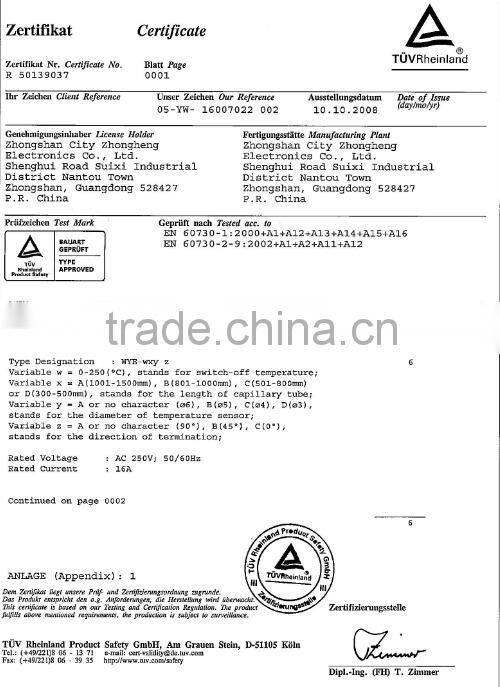

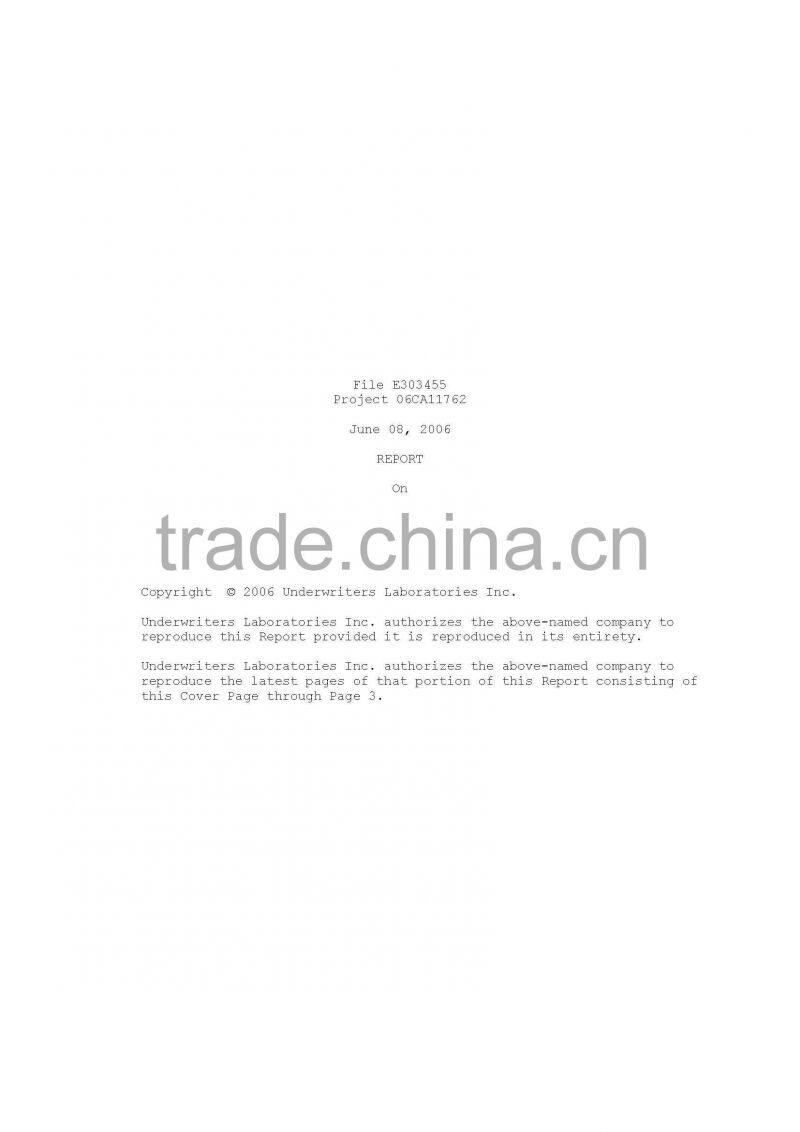

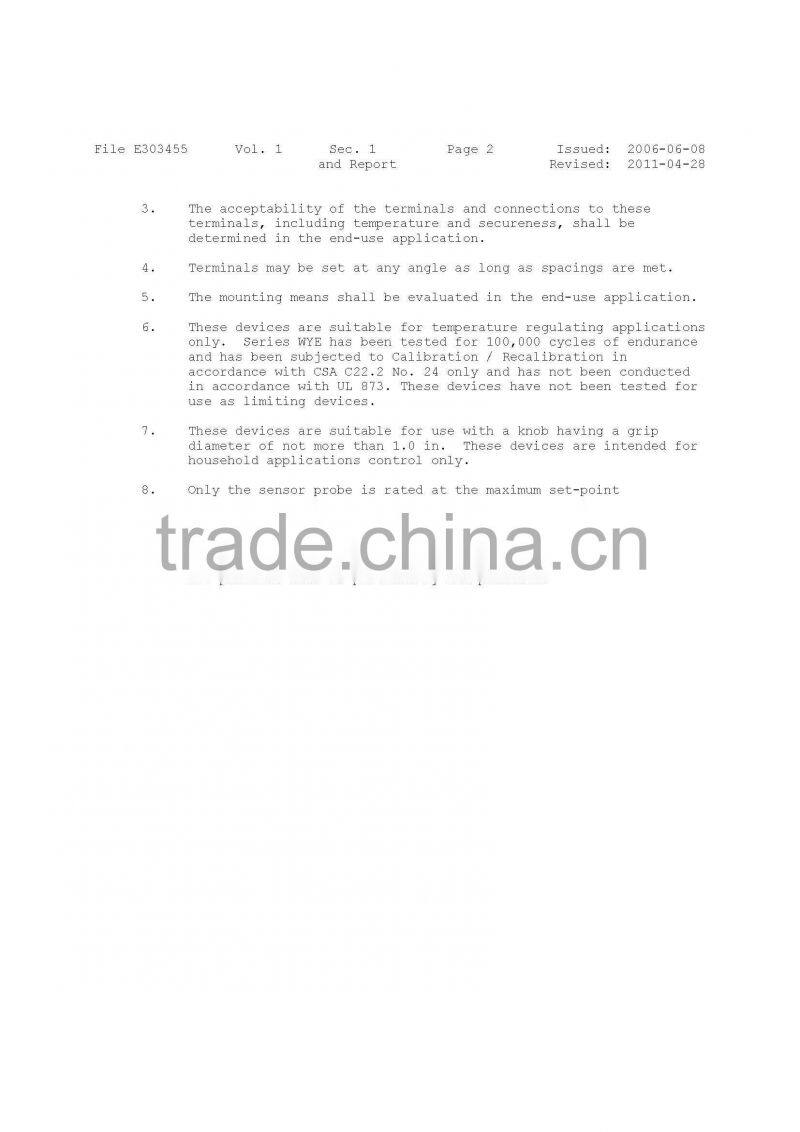

Certificate:
