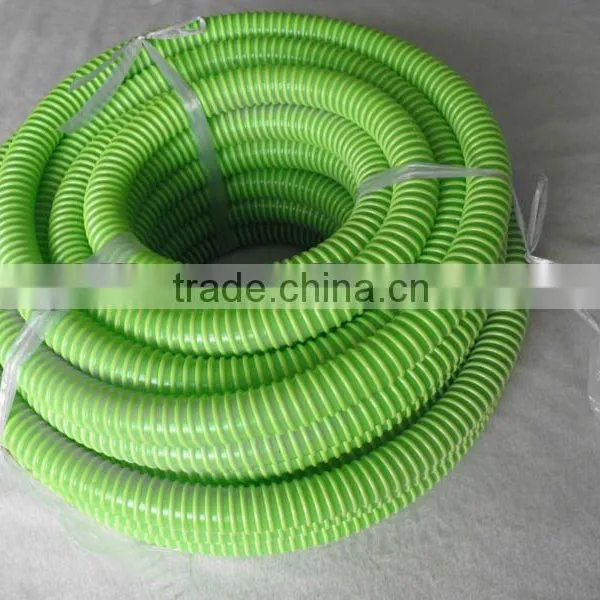

High Quality Plastic Flexible Corrugated Hose
- 100000 Meter / Meters per Month
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FEIHU/OEM | |
| Model Number | 5091 | Material | PVC | |
| Specification | 50mm~202mm | Length | 10m,20m or as request | |
| Thickness | as requirement | Standard | DIN |
Product Description
PVC RIB PIPE:
Materials:
Wire helix with pure white PVC film wall
Features:
1 Highly flexible and compressible: rate 10:1
2 Excellent chemical resistance
3 Temperature range: -15°C ~+80°C
4 Colors optional : white or other colors
ID | OD(mm) | WaLL(mm) | Working pressure (Mpa) | Burst pressure (Mpa) | Length(m) | |
Inch | mm | |||||
1/4" | 6 | 11 | 2.5 | 0.7 | 2.1 | 100 |
5/6" | 8 | 14 | 3.0 | 0.7 | 2.1 | 100 |
3/8" | 9 | 15 | 3.0 | 0.7 | 2.1 | 100 |
1/2" | 12 | 18 | 3.0 | 0.6 | 1.8 | 100 |
5/8" | 15 |
| 3.5 | 0.6 | 1.8 | 100 |
3/4" | 19 | 26 | 3.5 | 0.6 | 1.8 | 50 |
1" | 25 | 33 | 4.0 | 0.6 | 1.8 | 50 |
1-1/4" | 32 | 41 | 4.5 | 0.5 | 1.5 | 40 |
1-1/2" | 38 | 48 | 5.0 | 0.5 | 1.5 | 40 |
2" | 50 | 62 | 6.0 | 0.5 | 1.5 | 40 |
2-1/2" | 63 | 80 | 8.5 | 0.4 | 1.2 | 30 |
3" | 75 | 92 | 8.5 | 0.4 | 1.2 | 30 |
3-1/2" | 89 | 107 | 9.0 | 0.4 | 1.2 | 30 |
4" | 102 | 120 | 9.0 | 0.3 | 0.8 | 30 |
5" | 127 | 141 | 7.0 | 0.2 | 0.6 | 20 |
6" | 152 | 166 | 7.0 | 0.2 | 0.6 | 20 |
Applications:
1 Ideal as dryer vent hose for kitchen, bathroom, drying machines
2 HVAC and exhaust Systems
3 Tumble dryer ventilation hose
Fittings:
Clamps and other moulded plastic fittings are also available.
