Home > Products > Roof Tile Roll Forming Machine > Quality Assurance Roofing Panel Roll Forming Machine
Quality Assurance Roofing Panel Roll Forming Machine
- 10 Set / Sets per Month
- Shanghai China
- T/T
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Zhongyuan | Model Number: | ZYYX |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

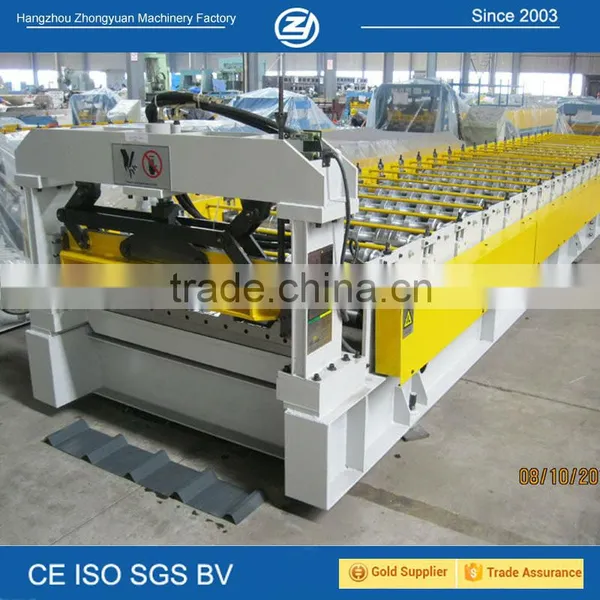

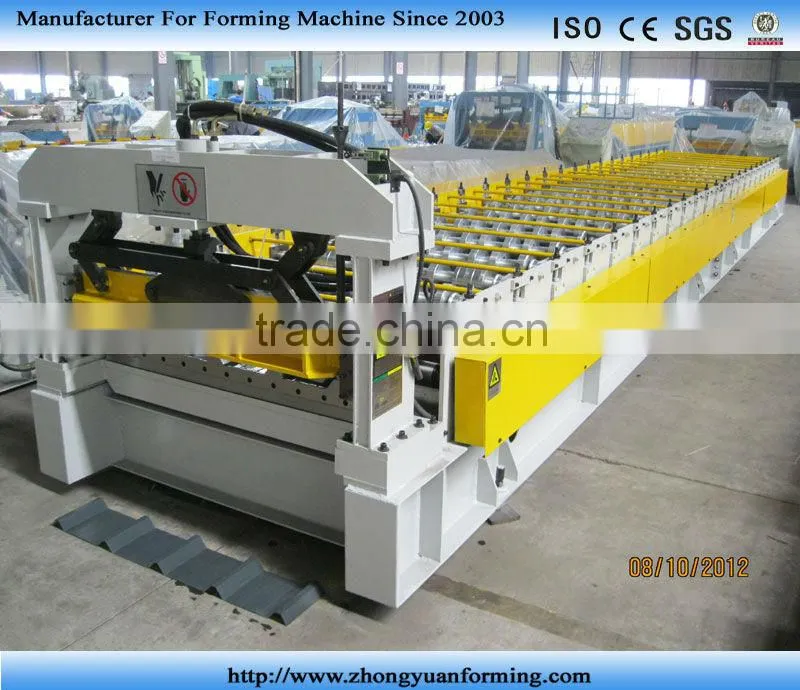

Quality Assurance Roofing Panel Roll Forming Machine
A good design makes machine performs outstanding.
We have 15 year experience R&D devoted to design your machine.
Certificate: ISO; CE
PLC Controller
The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
We choose Mitsubishi from Japan as the controller of our machine.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!
Inside of PLC Controller for reference
roofing panel roll forming machie
1. Technical parameter:
| Item | Specification | |
| Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness (mm) | 0.3-0.7 | |
| Yield strength (mpa) | 235-345 | |
| Forming speed(m/min) | About 20 | |
| Speed adjusting mode | AC Frequency | |
| Cutting mode | Hydraulic cutting | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Main motor power (kw) | 7.5 kw (Depend on final design) | |
| Hydraulic station power | 2.2 kw (Depend on final design) | |
| Total power (kw) | 9.7 kw | |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) | |
| Machine`s size | About 9*1.6*1.4m (Depend on final design) | |
2. Components of roofing panel Roll forming machie :
3. Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
4. Process of rollers and shafts
Rollers and shafts are the critical parts of forming machine. Their process affect machines lifetime and panel profile precision.
What is the main process of our machine rolllers and shafts?

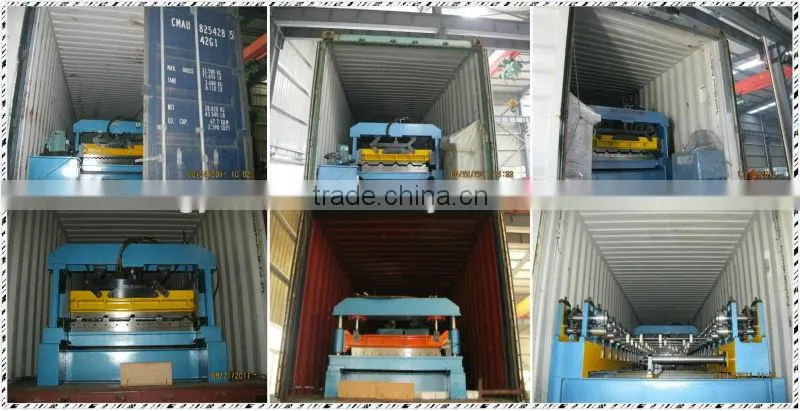

Packing for reference
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this roofing panel roll forming machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
Please feel free to contact us for more information!
