Mobile Hydraulic Concrete Placing Boom for sale

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Tianjin / Ningbo/ Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	DASION	Certification	ISO9001:2008&CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Self-Climbing Hydraulic Concrete Placing Boom

Product Description

Brief Introduction of Mobile Hydraulic Concrete Placing Boom

Mobile hydraulic concrete placing boom with "Z" shaped three sections folding arm, 360 ° rotation, which can achieve full-casting within the boom length to three-dimensional space, can easily achieve the various concrete pouring to wall, pipes, columns, piles etc. It is of high reliability, efficiency and convenience, which could be working together with concrete pump for concrete pumping and placing in construction projects.

Features of Mobile Hydraulic Concrete Placing Boom

1. It can be placed in suitable places required without being fixed.
2. It features compact structure, lightweight and can be lifer as a whole by crane.
3. With excellent maneuverability, it can meet the requirements for concrete placement on different job sites, and it is ideas for concrete pimping and placing,
4. Easy operation, reliable safety and economical purchase.

Technique Parameter

Item	Unit	Models and parameter
		HGY13	HGY15	HGY17	HGY18
Max. placing radius	m	13	15	17	18
Big arm length	m	3.7	6	6.66	7.66
Big arm elevation	°	-2~84.4	0~70	0~65	0~65
Medium arm length	m	4.52	5	5.73	5.73
Medium arm elevation	°	0~180	0~180	0~180	0~180
Small arm length	m	4.78	4	4.61	4.61
Small arm elevation	°	0~180	0~180	0~180	0~180
Hose length	m	3	3	3	3
Concrete delivery pipe	mm	ø125×6	ø 125×6	ø 125×6	ø 125×6
Tail rotary radius	m	2.72	2.81	3.51	3.93
Total power	Kw	4	4	5.5/7.5	5.5/7.5
System pressure	Mpa	24	24	24	24
Rotary speed	r/min	0.3—0.8	0.3—0.8	0.3—0.8	0.3—0.8
Rotary range	°	0~360	0~360	0~360	0~360
Supporting legs span	m	3.15×3.15	4×4	4.6×4.6	5×5
Overall height	m	2.9	2.6	3.2	3.75
Outline Dimension	m	6.63.12.1
Bare machine weight	kg	2700	3230	5000	6700
Balance weight	kg	2×900	2×1100	2200	2×1100
Control mode	kg	Panel/ Wireless remote control	Panel/ Wireless remote control	Panel/ Wireless remote control	Panel/ Wireless remote control

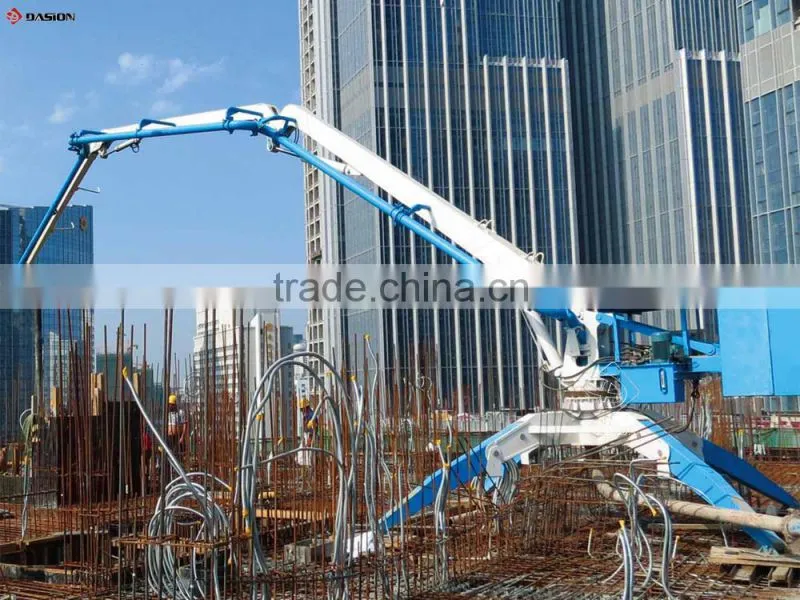

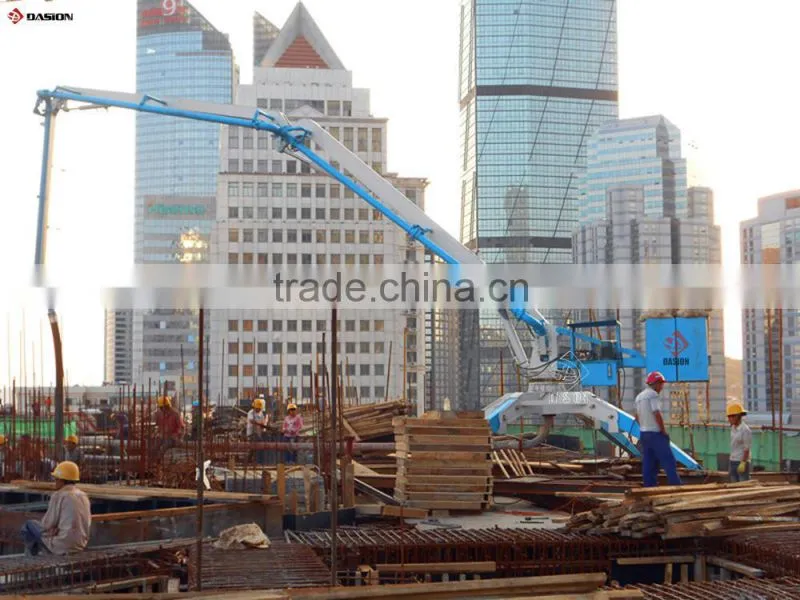

Detailed Picture
