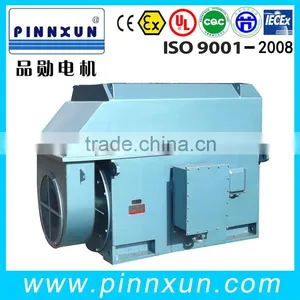

Antique contemporary YPKK lv vfd motor
- 400 Set / Sets per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
Brand Name | pinnxun | Model Number | YPKK | |
Type | Induction Motor | Frequency | 50hz | |
Output Power | 160kw-6000kw | Protect Feature | Totally Enclosed | |
Phase | Three-phase | Certification | CCC, CE, ROHS, UL, VDE | |
AC Voltage | Other, 3.3KV 6.6KV 10KV 11KV 13.8KV | Place of Origin | Shanghai, China | |
Efficiency | IE 1 |
Product Description
Specifications
YPKK lv vfd motorcapacity:75Kw-7500Kw
voltage:380V 660v 3kv 6kv 10kv
Standard IEC and CE
ball mill,steel
Antique contemporary YPKK lv vfd motor
YPKK lv vfd motor Specifications
Box structure desigh
variable frequency high-voltage three-phase160kw-10000kwhigh efficiency,low noisegood quality ,good performanceISO9001-2008
YPKK lv vfd motor Introduction
YPKK series (6KV, 10KV) variable frequency high-voltage three-phase asynchronous motor (frame size 355-1000) is my company ninety's latest products, is my company in the introduction of foreign high voltage motor manufacturing technology, products combined with the company's long-term stable production of high-voltage three-phase asynchronous motor manufacturing experience and the optimization.
1.We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11
2.Our Professional Team(Management,R&D Dep,Eengineer Dep,Sales,Produce,Office)
3.Certification To Guarantee We are Good In Quality
4.Our Mainly Products(LV and HV Motor for General equipments)
This series of products using ninety's new technology, new material, new technology, fine material, fine workmanship, has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and repair.
This series motors conform to the national standard GB755 "rotary motor ratings and performance", the industry standard JB/T7593 "Y series high voltage three phase asynchronous motors technical conditions (machine code 355-630)," JB/T10315.1 "YKS, YKS-W, YQF series high voltage three phase asynchronous motor (frame size 355-1000) technical conditions", JB/T10315.2 "YKK, YKK-W series high voltage three phase asynchronous electric motor technology conditions (frame size 355-100
0) ", IEC international standard, each component of the mechanical dimensions and tolerances in accordance with relevant national and international standards.
This series motor shell protection class is IP23, IP44 and IP54, IP55, IC01, IC611, cooling method and IC81W, installation of IMB3, can also be made according to user requirements in the corresponding protective type, cooling and installation ways.
This series motors can also be made into wet tropical type, dry tropical type, outdoor and outdoor medium corrosion proof and outdoor wet tropical.
This series motors can be used to drive a variety of general machinery, such as compressors, pumps, crushing machine, cutting machine, transport machinery and other mechanical equipment, used as prime mover in mining, machinery industry, petroleum chemical industry, power plants and other industrial and mining enterprises.
Two, the description of the structure
The series motor adopts box type structure of international popular, frame, end cover and other parts welded by steel plate, light weight, good rigidity, remove the top cover or cooling
Device, the internal observation or contact with the motor, convenient installation and repair.
Y series as the basic series, protection class IP23, then add some parts can be conveniently derived from different methods of cooling and protection mode of production
Goods.
Junction box for sealing structure, protection class is IP54 or IP55, generally installed in the motor on the right (from the shaft end), according to the needs of the user can also be arranged on the left
Side, box into the wire hole toward the bottom, inside and outside the box were grounded single terminal.
The stator adopts hanging, slide, press in three kinds of external pressure structure, stator winding with class F insulation materials, the use of VPI vacuum pressure impregnation technology, using magnetic slot wedge, end fixed and binding measures and reliable, excellent insulating performance and reliable, high mechanical strength, moisture resistance, make the motor run safe and reliable.
The squirrel cage rotor structure, the high accuracy dynamic balance, the motor running smoothly, small vibration, motor with a cylindrical shaft extension, can also be based on user needs to be made into a biaxial extension.
According to the motor power and speed, rolling bearing and sliding bearing two, bearing equipped with non - stop injection, oil discharge device, the motor can be realized under the condition of continuous operation, regular grease to maintenance, maintenance of motor.
Sliding bearing for end cap type spherical plain bearing, the pressure oil or oil ring self lubrication lubrication composite type, at the same time taken to prevent the shaft current measures.
Three, the use of conditions
The ambient air temperature: -15 °C ~+40 °C
Altitude: not more than 1000 meters
Business: S1
Environmental conditions: Touchi, outdoor (W), wet tropical (TH), outdoor wet tropical (THW).
YPKK lv vfd motor Model Explanation | |
YPKK lv vfd motor Motor Performance | |
Power range:160kw-6000kw Frame Size:355-1000mm Rated Voltage: 3.3KV 6.6KV 10KV 11KV 13.8KV Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm Protection Class: IP44 IP54 IP55 Cooling type;IC611 IC616 Ambient Temperature: -15°C~40°C Altitude: not exceed 1000 Meter Rated Frequency: 50Hz/60Hz Insulation Class: F Temprature rise: B Working Duty: S1(Continuous)
|

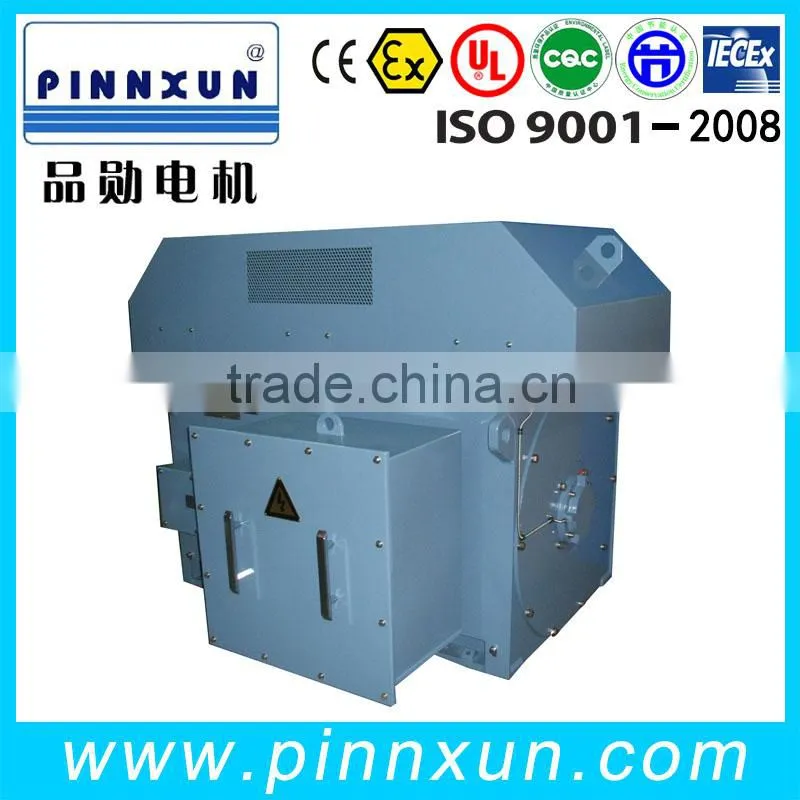

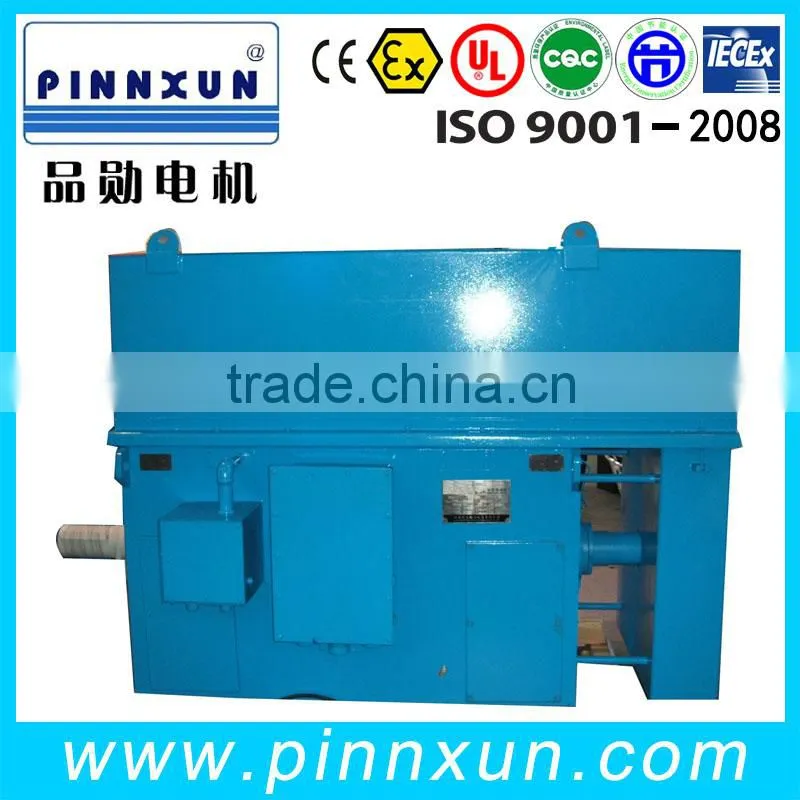

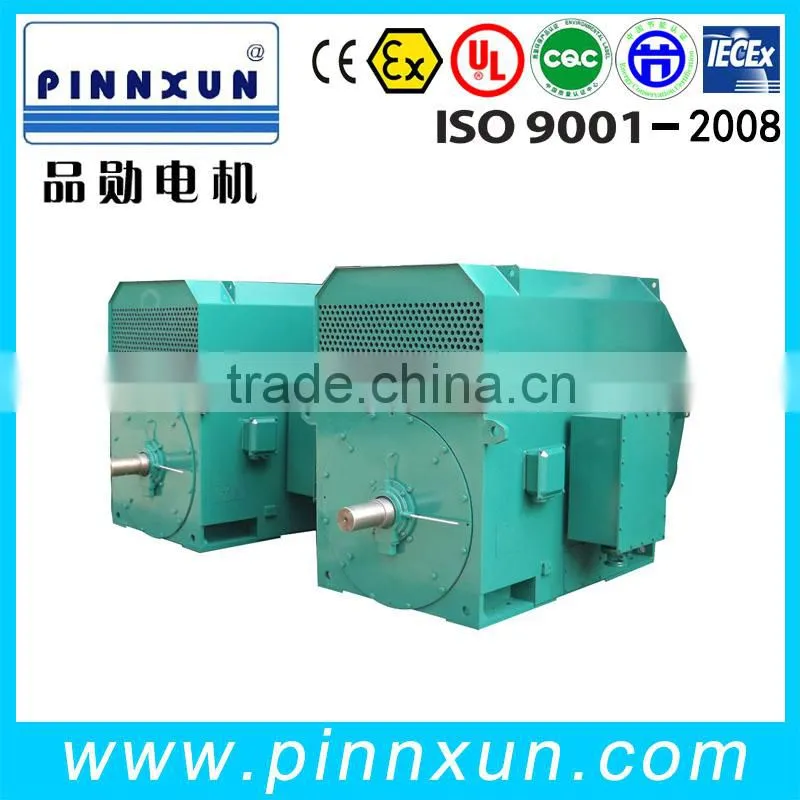

YPKK lv vfd motor Pictures
Ordering Informations | |
1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor. 2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department . 3.The catalogue is only fpr reference,and there may be variations. 4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately. |
5.Mainly Produce Process(Punching,Winding,VPI Process,Balance,Assembly,Test)
6.Strong Package Ensure Motor safe enough for Ship or Truck Transportation.
7.Cargo,cantainer,shipment specification to ensure we are more professional.
YPKK lv vfd motor
