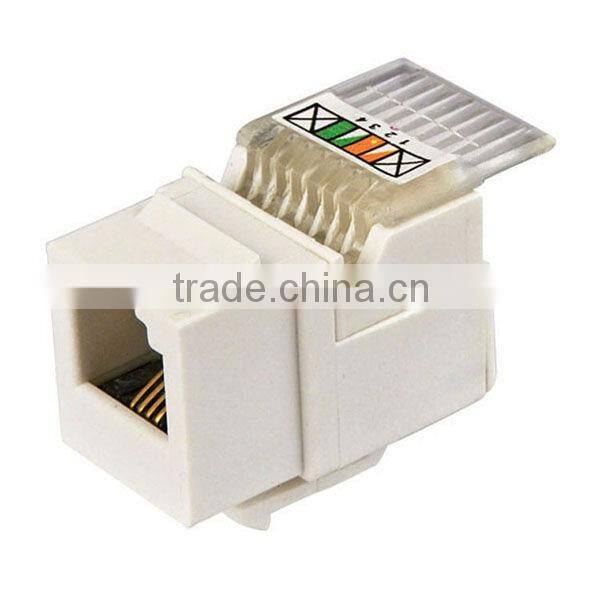

Cat.5e RJ45 Keystone Jack
*Tooless Type
A:Cat.5e RJ45
B: RJ11
According to UL 1863
Current rating: 1.5 Amp Max
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 90 Degree
Termination: 110 Type
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.
